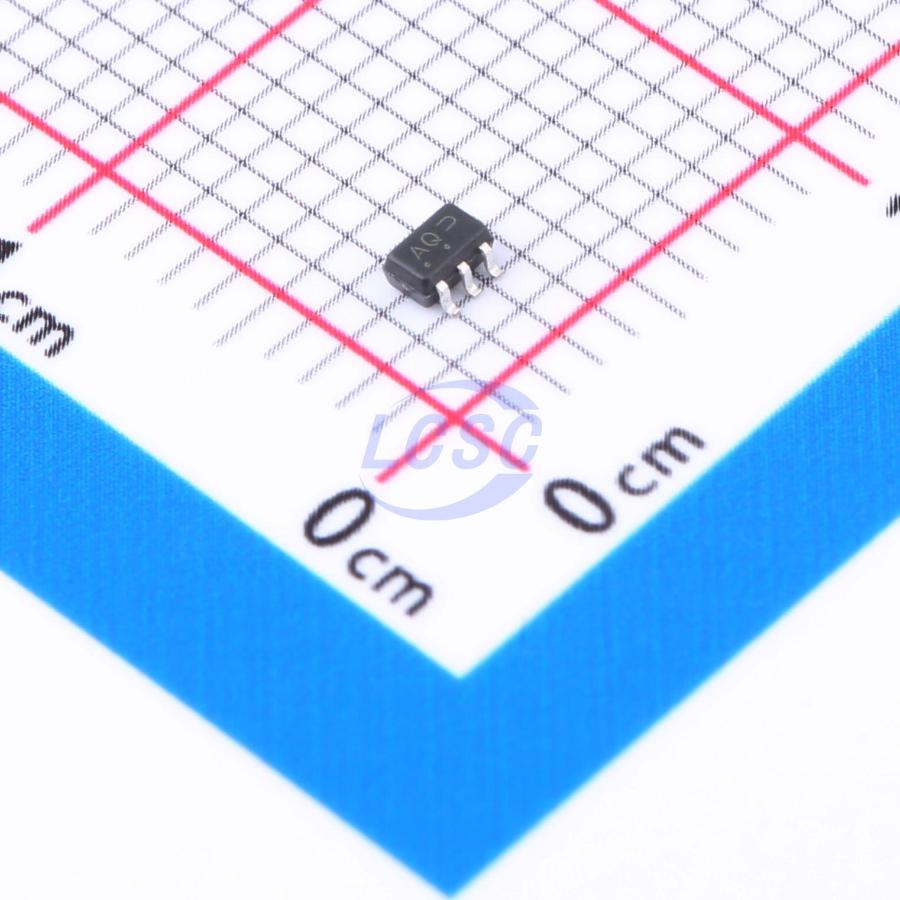

NL17SG07DFT2G
0.9V~3.6V 1 1 2.5ns@3V,15pF SC-88A-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-88A-5ROHS3 CompliantActive
Buffer with Open Drain Output
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SG07DFT2G
- Store part #
- C893393
- Package / case
- SC-88A-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,165 in stock
#C893393
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.81 | ₹69.05 |
| 50+ | ₹11.05 | ₹552.50 |
| 150+ | ₹9.66 | ₹1,449.00 |
| 500+ | ₹8.61 | ₹4,305.00 |
| 3,000+ | ₹7.78 | ₹23,340.00 |
| 6,000+ | ₹7.37 | ₹44,220.00 |
5 × ₹13.81
₹69.05
excl. GST
₹81.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SG07DFT2G
₹69.05 for 5 + GST
Specifications
- Voltage - Supply
- 0.9V~3.6V
- Current - Output Low(IOL)
- 8mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -55℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.5ns@3V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The NL17SG07 MiniGate is an advanced high−speed CMOS Buffer with Open Drain Output in ultra−small footprint. The NL17SG07 input structures provides protection when voltages up to 5.5 V are applied with VCC greater than or equal to 0.9 volts, otherwise the protection is up to 4.6 volts regardless of the supply voltage.
Key features
- Wide Operating VCC Range: 0.9 V to 3.6 V
- High Speed: tpD = 2.5 ns (Typ) at VCC = 3.0 V, CL = 15 pF
- Low Power Dissipation: ICC = 0.5 μA (Max) at TA = 25 °C
- 5.5 V Overvoltage Tolerant (OVT) Input Pins (VCC ≥ 0.9 V)
- Ultra−Small Packages
- These are Pb−Free and Halide−Free Devices
