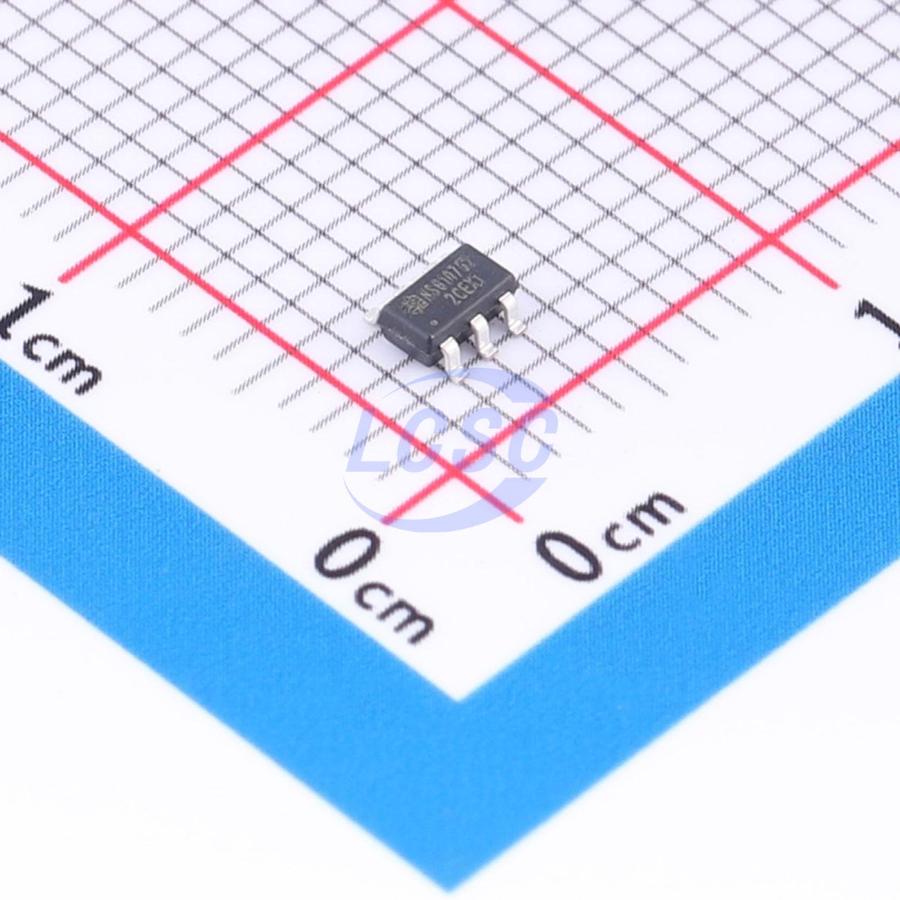

NSG10752
10V~20V 600mA 290mA SOT-23-6 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG10752
- Store part #
- C53463331
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,136 in stock
#C53463331
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.89 | ₹136.89 |
| 10+ | ₹108.21 | ₹1,082.10 |
| 30+ | ₹93.66 | ₹2,809.80 |
| 100+ | ₹79.53 | ₹7,953.00 |
| 500+ | ₹71.06 | ₹35,530.00 |
| 1,000+ | ₹66.49 | ₹66,490.00 |
1 × ₹136.89
₹136.89
excl. GST
₹161.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG10752
₹136.89 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.061 g
Overview
The NSG10752 is a high-voltage, high-speed power MOSFET high-side gate driver IC. Fabricated using a high-low voltage compatible process, it integrates the high-side gate drive circuit on a single chip. The logic input is compatible with CMOS or LSTTL logic output levels as low as 3.3V, and the output features high-current pulse capability. The floating channel supports driving high-side N-channel power MOSFETs, with a maximum floating supply voltage of 100V. An integrated bootstrap diode charges the high-side supply, simplifying the external circuit. Offered in a SOT23-6 package, it operates over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- Air Conditioner / Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Floating-channel bootstrap operation
- Maximum operating voltage up to +100V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 10V to 20V
- Integrated UVLO circuit
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Turn-on/turn-off propagation delay Ton/Toff = 130ns/130ns
- Delay matching time less than 50ns
- Wide temperature range -40℃ to 125℃
- Output source/sink current capability 290mA/600mA
- Integrated bootstrap diode (60Ω)
- RoHS compliant
- SOT23-6 package
