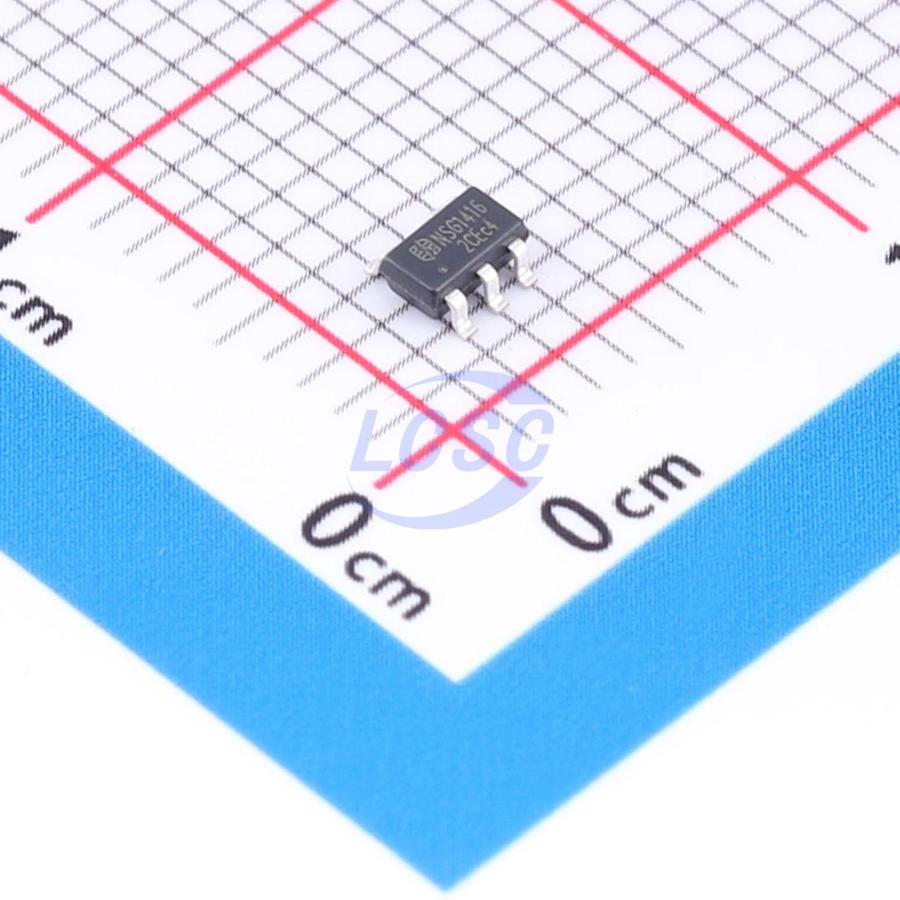

NSG1416
4.5V~25V 2A 2A SOT-23-5 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG1416
- Store part #
- C53436462
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,205 in stock
#C53436462
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹58.33 | ₹291.65 |
| 50+ | ₹44.89 | ₹2,244.50 |
| 150+ | ₹39.03 | ₹5,854.50 |
| 500+ | ₹31.88 | ₹15,940.00 |
| 3,000+ | ₹28.63 | ₹85,890.00 |
| 6,000+ | ₹26.67 | ₹1,60,020.00 |
5 × ₹58.33
₹291.65
excl. GST
₹344.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG1416
₹291.65 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Quiescent Current
- 500uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 4.5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
The NSG1415/6(R) is a low-voltage power MOSFET and IGBT non-inverting/inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated architecture. The NSG1415/6(R) logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VDD range, UVLO with hysteresis, and output current buffer stage. Operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies, switching converters
- General-purpose gate drivers
- Driving MOSFETs and IGBTs
Key features
- In-phase and inverting output options
- Compatible with 3.3V and 5V input logic
- Operating range: 4.5V~25V
- High capacitive load drive capability: switching time <100ns at 1nF load
- Wide temperature range: -40℃~125℃
- Undervoltage lockout
- Turn-on/turn-off propagation delay: Ton/Toff = 25ns/25ns
- Drive current capability: source/sink = 2A/2A
- RoHS compliant
- SOT23-5 package
