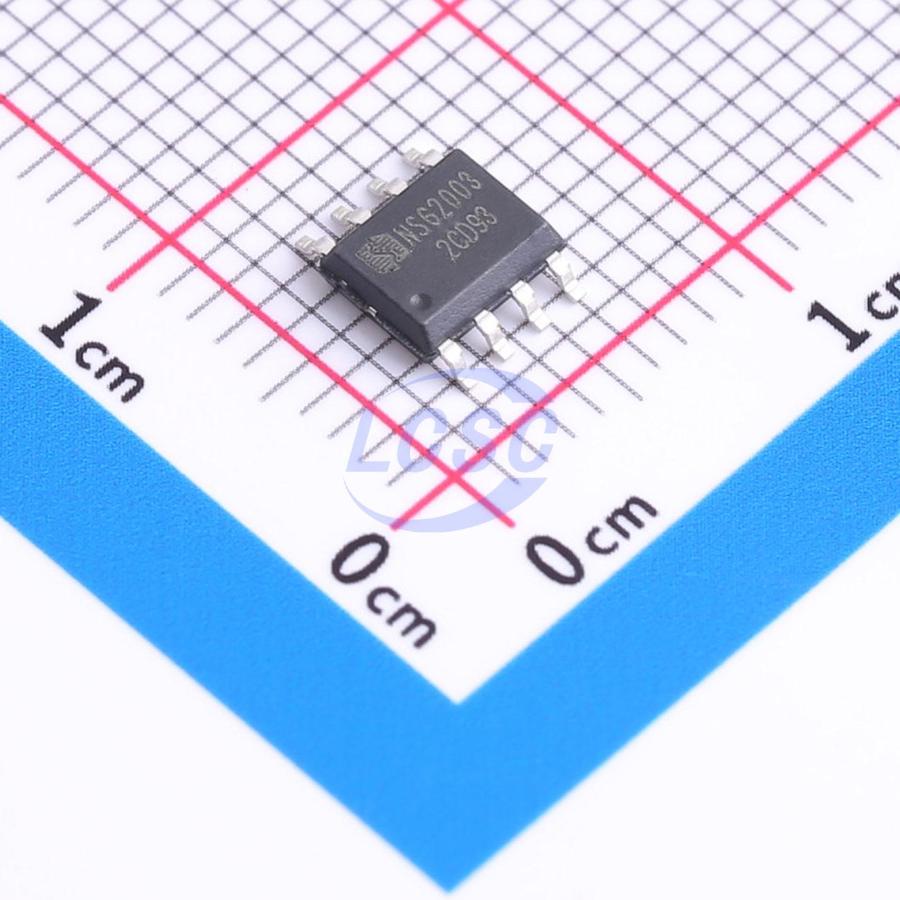

NSG2003

The NSG2003 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. Using a high- and low-voltage compatible process, both high-side and low-side gate drive circuits are integrated on a single chip. Logic inputs are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The outputs provide high-current pulse capability with shoot-through prevention dead-time logic. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply voltage of 250V. An integrated bootstrap diode charges the high-side supply, simplifying the peripheral circuit design. Offered in an SOP8 package, operable over a temperature range of -40°C to 125°C.

Applications

• Motor Control
• Air Conditioner/Washing Machine
• General-Purpose Inverter
• Micro Inverter Drive

Key features

• Bootstrap-operated floating supply channel
• Maximum operating voltage +250V
• Compatible with 3.3V, 5V, and 15V input logic
• dVs/dt immunity up to ±50V/ns
• Vs negative bias capability down to -9V
• Gate drive voltage range 10V to 20V
• Cross-conduction prevention dead-time logic
• Dead time set at 520ns
• Propagation delay characteristics
• Turn-on/turn-off propagation delay Ton/Toff = 680ns/150ns
• Delay matching time 30ns
• Wide temperature range -40°C~125°C
• Output stage source/sink current capability 290mA/600mA
• Integrated bootstrap diode
• RoHS compliant
• SOP8 (S)
