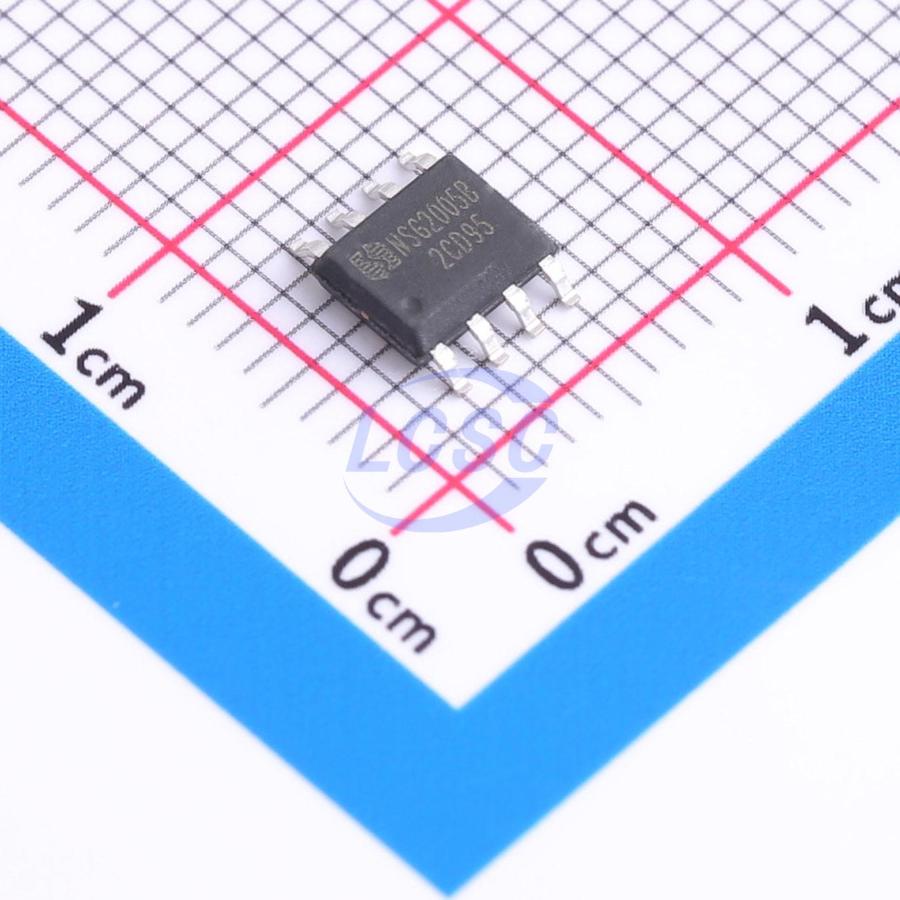

NSG2005B

The NSG2005B is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. Utilizing a high-voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip. The logic input levels are compatible with CMOS or LSTTL logic outputs as low as 3.3V, and the outputs feature high-current pulse capability. The floating channel can be used to drive high-side N-channel power MOSFETs, with a maximum floating supply voltage of 250V. An integrated bootstrap diode charges the high-side supply, simplifying the peripheral circuit. Packaged in SOP8, it operates over a temperature range of -40°C to 125°C.

Applications

• Motor Control
• Air Conditioner/Washing Machine
• General-Purpose Inverter
• Micro Inverter Drive

Key features

• Bootstrap floating channel maximum operating voltage +250V
• Compatible with 3.3V, 5V, and 15V input logic
• dVs/dt immunity up to ±50V/ns
• Vs negative bias capability down to -9V
• Gate drive voltage range 10V to 20V
• Cross-conduction prevention dead-time logic, dead time set at 100ns
• Integrated UVLO circuit, UVLO positive threshold 8.9V, UVLO negative threshold 8.2V
• Propagation delay characteristics: turn-on/turn-off propagation delay Ton/Toff = 150ns/150ns, delay matching less than 60ns
• Wide temperature range -40°C to 125°C
• Output stage source/sink current capability 290mA/600mA
• Integrated bootstrap diode
• RoHS compliant
• SOP8 (S)
