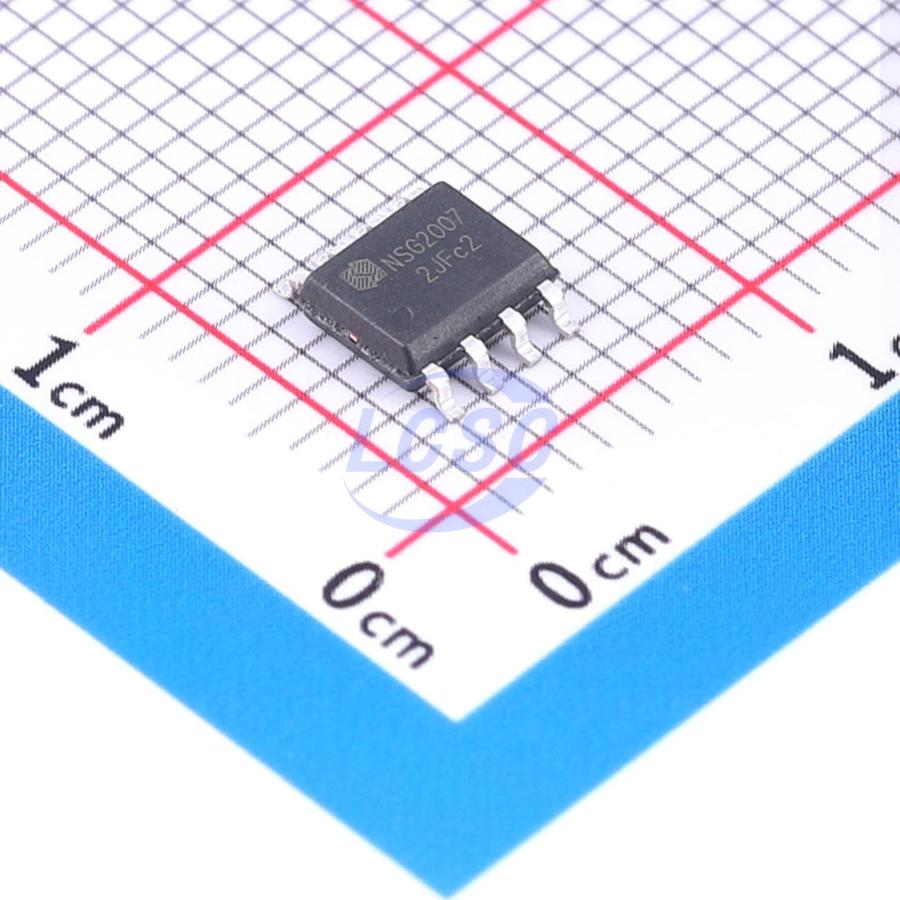

NSG2007
10V~20V 600mA 290mA SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2007
- Store part #
- C53436215
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C53436215
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.00 | ₹165.00 |
| 50+ | ₹26.49 | ₹1,324.50 |
| 150+ | ₹23.69 | ₹3,553.50 |
| 500+ | ₹20.23 | ₹10,115.00 |
| 2,500+ | ₹18.68 | ₹46,700.00 |
| 4,000+ | ₹17.74 | ₹70,960.00 |
5 × ₹33.00
₹165.00
excl. GST
₹194.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2007
₹165.00 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 160ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 300uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.257 g
Overview
The NSG2007 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC featuring independent high-side and low-side referenced output channels. Fabricated using a high-voltage compatible process, it integrates both high-side and low-side gate drive circuits on a single chip. The logic inputs are compatible with CMOS or LSTTL logic output levels as low as 3.3V, and the outputs feature high-current pulse capability with shoot-through prevention dead-band logic. The floating channel supports driving high-side N-channel power MOSFETs, with a maximum floating supply voltage of 250V. An integrated bootstrap diode charges the high-side supply, simplifying the peripheral circuit design. Available in SOP8 package, operating over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- Air Conditioner / Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Bootstrap-operated floating high-side channel
- Maximum operating voltage +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 10V to 20V
- Integrated UVLO circuit
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Cross-conduction prevention dead-time logic
- Dead time 520ns
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 160ns/150ns
- Delay matching 30ns
- Wide temperature range -40℃ to 125℃
- Output source/sink current capability 290mA/600mA
- Integrated bootstrap diode
- RoHS-compliant SOP8 (S) package
