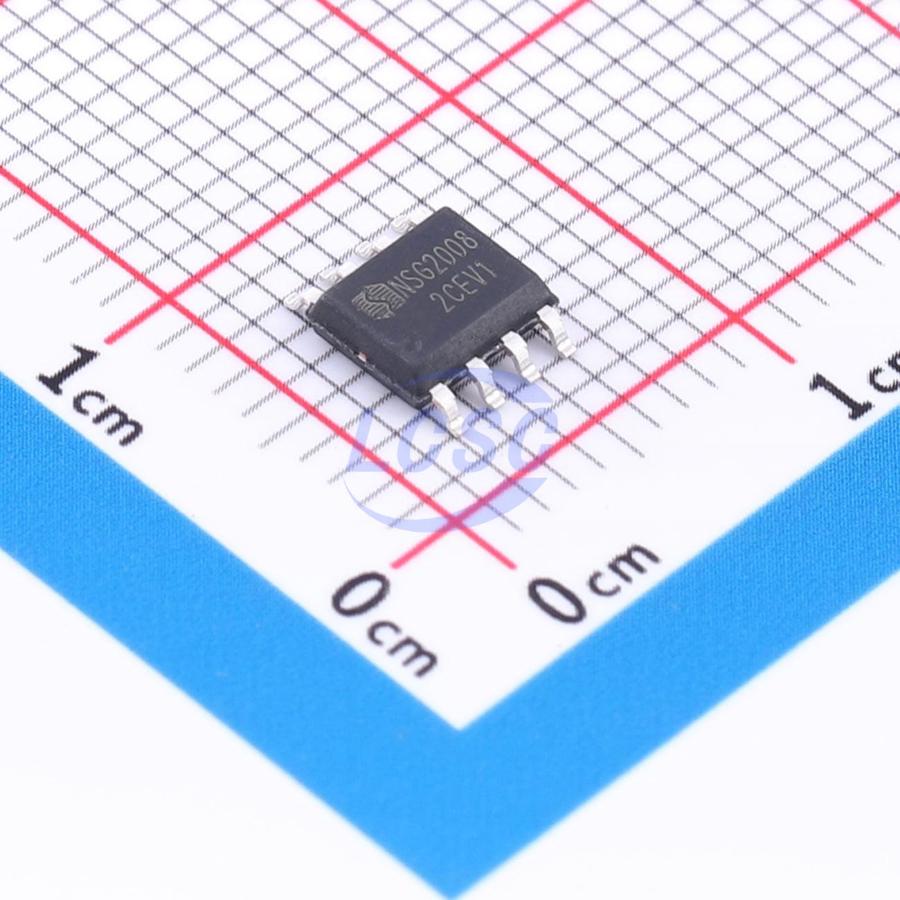

NSG2008
10V~20V 600mA 290mA SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2008
- Store part #
- C53463326
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,795 in stock
#C53463326
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.61 | ₹93.05 |
| 50+ | ₹18.24 | ₹912.00 |
| 150+ | ₹17.99 | ₹2,698.50 |
| 500+ | ₹17.74 | ₹8,870.00 |
5 × ₹18.61
₹93.05
excl. GST
₹109.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2008
₹93.05 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 300uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.359 g
Overview
The NSG2008 is a high-voltage, high-speed power MOSFET high- and low-side driver IC featuring independent high-side and low-side referenced output channels. Fabricated using a high-voltage compatible process, it integrates both high-side and low-side gate drive circuits on a single chip. Logic inputs are compatible with CMOS or LSTTL logic output levels as low as 3.3V, and the outputs feature high-current pulse capability with shoot-through prevention dead-time logic. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply voltage of 250V. An integrated bootstrap diode charges the high-side circuit, simplifying the external peripheral components. Available in SOP8 package, operating over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner / Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Bootstrap-operated floating high-side channel
- Maximum operating voltage up to +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dVS/dt immunity up to ±50V/ns
- VS negative bias capability down to -9V
- Gate drive voltage from 10V to 20V
- Integrated UVLO circuit
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Cross-conduction prevention dead-time logic
- Dead time set at 520ns
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 680ns/150ns
- Delay matching time less than 60ns
- Wide temperature range -40°C ~ 125°C
- Output stage source/sink current capability 290mA/600mA
- Integrated bootstrap diode
- RoHS-compliant SOP8 (S)
