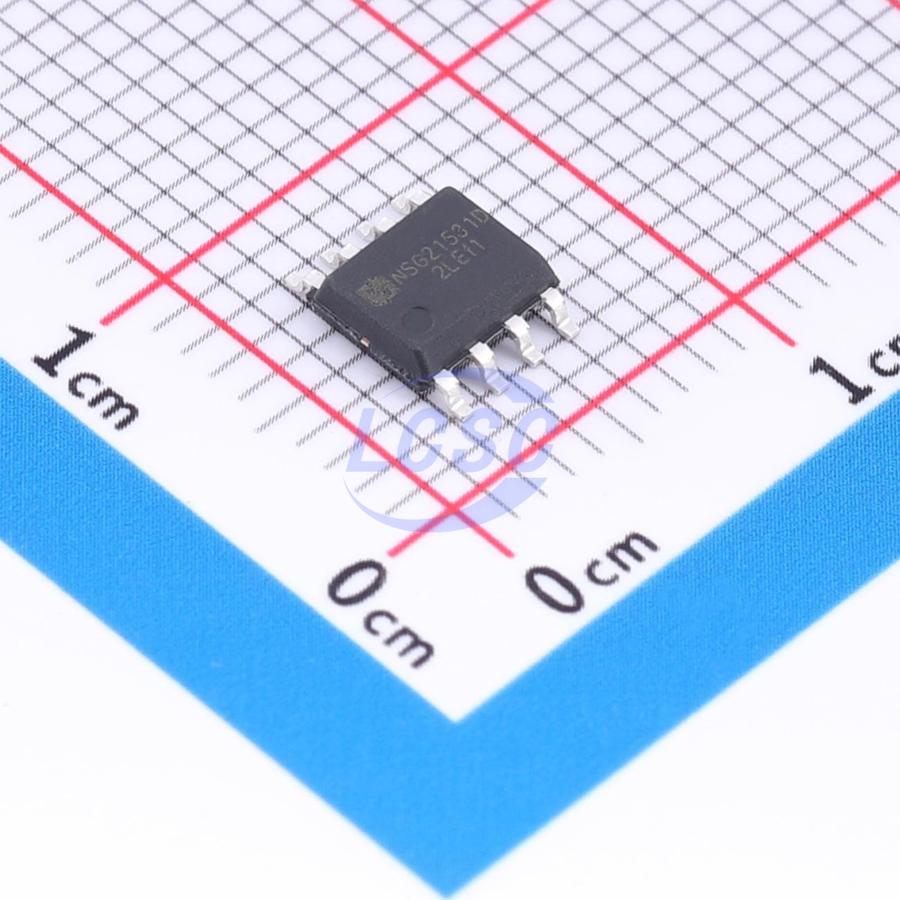

NSG21531D
12.5V~15.6V 1.3A 1A SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG21531D
- Store part #
- C53436477
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,720 in stock
#C53436477
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.01 | ₹108.01 |
| 10+ | ₹88.67 | ₹886.70 |
| 30+ | ₹79.10 | ₹2,373.00 |
| 100+ | ₹69.54 | ₹6,954.00 |
| 500+ | ₹63.89 | ₹31,945.00 |
| 1,000+ | ₹60.84 | ₹60,840.00 |
1 × ₹108.01
₹108.01
excl. GST
₹127.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG21531D
₹108.01 for 1 + GST
Specifications
- Quiescent Current
- 300uA
- Voltage - Supply
- 12.5V~15.6V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.3A
- Rise Time
- 60ns
- Fall Time
- 50ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.404 g
Overview
NSG2153(1)D is a 600V half-bridge gate driver with an integrated 50% duty cycle oscillator, capable of driving N-type MOSFET or IGBT devices. The CT pin of the NSG2153(1)D can simultaneously turn off both the high-side and low-side outputs at low voltage (1/6 Vcc). When the VCC voltage drops below the undervoltage threshold, the NSG2153(1)D pulls the CT pin voltage low and shuts down both the high-side and low-side outputs. The NSG2153(1)D features strong output drive capability, with peak output source/sink current pulses reaching +1.2A/-1.5A. The NSG2153(1)D incorporates built-in dead-time logic to prevent shoot-through in high-side and low-side power MOSFETs or IGBTs. In addition, the NSG2153(1)D integrates a bootstrap diode for high-side bootstrap charging.
Applications
- Motor control & drives
- Robotics & automation
- Power tools
Key features
- Integrated 50% duty cycle oscillator and half-bridge driver
- CT, RT programmable oscillator
- 15.6V zener clamp between Vcc and COM
- Micro-power startup
- CT pin non-latching shutdown (1/6 Vcc)
- Half-bridge floating channel maximum operating voltage: +600V
- dVs/dt immunity up to ±50 V/ns
- Vs negative bias capability: -9V
- Under-voltage lockout (rising/falling):
- VCC: 11/9V
- VBS: 9/8V
- Output source/sink current capability: +1.2A/-1.5A
- Integrated dead time:
- NSG2153D: 1.1μs
- NSG21531D: 0.6μs
- Integrated bootstrap diode
- RoHS compliant
