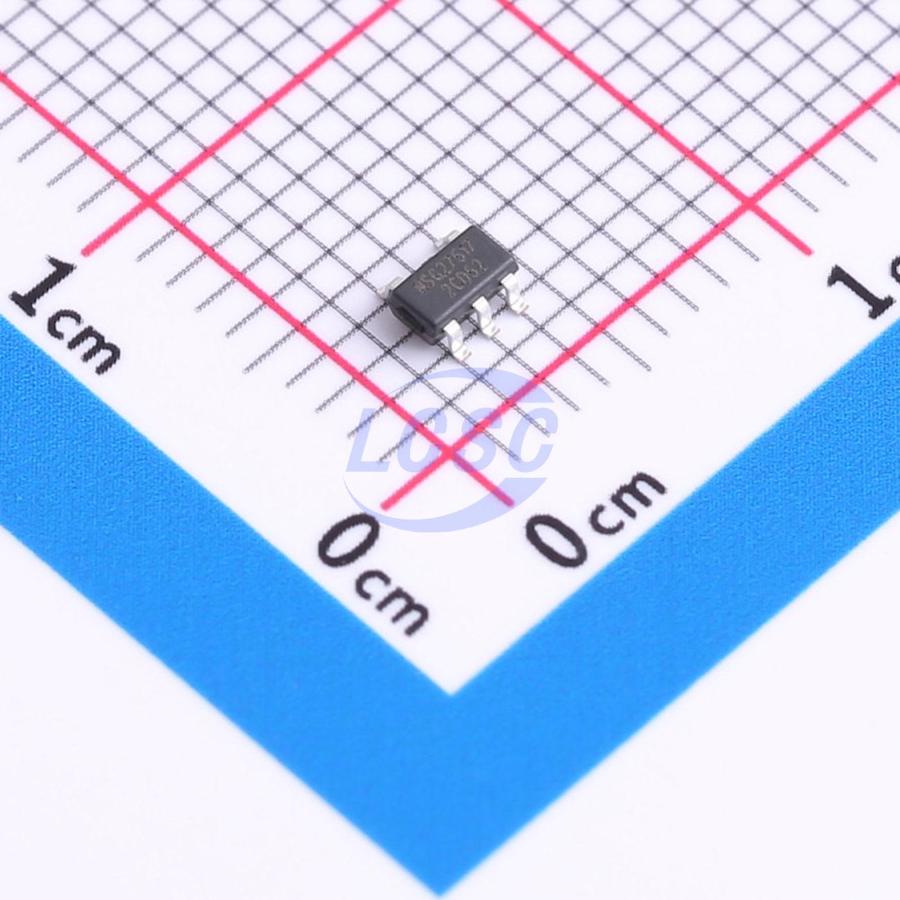

NSG27517
Low Side Gate Driver IC MOSFET IGBT SOT-23-5
Single-channel low-side in-phase gate driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG27517
- Store part #
- C7421046
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C7421046
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.49 | ₹207.45 |
| 50+ | ₹32.52 | ₹1,626.00 |
| 150+ | ₹28.68 | ₹4,302.00 |
| 500+ | ₹23.88 | ₹11,940.00 |
| 3,000+ | ₹21.75 | ₹65,250.00 |
| 6,000+ | ₹20.47 | ₹1,22,820.00 |
5 × ₹41.49
₹207.45
excl. GST
₹244.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG27517
₹207.45 for 5 + GST
Specifications
- Voltage - Supply
- 5V~20V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The NSG27517 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust monolithic architecture. The NSG27517 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operational temperature range: -40°C to 125°C.
Applications
- Switching power supplies
- Universal gate driver for switching converters
- Drives MOSFETs and IGBTs
Key features
- Dual-input design (selectable inverting (IN- pin) or non-inverting (IN+ pin) driver configuration)
- Unused input pins available for enable/disable function
- Compatible with 3.3V input logic
- Operating range: 5V~25V
- Wide temperature range: -40°C~125°C
- Undervoltage lockout
- UVLO rising threshold: 4.0V
- UVLO falling threshold: 3.9V
- Turn-on/turn-off propagation delay characteristics
- Ton/Toff = 30ns/30ns
- Drive current capability
- Source/Sink = 4A/4A
- SOT-23-5 package
