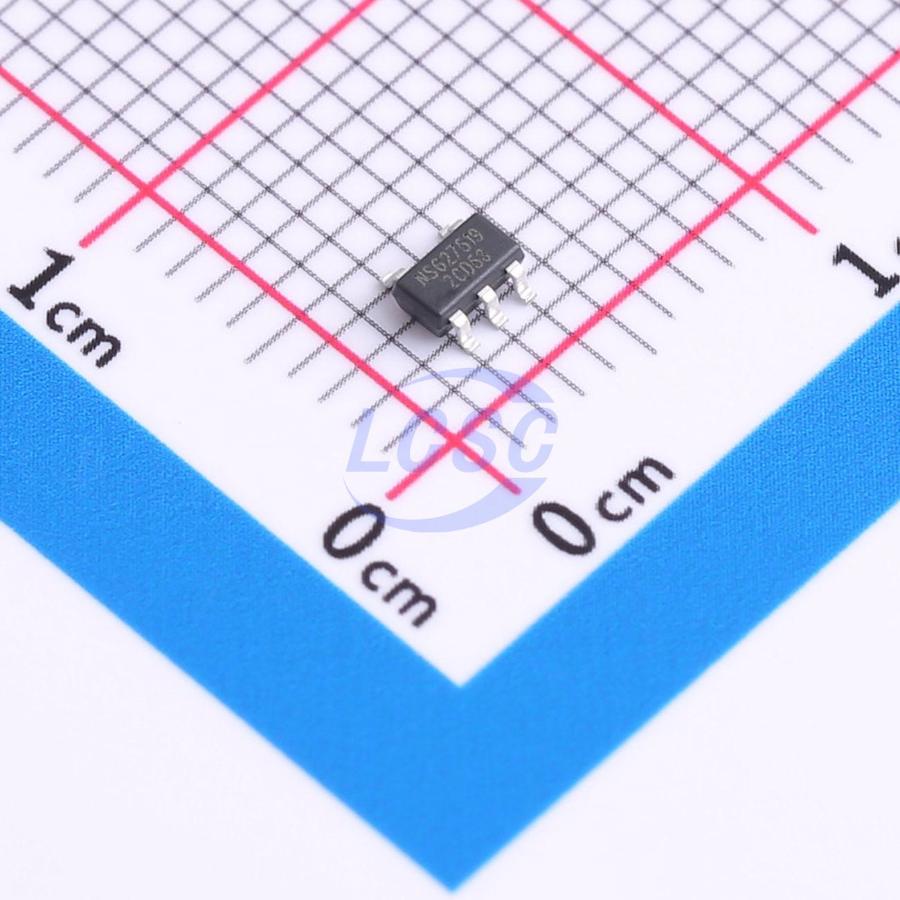

Low Side Gate Driver IC MOSFET IGBT SOT-23-5
NSG27519 4A Single-Channel Low-Side Gate Driver IC with Enable
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG27519
- Store part #
- C41414513
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C41414513
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.99 | ₹209.95 |
| 50+ | ₹32.97 | ₹1,648.50 |
| 150+ | ₹29.11 | ₹4,366.50 |
| 500+ | ₹24.29 | ₹12,145.00 |
| 3,000+ | ₹22.15 | ₹66,450.00 |
| 6,000+ | ₹20.85 | ₹1,25,100.00 |
5 × ₹41.99
₹209.95
excl. GST
₹247.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG27519
₹209.95 for 5 + GST
Specifications
- Quiescent Current
- 280uA
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Fall Time
- 15ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
NSG27519 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated structure. The NSG27519 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VDD range, UVLO with hysteresis, and output current buffer stage. Operable over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies
- Switch-mode converters
- General-purpose gate drivers
- Driving MOSFETs and IGBTs
Key features
- Non-inverting input/output
- Compatible with 3.3V, 5V, 15V input logic
- Input voltage range: -10V~25V
- Output source/sink current: 4A/4A
- Operating range: 5V~25V
- High capacitive load drive capability
- Wide temperature range: -40°C~125°C
- UVLO: positive threshold 4.5V, negative threshold 4.2V
- Turn-on/turn-off propagation delay: Ton/Toff = 25ns/25ns
- RoHS compliant
- SOT23-5 package
