NSG4429

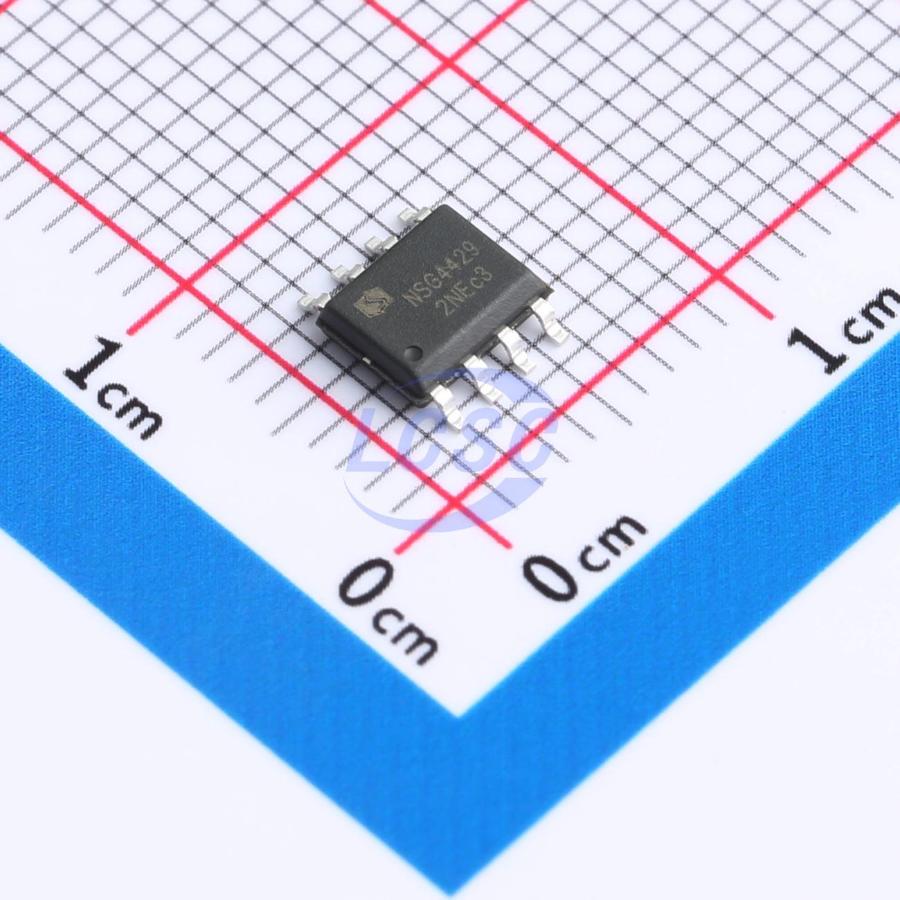

Low Side Gate Driver IC MOSFET IGBT SOP-8
Single-channel low-side inverting gate driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG4429
- Store part #
- C46473159
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,657 in stock
#C46473159
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.70 | ₹101.70 |
| 10+ | ₹91.72 | ₹917.20 |
| 30+ | ₹86.30 | ₹2,589.00 |
| 100+ | ₹80.23 | ₹8,023.00 |
| 500+ | ₹77.41 | ₹38,705.00 |
| 1,000+ | ₹76.32 | ₹76,320.00 |
1 × ₹101.70
₹101.70
excl. GST
₹120.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG4429
₹101.70 for 1 + GST
Specifications
- Quiescent Current
- 600uA
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 6A
- Rise Time
- 12ns
- Fall Time
- 13ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 6A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.218 g
Overview
This device is a low-voltage power MOSFET and IGBT inverting gate driver. It employs proprietary latch-up immune CMOS technology to achieve a highly robust single-chip integrated architecture. Logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VDD range, undervoltage lockout with hysteresis, and output current buffer stages. Operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies
- Switch-mode converters
Key features
- Inverted input/output phase
- Compatible with 3.3V and 5V input logic
- Operating range: 5V~25V
- High capacitive load drive capability
- Wide temperature range: -40℃~125℃
- Under-voltage lockout
- Turn-on/turn-off propagation delay characteristics
- Drive current capability: source/sink = 6A/6A
- RoHS compliant
