OBDatasheet (PDF)

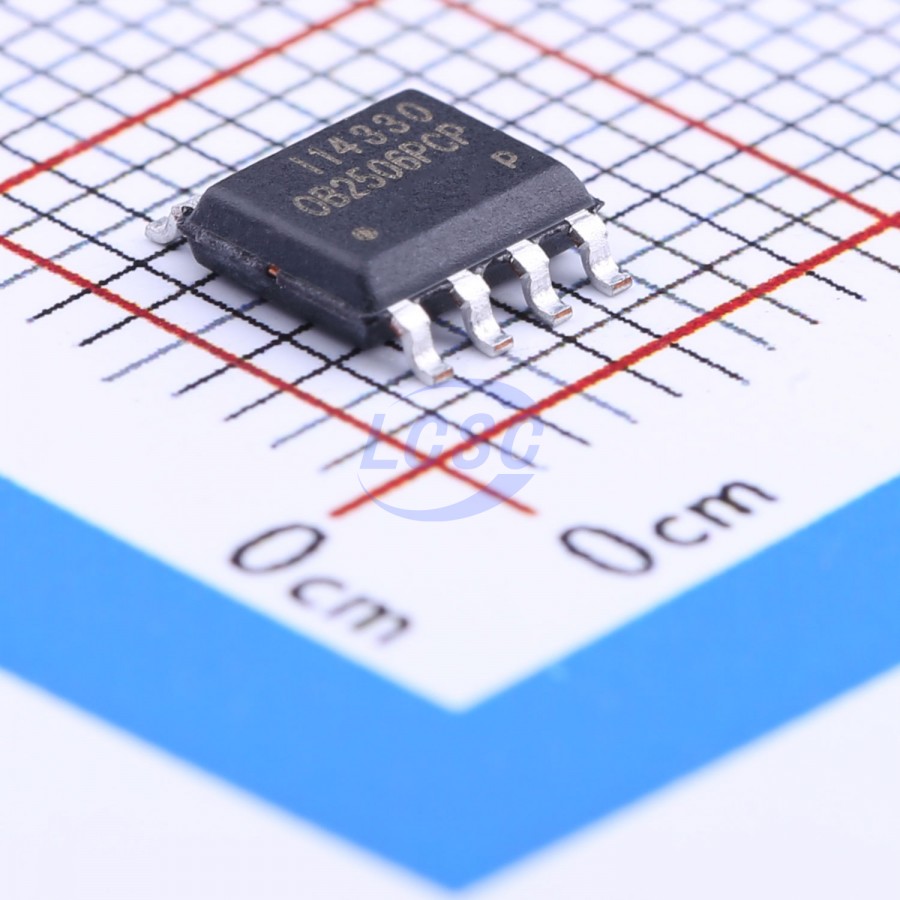

OB2506PCPA
SOP-8 Battery Management
SOP-8RoHSActive
Ni battery charger IC
- Manufacturer
- OB
- Manufacturer part #
- OB2506PCPA
- Store part #
- C138837
- Package / case
- SOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,882 in stock
#C138837
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.18 | ₹53.18 |
| 10+ | ₹46.72 | ₹467.20 |
| 30+ | ₹44.00 | ₹1,320.00 |
| 100+ | ₹40.47 | ₹4,047.00 |
| 500+ | ₹38.79 | ₹19,395.00 |
| 1,000+ | ₹37.96 | ₹37,960.00 |
1 × ₹53.18
₹53.18
excl. GST
₹62.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OB2506PCPA
₹53.18 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Quiescent Current
- 700uA
- Operating Voltage
- 8V~25V
- Features
- Constant current charging;Constant voltage charging;Programmable charging current;Overcurrent Protection;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.131 g
Overview
OB2506x is a highly integrated current mode PFM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications. The ‘extended burst mode’ control greatly reduces the standby power consumption and helps the design easier to meet the international power conservation requirements.
Applications
- Offline AC/DC flyback converter for General power supply
- Power Adapter
Key features
- Extended burst mode control for improved efficiency and low standby power design
- High precision constant voltage and current regulation at universal AC input
- Multi-mode PWM/PFM operation for efficiency improving
- Integrated 1A/2A MOSFET
- Programmable CV and CC regulation
- Built-in primary winding inductance compensation
- Built-in leading edge blanking (LEB)
- Ultra low start-up current and low operating current
- Comprehensive protection coverage with auto-recovery
- On-chip OTP
- VCC over voltage protection
- VCC under voltage lockout with hysteresis (UVLO)
- Cycle-by-Cycle current limiting
- Output over voltage protection
