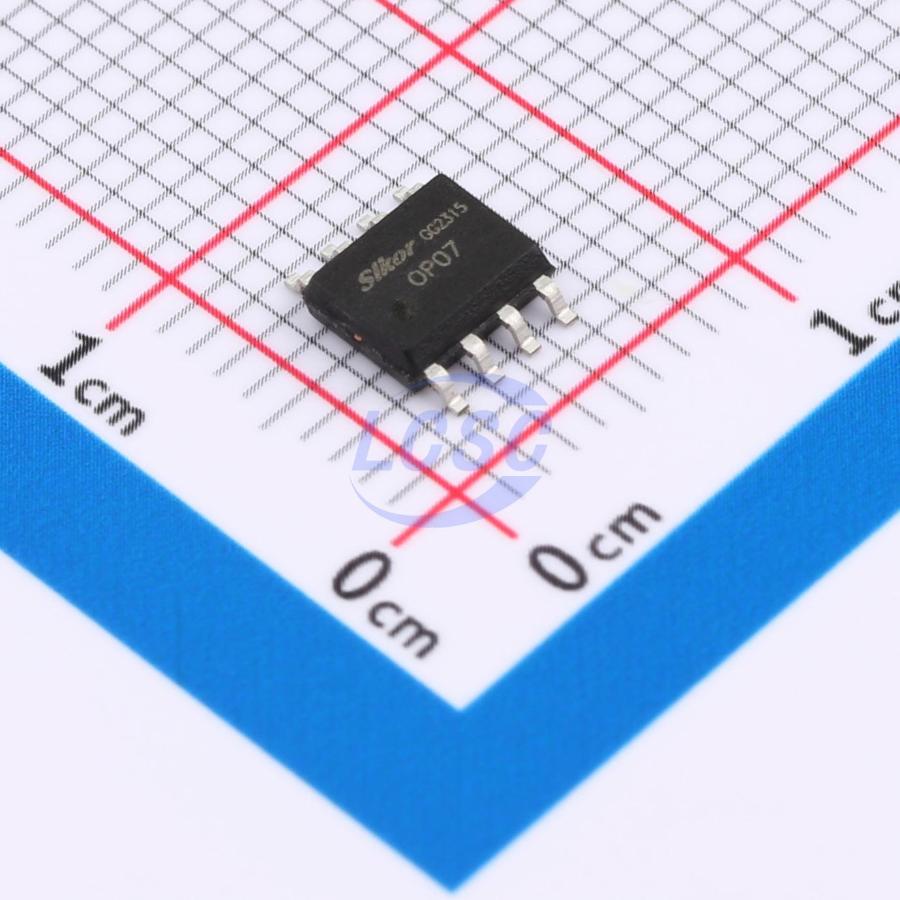

Slkor

OP07

Standard (General Purpose) Amplifier 1 Circuit SOP-8

SOP-8ROHS CompliantActive

Low offset voltage single-channel operational amplifier circuit

Manufacturer: Slkor
Manufacturer part #: OP07
Store part #: C7496548
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,730 in stock

#C7496548

Stock & price checked 42 h ago

Quantity	Unit price	Pack price
5+	₹25.22	₹126.10
50+	₹20.07	₹1,003.50
150+	₹17.87	₹2,680.50
500+	₹15.12	₹7,560.00
2,500+	₹13.80	₹34,500.00
5,000+	₹13.06	₹65,300.00

Quantity (min 5, multiples of 5)

5 × ₹25.22

₹126.10

excl. GST

₹148.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OP07

₹126.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 60uV
Slew Rate: 170V/ms
Input Offset Current(Ios): 800pA
Operating Temperature: -20℃~+85℃
Common Mode Rejection Ratio(CMRR): 120dB
Ib - Input Bias Current: 1.8nA
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Quiescent Current: 2.7mA
Gain Bandwidth Product: 500kHz
Input Voltage Noise Density: 10nV/√Hz@1kHz
Dual Supply: -22V~-3V;3V~22V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.179 g

Overview

The OP07 is a low-noise, non-chopper-stabilized bipolar operational amplifier IC. Due to its very low input offset voltage (maximum offset voltage not exceeding 150μV), the OP07 eliminates the need for external offset trimming in many applications.

Applications

High-gain measurement equipment
Amplification of weak sensor signals
Wireless base station control circuits

Key features

Ultra-low offset: 150μV max
Low input bias current: 1.8nA
Low offset voltage drift: 0.5μV/°C
Ultra-stable over time: 2μV/month max
Wide supply voltage range: ±3V to ±22V
