TIDatasheet (PDF)

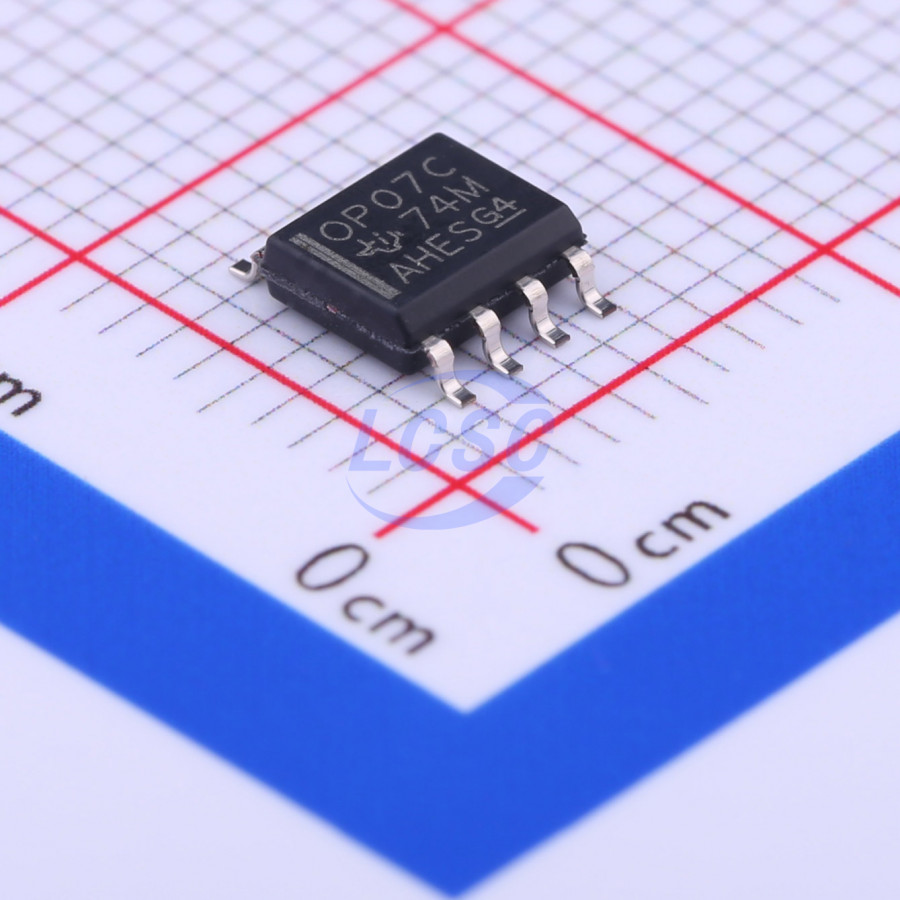

OP07CD
1 60uV 0.3V/us 110dB 1.8nA 8mA 600kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS CompliantActive
OP07x Precision Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OP07CD
- Store part #
- C354130
- Package / case
- SOIC-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,005 in stock
#C354130
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.33 | ₹201.65 |
| 50+ | ₹31.69 | ₹1,584.50 |
| 150+ | ₹26.84 | ₹4,026.00 |
| 525+ | ₹22.23 | ₹11,670.75 |
| 2,250+ | ₹20.18 | ₹45,405.00 |
| 5,250+ | ₹18.95 | ₹99,487.50 |
5 × ₹40.33
₹201.65
excl. GST
₹237.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
OP07CD
₹201.65 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 60uV
- Slew Rate
- 0.3V/us
- Input Offset Current(Ios)
- 800pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 1.8nA
- Input Offset Voltage Drift(Vos TC)
- 500nV/℃
- Quiescent Current
- 8mA
- Gain Bandwidth Product
- 600kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 10.5nV/√Hz@10Hz
- Dual Supply
- -18V~-3V;3V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.175 g
Overview
These devices offer low offset and long-term stability by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in noninverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range.
Applications
- Wireless Base Station Control Circuits
- Optical Network Control Circuits
- Instrumentation
- Sensors and Controls
- Precision Filters
Key features
- Low Noise
- No External Components Required
- Replace Chopper Amplifiers at a Lower Cost
- Wide Input-Voltage Range: 0 to ±14 V (Typ)
- Wide Supply-Voltage Range: ±3 V to ±18 V
