UMW

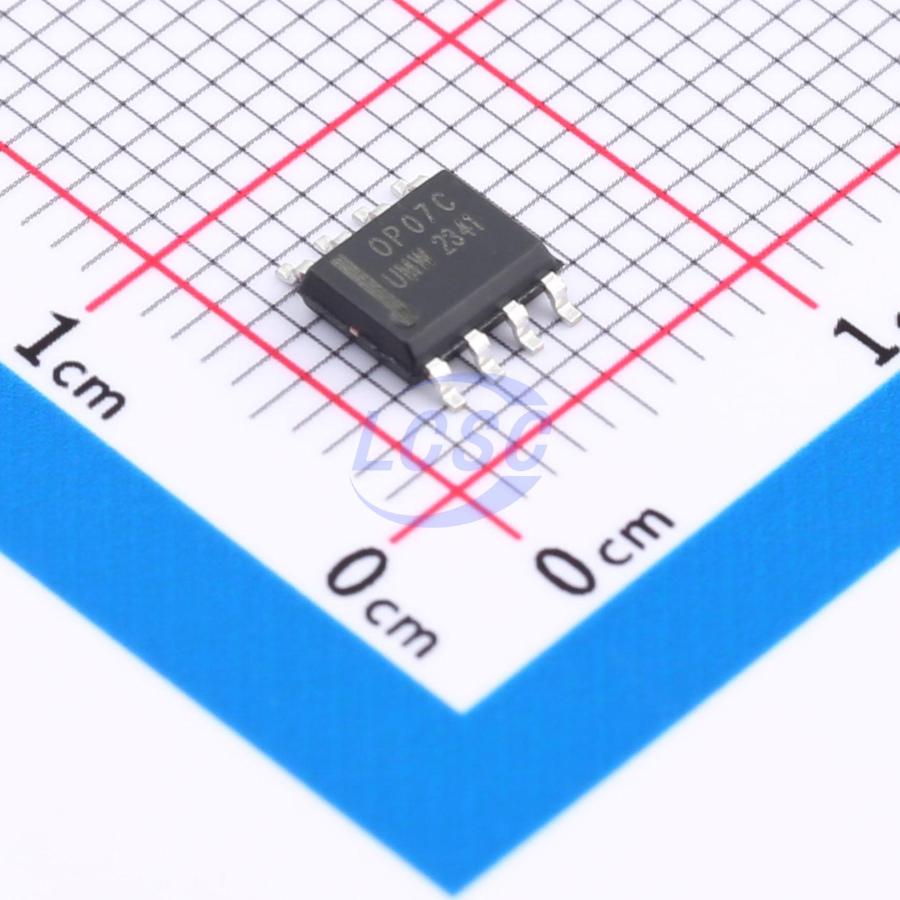

OP07CDR(UMW)

1 150uV 13.5nA 100dB 3.8mA 500kHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Low offset single operational amplifier

Manufacturer: UMW
Manufacturer part #: OP07CDR(UMW)
Store part #: C18212281
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

54,570 in stock

#C18212281

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹19.29	₹96.45
50+	₹14.83	₹741.50
150+	₹12.59	₹1,888.50
500+	₹10.93	₹5,465.00
2,500+	₹9.59	₹23,975.00
5,000+	₹8.92	₹44,600.00

Quantity (min 5, multiples of 5)

5 × ₹19.29

₹96.45

excl. GST

₹113.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OP07CDR(UMW)

₹96.45 for 5 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 150uV
Input Offset Current(Ios): 8nA
Operating Temperature: -10℃~+85℃
Ib - Input Bias Current: 13.5nA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Quiescent Current: 3.8mA
Gain Bandwidth Product: 500kHz
Dual Supply: -20V~-3V;3V~20V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.211 g

Overview

This is a high-precision operational amplifier with a maximum offset voltage of 150uV. With a gain of 200V/mV, it is particularly well-suited for instrumentation and similar applications. The device features a wide input voltage range (±13V) and a common-mode rejection ratio exceeding 100dB, enabling excellent linearity and gain accuracy even in high closed-loop gain circuits.
