XBLWDatasheet (PDF)

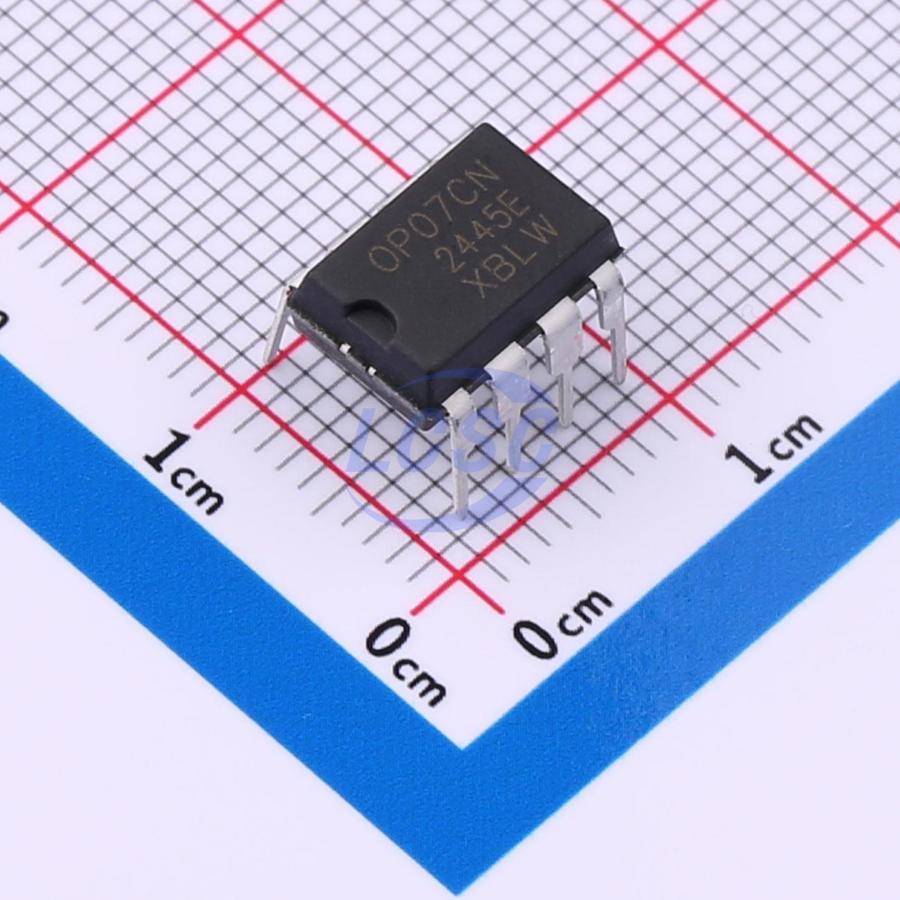

OP07CN(XBLW)
1 150uV 100dB 5nA 500kHz 6mA DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DIP-8ROHS CompliantActive
High-performance Low-noise Dual Operational Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- OP07CN(XBLW)
- Store part #
- C42395497
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,315 in stock
#C42395497
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.99 | ₹149.95 |
| 50+ | ₹23.55 | ₹1,177.50 |
| 150+ | ₹20.78 | ₹3,117.00 |
| 500+ | ₹17.34 | ₹8,670.00 |
| 2,500+ | ₹15.81 | ₹39,525.00 |
| 5,000+ | ₹14.90 | ₹74,500.00 |
5 × ₹29.99
₹149.95
excl. GST
₹176.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
OP07CN(XBLW)
₹149.95 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 150uV
- Input Offset Current(Ios)
- 6nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 5nA
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Gain Bandwidth Product
- 500kHz
- Quiescent Current
- 6mA
- Dual Supply
- -2.5V~22V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.86 g
Overview
The OP07C is a high precision operational amplifier with a maximum offset voltage control of 150uV. Gain up to 200V/mV. Therefore, OP07C is particularly suitable for instrumentation and other aspects. The OP07C has a common mode rejection ratio (CMRR) of more than 100dB and maintains excellent linearity and gain precision in high closed-loop gain circuits.
Applications
- Analog input module
- Battery test
- Lab and field instrumentation
- Temperature transmitter
- Merchant network & server PSU
Key features
- Max offset Voltage: 150uV (max)
- Low Offset Current: I10 = 1.3nA typ.
- Supply Power Range: ±2.5V~±22V
- Low noise
