TIDatasheet (PDF)

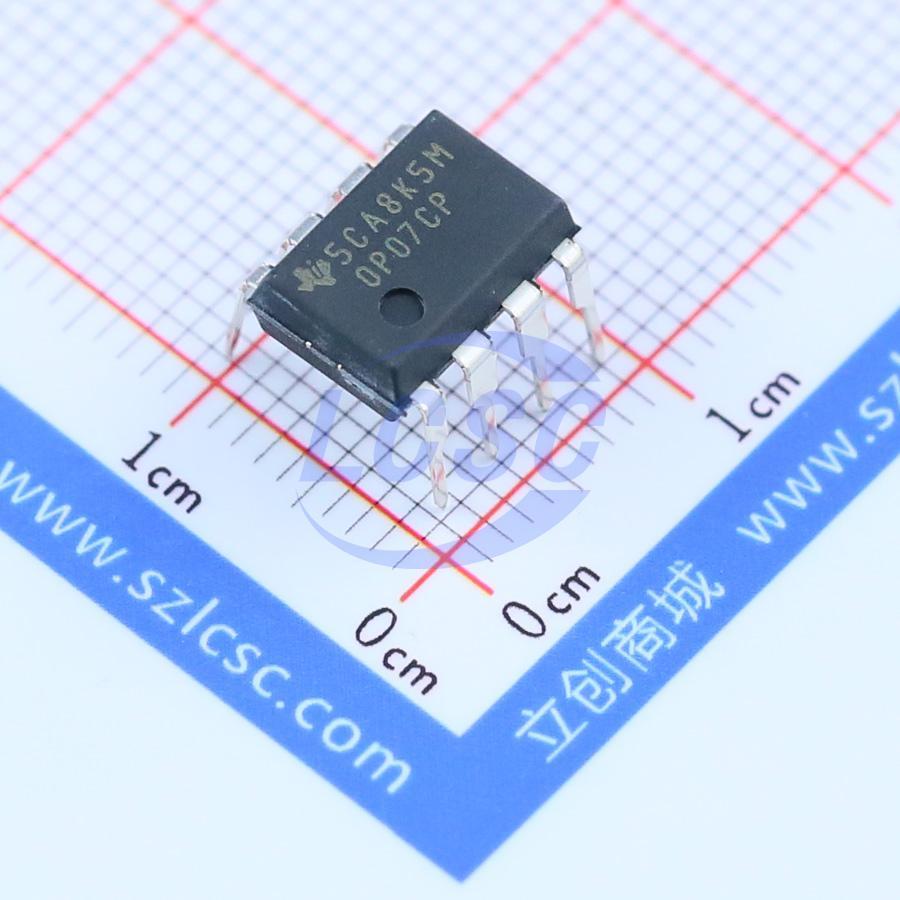

OP07CP
1 60uV 0.3V/us 120dB 1.8nA 600kHz PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
PDIP-8ROHS3 CompliantActive
Precision Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OP07CP
- Store part #
- C5224
- Package / case
- PDIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,325 in stock
#C5224
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.82 | ₹67.82 |
| 10+ | ₹56.79 | ₹567.90 |
| 50+ | ₹50.09 | ₹2,504.50 |
| 100+ | ₹44.31 | ₹4,431.00 |
| 500+ | ₹41.60 | ₹20,800.00 |
| 1,000+ | ₹40.15 | ₹40,150.00 |
1 × ₹67.82
₹67.82
excl. GST
₹80.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
OP07CP
₹67.82 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 60uV
- Slew Rate
- 0.3V/us
- Input Offset Current(Ios)
- 800pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 1.8nA
- Input Offset Voltage Drift(Vos TC)
- 500nV/℃
- Gain Bandwidth Product
- 600kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 10.5nV/√Hz@10Hz
- Dual Supply
- -18V~-3V;3V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.9 g
Overview
These devices offer low offset and long - term stability by means of a low - noise, chopperless, bipolar - input transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input - voltage range and outstanding common - mode rejection, provides maximum flexibility and performance in high - noise environments and in noninverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range. The OP07 devices are unsurpassed for low - noise, high - accuracy amplification of very - low - level signals. These devices are characterized for operation from 0℃ to 70℃.
Key features
- Low Noise
- No External Components Required
- Replace Chopper Amplifiers at a Lower Cost
- Wide Input - Voltage Range: 0 to ±14 V Typ
- Wide Supply - Voltage Range: ±3 V to ±18 V
