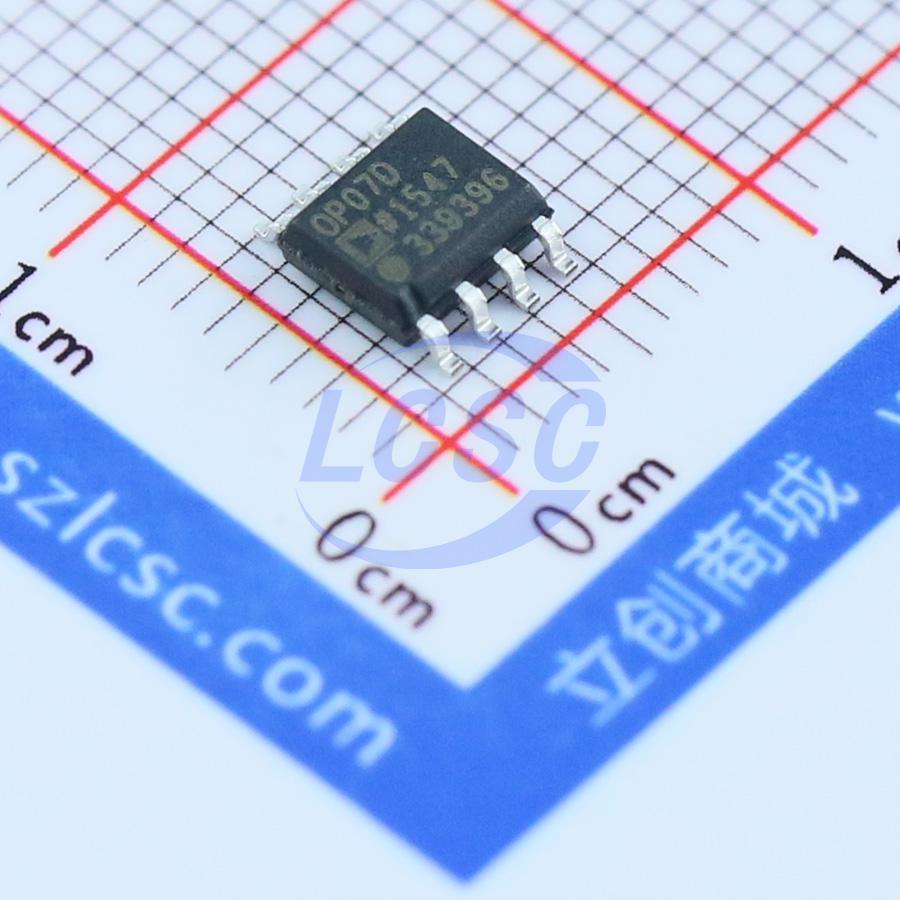

ADI

OP07DRZ-REEL7

15mA 1 40uV 0.2V/us 127dB 1nA 600kHz 1.1mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

150 uV Maximum Offset Voltage Op Amp

Manufacturer: ADI
Manufacturer part #: OP07DRZ-REEL7
Store part #: C21775
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,705 in stock

#C21775

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹301.17	₹301.17
10+	₹260.62	₹2,606.20
30+	₹235.26	₹7,057.80
100+	₹188.20	₹18,820.00
500+	₹176.49	₹88,245.00
1,000+	₹171.50	₹1,71,500.00

Quantity (min 1)

1 × ₹301.17

₹301.17

excl. GST

₹355.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

OP07DRZ-REEL7

₹301.17 for 1 + GST

Specifications

Output Current: 15mA
Number of Channels: 1
Vos - Input Offset Voltage: 40uV
Slew Rate: 0.2V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 127dB
Ib - Input Bias Current: 1nA
Input Offset Voltage Drift(Vos TC): 500nV/℃
Gain Bandwidth Product: 600kHz
Quiescent Current: 1.1mA
Features: ESD protection;Reverse-phase input protection
Input Voltage Noise Density: 10nV/√Hz@1kHz
Dual Supply: -18V~-4V;4V~18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.15 g

Overview

The OP07D is a precision, ultralow offset amplifier. It integrates low power (0.1 mA typical), low input bias current (±1 nA maximum), and high CMRR/PSRR (130 dB) in the small DIP package. Operation is fully specified from ±5 V to ±15 V supply. The OP07D provides higher accuracy than industry-standard OP07-type amplifiers due to Analog Devices’ iPolar process, which supports enhanced performance in a smaller footprint. These performance enhancements include wider output swing, lower power, and higher CMRR (common-mode rejection ratio) and PSRR (power supply rejection ratio). The OP07D maintains stability of offsets and gain virtually regardless of variations in time or temperature. Excellent linearity and gain accuracy can be maintained at high closed-loop gains. The OP07D is fully specified over the extended industrial temperature range of -40°C to +125°C. The OP07D amplifier is available in 8-lead DIP and the popular 8-lead, narrow SOIC lead-free packages.
