HANSCHIP semiconductor

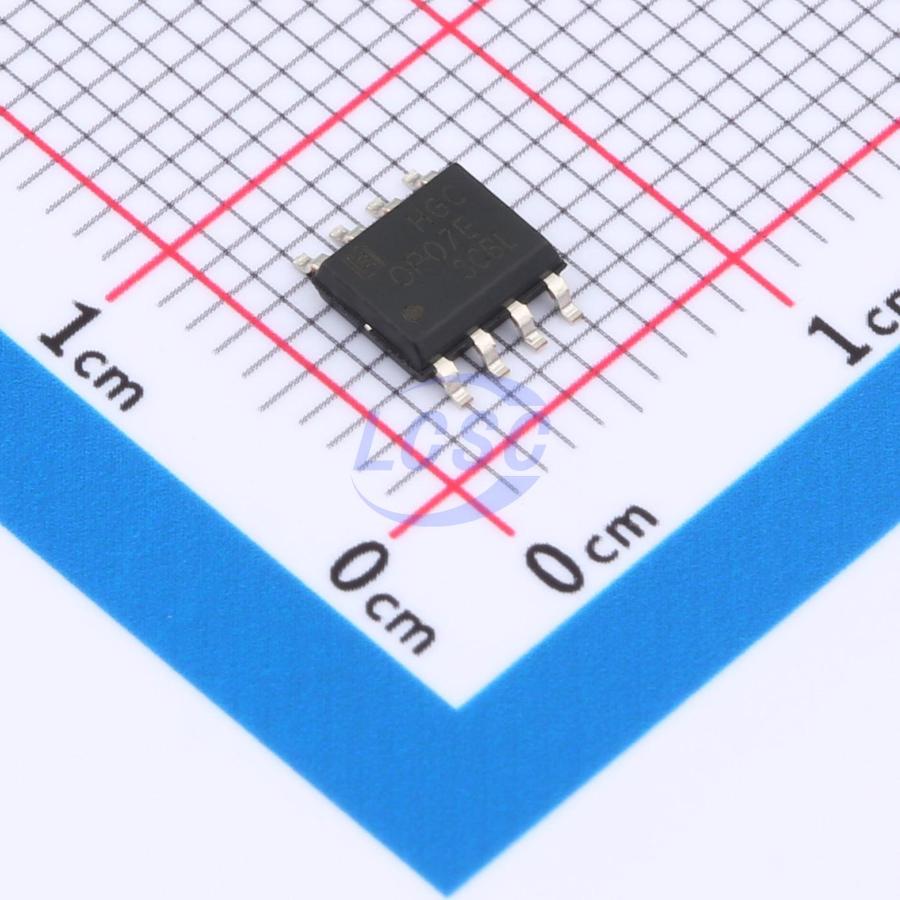

OP07EDRG

Standard (General Purpose) Amplifier 1 Circuit SOP-8

SOP-8ROHS CompliantActive

Low-offset single operational amplifier

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: OP07EDRG
Store part #: C19723821
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,880 in stock

#C19723821

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹11.42	₹57.10
50+	₹10.03	₹501.50
150+	₹9.34	₹1,401.00
500+	₹8.81	₹4,405.00
2,500+	₹8.39	₹20,975.00
5,000+	₹8.19	₹40,950.00

Quantity (min 5, multiples of 5)

5 × ₹11.42

₹57.10

excl. GST

₹67.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OP07EDRG

₹57.10 for 5 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 250uV
Input Offset Current(Ios): 8nA
Operating Temperature: -10℃~+85℃
Ib - Input Bias Current: 28nA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Quiescent Current: 3.8mA
Gain Bandwidth Product: 500kHz
Input Voltage Noise Density: 10nV/√Hz@1kHz
Dual Supply: -20V~-3V;3V~20V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.258 g

Overview

The OP07 is a high-precision op-amp with a maximum offset voltage of 150μV and a gain of 200V/mV. It is therefore particularly well suited for instrumentation and similar applications. The OP07 features a wide input voltage range (±13V) and a CMRR of over 100dB, maintaining excellent linearity and gain accuracy even in high closed-loop gain circuits.
