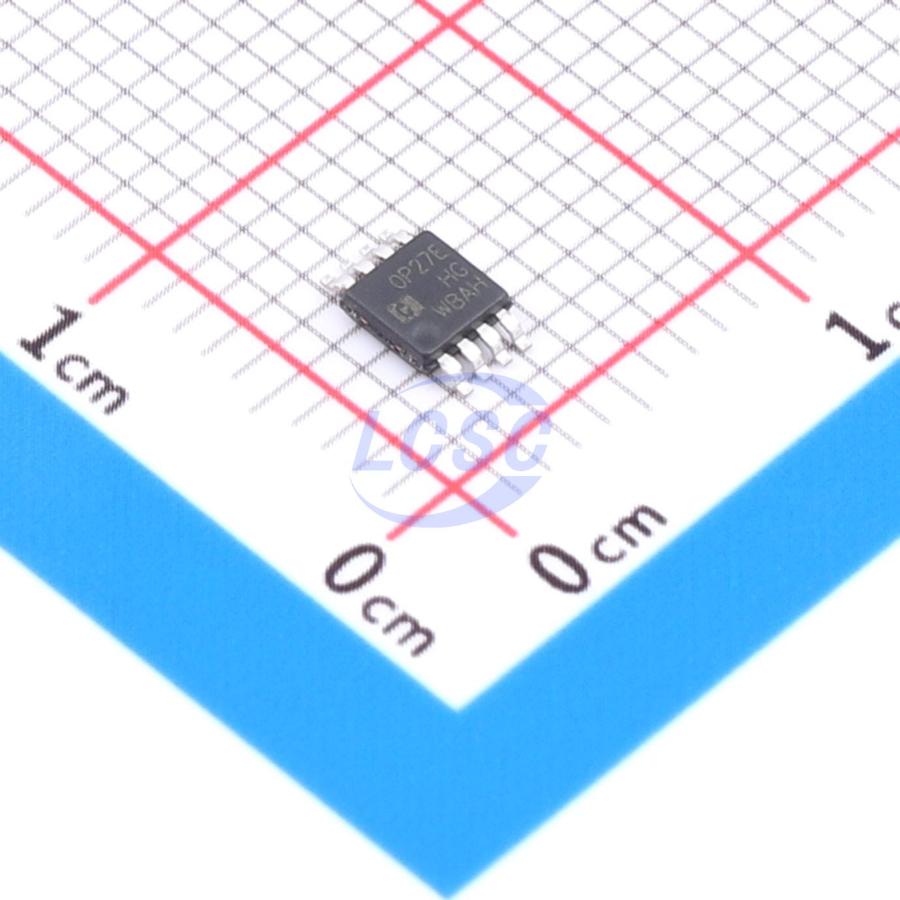

HGSEMI

OP27EMM/TR

8MHz 3.8mA 1 10uV 28nA 100dB MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: OP27EMM/TR
Store part #: C51484084
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,983 in stock

#C51484084

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹105.23	₹105.23
10+	₹95.24	₹952.40
30+	₹89.82	₹2,694.60
100+	₹83.53	₹8,353.00
500+	₹80.93	₹40,465.00
1,000+	₹79.63	₹79,630.00

Quantity (min 1)

1 × ₹105.23

₹105.23

excl. GST

₹124.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OP27EMM/TR

₹105.23 for 1 + GST

Specifications

Gain Bandwidth Product: 8MHz
Quiescent Current: 3.8mA
Number of Channels: 1
Vos - Input Offset Voltage: 10uV
Input Offset Current(Ios): 8nA
Input Voltage Noise Density: 3nV/√Hz@1000Hz
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 28nA
Common Mode Rejection Ratio(CMRR): 100dB
Dual Supply: -18V~-3V;3V~18V
Input Offset Voltage Drift(Vos TC): 1.8uV/℃

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.16 g

Overview

The OP27 is a high-precision op-amp with a maximum offset voltage of 150μV and a gain of 200V/mV. It is therefore particularly well-suited for instrumentation and similar applications. With a wide input voltage range of ±13V and a CMRR exceeding 100dB, the OP27 maintains excellent linearity and gain accuracy even in high closed-loop gain circuits.
