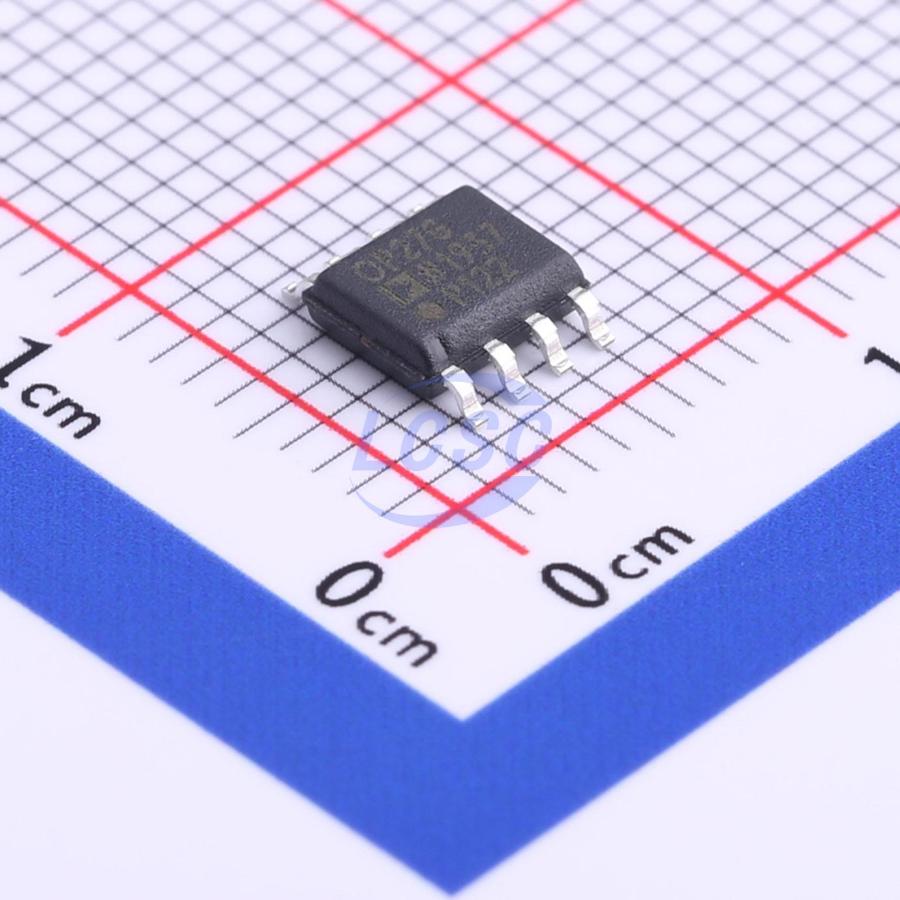

OP27GSZ-REEL
1 30uV 2.8V/us 15nA 120dB 8MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Low Noise, Precision Operational Amplifier
- Manufacturer
- ADI
- Manufacturer part #
- OP27GSZ-REEL
- Store part #
- C581242
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,153 in stock
#C581242
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹312.98 | ₹312.98 |
| 10+ | ₹263.46 | ₹2,634.60 |
| 30+ | ₹232.62 | ₹6,978.60 |
| 100+ | ₹200.91 | ₹20,091.00 |
| 500+ | ₹186.58 | ₹93,290.00 |
| 1,000+ | ₹180.29 | ₹1,80,290.00 |
1 × ₹312.98
₹312.98
excl. GST
₹369.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OP27GSZ-REEL
₹312.98 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 30uV
- Slew Rate
- 2.8V/us
- Input Offset Current(Ios)
- 12nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 15nA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 400nV/℃
- Gain Bandwidth Product
- 8MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 3.2nV/√Hz@1kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
Applications
- Precision instrumentation applications
- High speed, data - acquisition systems
- Professional audio applications
- Stable integrators
- Precision summing amplifiers
- Precision voltage threshold detectors
- Comparators
- Professional audio circuits such as tape heads and microphone preamplifiers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OP27GSZ#C210102ADI · SOIC-8 | ADI | SOIC-8 | 220 | ₹500.25 · 220 in stock | View |
 | OP27GSZ-REEL7#C9927ADI · SOIC-8 | ADI | SOIC-8 | 19,117 | ₹271.00 · 19,117 in stock | View |
 | COS227USR#C3008541COSINE · SOP-8 | COSINE | SOP-8 | 954 | ₹120.60 · 954 in stock | View |
 | COS27SR#C5185472COSINE · SOP-8 | COSINE | SOP-8 | On request | Price on request | Quote |
