HGSEMI

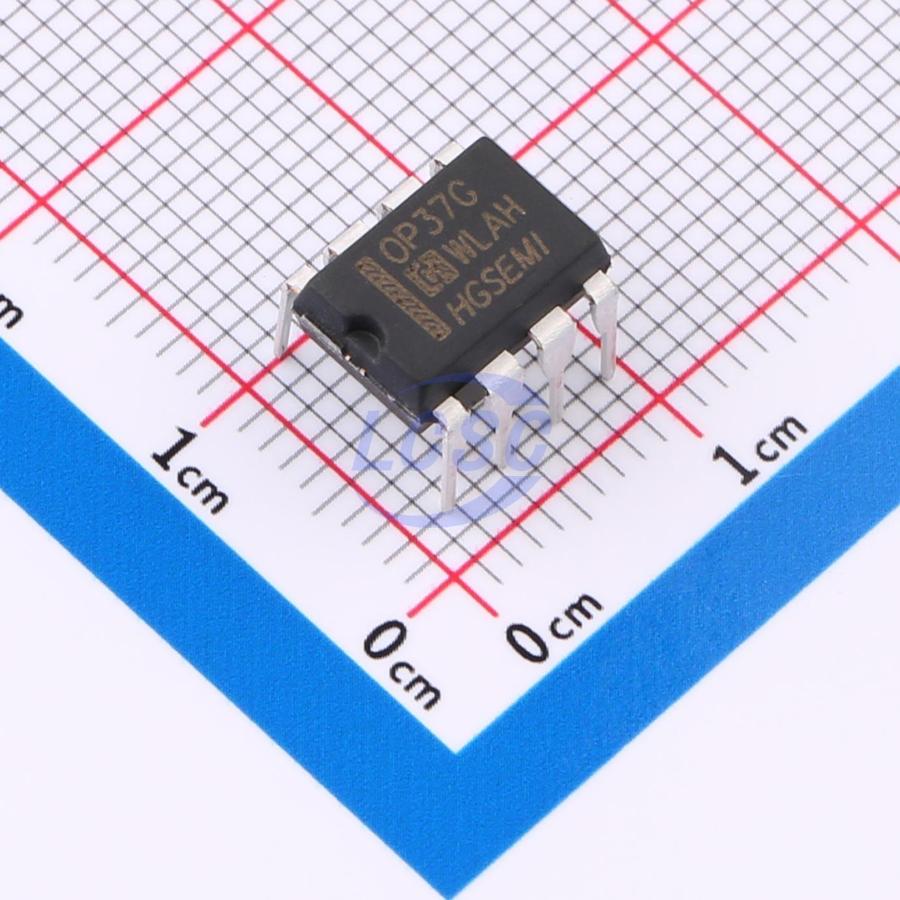

OP37GN/HG

3.8mA 63MHz 1 100uV 100dB 28nA DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS

DIP-8ROHS CompliantActive

Manufacturer: HGSEMI
Manufacturer part #: OP37GN/HG
Store part #: C49328975
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,983 in stock

#C49328975

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹144.72	₹144.72
10+	₹119.73	₹1,197.30
50+	₹105.83	₹5,291.50
100+	₹90.40	₹9,040.00
500+	₹83.45	₹41,725.00
1,000+	₹80.41	₹80,410.00

Quantity (min 1)

1 × ₹144.72

₹144.72

excl. GST

₹170.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

OP37GN/HG

₹144.72 for 1 + GST

Specifications

Quiescent Current: 3.8mA
Gain Bandwidth Product: 63MHz
Number of Channels: 1
Vos - Input Offset Voltage: 100uV
Input Offset Current(Ios): 8nA
Input Voltage Noise Density: 3.8nV/√Hz@10Hz
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 28nA
Dual Supply: -18V~-3V;3V~18V
Input Offset Voltage Drift(Vos TC): 1.8uV/℃

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.827 g

Overview

The OP37 is a high-precision op-amp with a maximum offset voltage of 100 μV and a gain of 200 V/mV. This makes it particularly well-suited for instrumentation and similar applications. With a wide input voltage range of ±13 V and a CMRR exceeding 100 dB, the OP37 maintains excellent linearity and gain accuracy even in high closed-loop gain circuits.
