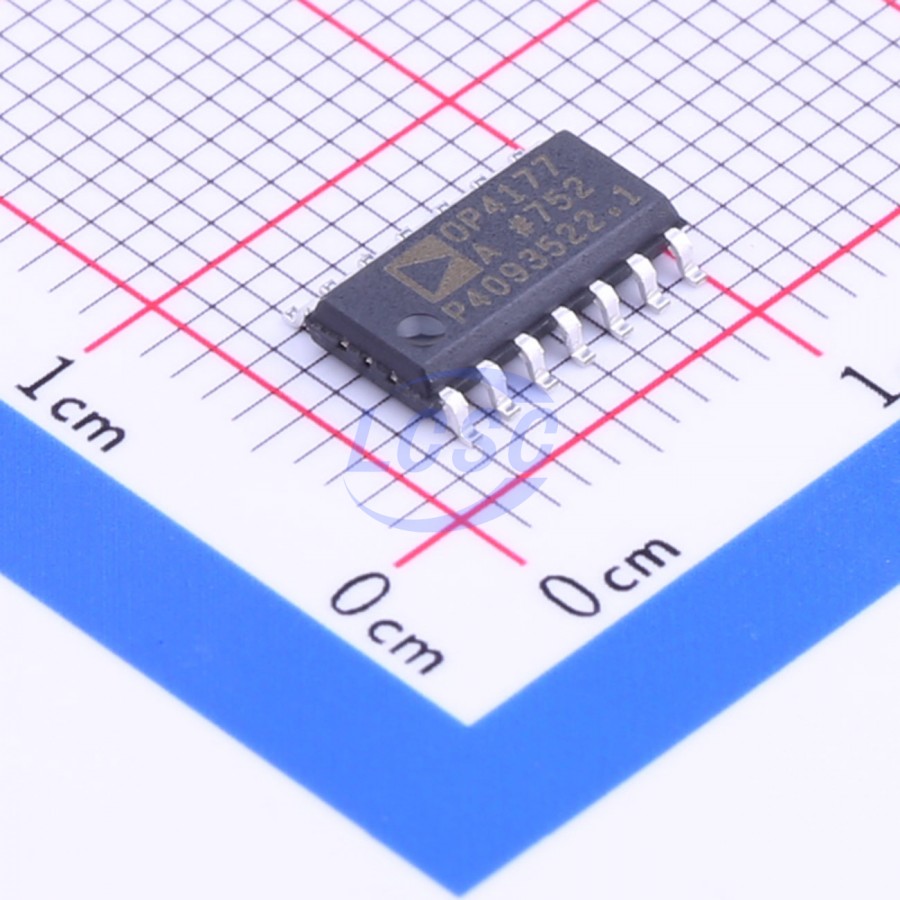

OP4177ARZ-REEL7

The OPx177 family consists of very high precision, single, dual, and quad amplifiers featuring extremely low offset voltage and drift, low input bias current, low noise, and low power consumption. Outputs are stable with capacitive loads of over 1000 pF with no external compensation. Supply current is less than 500 μA per amplifier at 30 V. Internal 500 Ω series resistors protect the inputs, allowing input signal levels several volts beyond either supply without phase reversal. The OPx177 family offers the widest specified temperature range of any high precision amplifier in surface - mount packaging. All versions are fully specified for operation from -40°C to +125°C for the most demanding operating environments. Applications for these amplifiers include precision diode power measurement, voltage and current level setting, and level detection in optical and wireless transmission systems. Additional applications include line - powered and portable instrumentation and controls—thermocouple, RTD, strainbridge, and other sensor signal conditioning—and precision filters.

Applications

• Wireless base station control circuits
• Optical network control circuits
• Instrumentation
• Sensors and controls (Thermocouples, Resistor thermal detectors (RTDs), Strain bridges, Shunt current measurements)
• Precision filters

Key features

• Low offset voltage: 60 μV maximum
• Very low offset voltage drift: 0.7 μV/°C maximum
• Low input bias current: 2 nA maximum
• Low noise: 8 nV/√Hz typical
• CMRR, PSRR, and Avo > 120 dB minimum
• Low supply current: 400 μA per amplifier
• Dual supply operation: ±2.5 V to ±15 V
• Unity - gain stable
• No phase reversal
• Inputs internally protected beyond supply voltage
