UMWDatasheet (PDF)

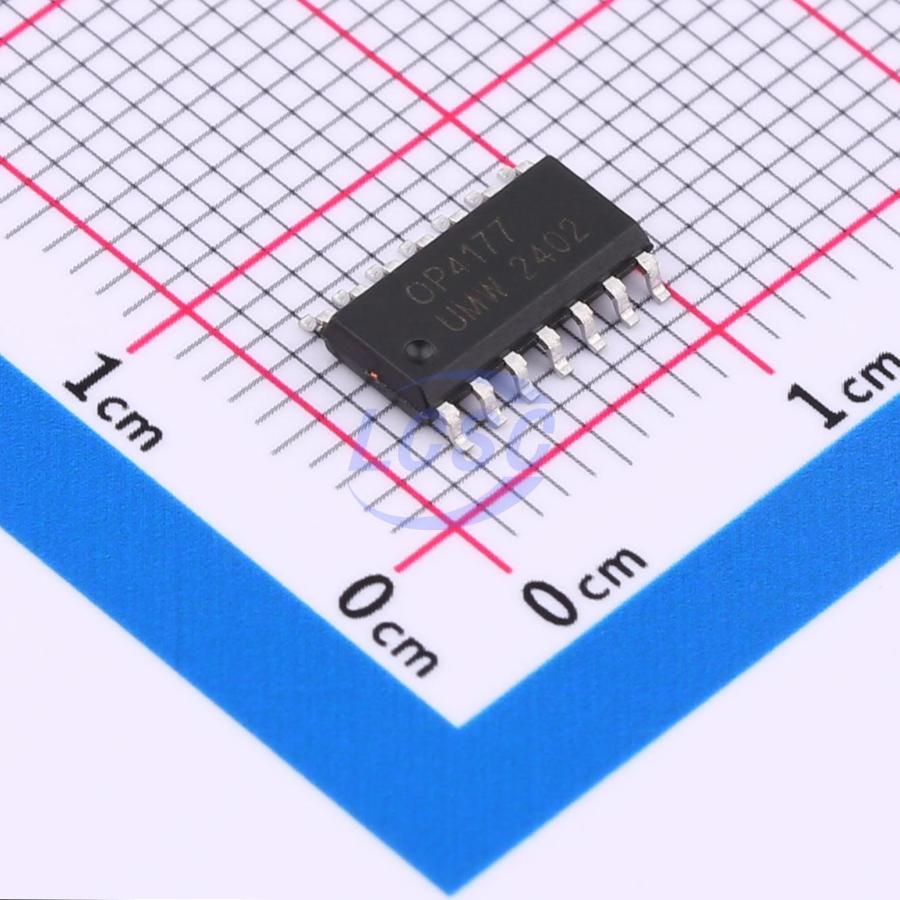

OP4177ARZ(UMW)
10mA Four channels 75uV 0.7V/us 500pA 126dB 400uA 1.3MHz SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Precision Low Noise, Low Input Bias Current Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- OP4177ARZ(UMW)
- Store part #
- C22373383
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,156 in stock
#C22373383
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.52 | ₹225.52 |
| 10+ | ₹185.33 | ₹1,853.30 |
| 30+ | ₹163.17 | ₹4,895.10 |
| 100+ | ₹138.40 | ₹13,840.00 |
| 500+ | ₹127.33 | ₹63,665.00 |
| 1,000+ | ₹122.32 | ₹1,22,320.00 |
1 × ₹225.52
₹225.52
excl. GST
₹266.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OP4177ARZ(UMW)
₹225.52 for 1 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 75uV
- Slew Rate
- 0.7V/us
- Input Offset Current(Ios)
- 200pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 500pA
- Common Mode Rejection Ratio(CMRR)
- 126dB
- Input Offset Voltage Drift(Vos TC)
- 900nV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 1.3MHz
- Features
- Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 7.9nV/√Hz@1kHz
- Dual Supply
- -15V~-2.5V;2.5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.351 g
Overview
The OP2177/4177 series comprises ultra-high precision single, dual, and quad amplifiers featuring ultralow offset voltage and drift, low input bias current, low noise, and low power consumption. The output remains stable with capacitive loads exceeding 1000 pF without external compensation. At a 30 V supply voltage, the supply current per amplifier is less than 500 μA. An internal 500 Ω series resistor protects the inputs, allowing input signal levels to exceed either supply rail by several volts without phase reversal.
Applications
- Wireless base station control circuits
- Optical network control circuits
- Instrumentation
- Sensors and control
- Thermocouples
- Resistance temperature detectors
- Strain bridges
- Shunt current measurement
- Precision filters
Key features
- Low offset voltage: 60 μV max
- Ultra-low offset voltage drift: 0.7 μV/°C max
- Low input bias current: 2 nA max
- Low noise: 8 nV/√Hz typical
- CMRR, PSRR, and AVO minimums greater than 120 dB
- Low supply current: 400 μA per amplifier
- Dual-supply operation: ±2.5V to ±15V
- Unity-gain stable
- No phase reversal
- Internal protection when input exceeds supply voltage
