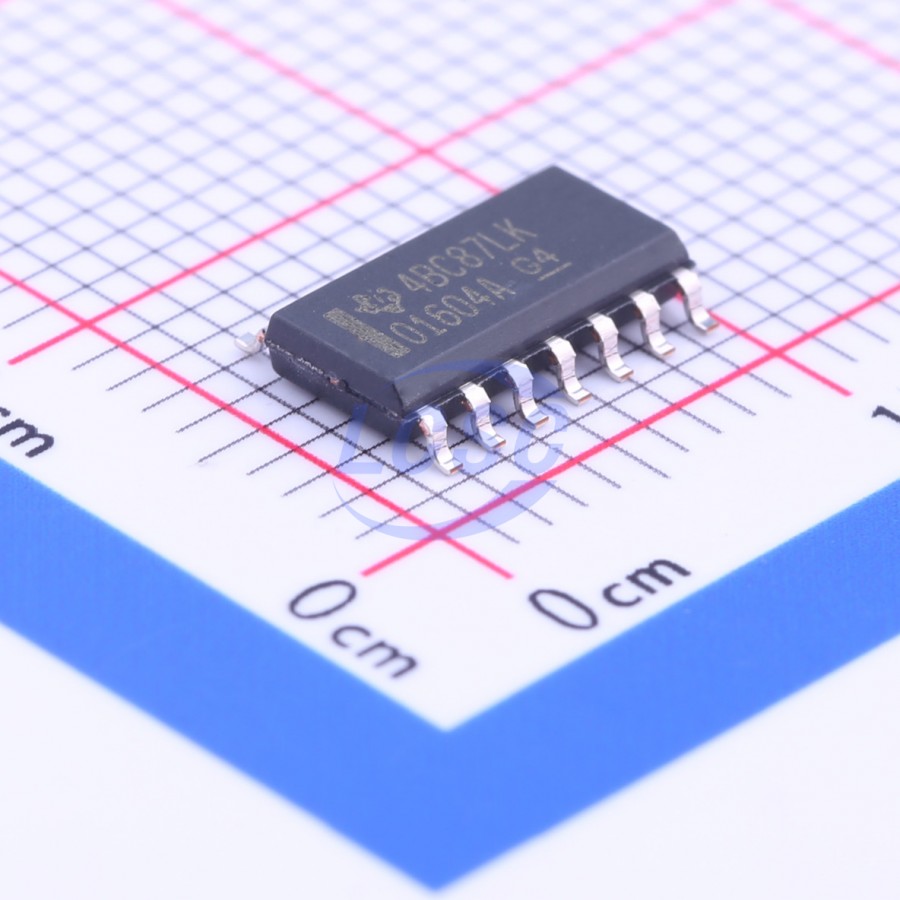

OPA1604AIDR
2.6mA 4-Channel -2.25V~18V SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
High-Performance, Bipolar-Input Audio Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OPA1604AIDR
- Store part #
- C202157
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,341 in stock
#C202157
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹773.52 | ₹773.52 |
| 10+ | ₹654.22 | ₹6,542.20 |
| 30+ | ₹583.18 | ₹17,495.40 |
| 100+ | ₹511.47 | ₹51,147.00 |
| 500+ | ₹478.45 | ₹2,39,225.00 |
| 1,000+ | ₹463.46 | ₹4,63,460.00 |
1 × ₹773.52
₹773.52
excl. GST
₹912.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA1604AIDR
₹773.52 for 1 + GST
Specifications
- Quiescent Current
- 2.6mA
- Total Harmonic Distortion + Noise (THD+N)
- 0.00003%
- Features
- ESD protection
- Speaker Channels
- 4-Channel
- Voltage - Supply
- -2.25V~18V
- Operating Temperature
- -40℃~+85℃
- Power Supply Rejection Ratio (PSRR)
- 120dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The OPA1602 and OPA1604 bipolar-input operational amplifiers achieve very low 2.5nV/√Hz noise density with an ultralow distortion of 0.00003% at 1kHz. The OPA1602 and OPA1604 series of op amps offer rail-to-rail output swing to within 600mV with 2kΩ load, which increases headroom and maximizes dynamic range. These devices also have a high output drive capability of ±30mA. These devices operate over a very wide supply range of ±2.25V to ±18V, on only 2.6mA of supply current per channel. The OPA1602 and OPA1604 are unity-gain stable and provide excellent dynamic behavior over a wide range of load conditions. These devices also feature completely independent circuitry for lowest crosstalk and freedom from interactions between channels, even when overdriven or overloaded. The OPA1602 and OPA1604 are specified from -40°C to +85°C.
Applications
- PROFESSIONAL AUDIO EQUIPMENT
- BROADCAST STUDIO EQUIPMENT
- ANALOG AND DIGITAL MIXERS
- HIGH-END A/V RECEIVERS
- HIGH-END BLU-RAY PLAYERS
Key features
- SUPERIOR SOUND QUALITY
- ULTRALOW NOISE: 2.5nV/√Hz at 1kHz
- ULTRALOW DISTORTION: 0.00003% at 1kHz
- HIGH SLEW RATE: 20V/μs
- WIDE BANDWIDTH: 35MHz (G=+1)
- HIGH OPEN-LOOP GAIN: 120dB
- UNITY GAIN STABLE LOW QUIESCENT CURRENT: 2.6mA PER CHANNEL RAIL-TO-RAIL OUTPUT
- WIDE SUPPLY RANGE: ±2.25V to ±18V
- DUAL AND QUAD VERSIONS AVAILABLE
