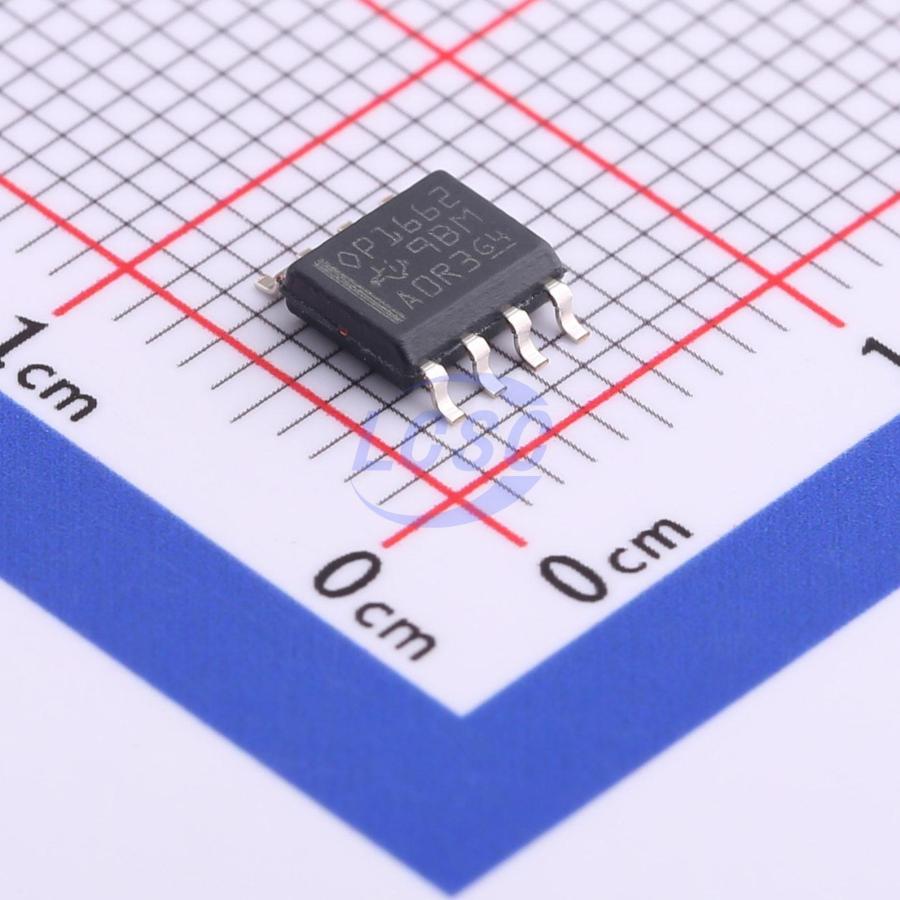

OPA1662AIDR

The OPA1662 (dual-channel) and OPA1664 (quad-channel) bipolar-input operational amplifier product series can achieve an extremely low noise density of 3.3 nV/√Hz with ultra-low distortion (0.00006% at 1 kHz). The OPA1662 and OPA1664 series operational amplifiers support a rail-to-rail output swing of up to 600 mV into a μ₂ kΩ load, which increases headroom and extends the dynamic range. In addition, these devices feature a high output drive capability of ±30 mA. These devices can operate over a wide supply voltage range from ±1.5 V to ±18 V, or +3 V to +36 V, with a supply current of only 1.5 mA per channel. The OPA1662 and OPA1664 operational amplifiers are unity-gain stable and provide excellent dynamic performance over a wide range of load conditions. They also use fully independent circuitry to minimize crosstalk and are immune to inter-channel interaction effects, even during overdrive or overload conditions. The OPA1662 and OPA1664 are specified over the -40°C to +85°C temperature range.

Applications

• USB and firmware audio systems
• Analog and digital mixers
• Portable recording systems
• Audio effects processors
• High-end A/V receivers
• High-end DVD and Blu-ray players
• High-end automotive audio

Key features

• Low noise: 3.3nV/√Hz at 1kHz
• Low distortion: 0.00006% at 1kHz
• Low quiescent current: 1.5mA per channel
• Slew rate: 17 V/μs
• Wide gain bandwidth: 22MHz (G=+1)
• Unity-gain stable
• Rail-to-rail output
• Wide supply range: ±1.5 V to ±18 V, or +3 V to +36 V
• Dual and quad versions available
• Small package options:
• Dual: SO-8 and MSOP-8
• Quad: SO-14 and TSSOP-14
