TIDatasheet (PDF)

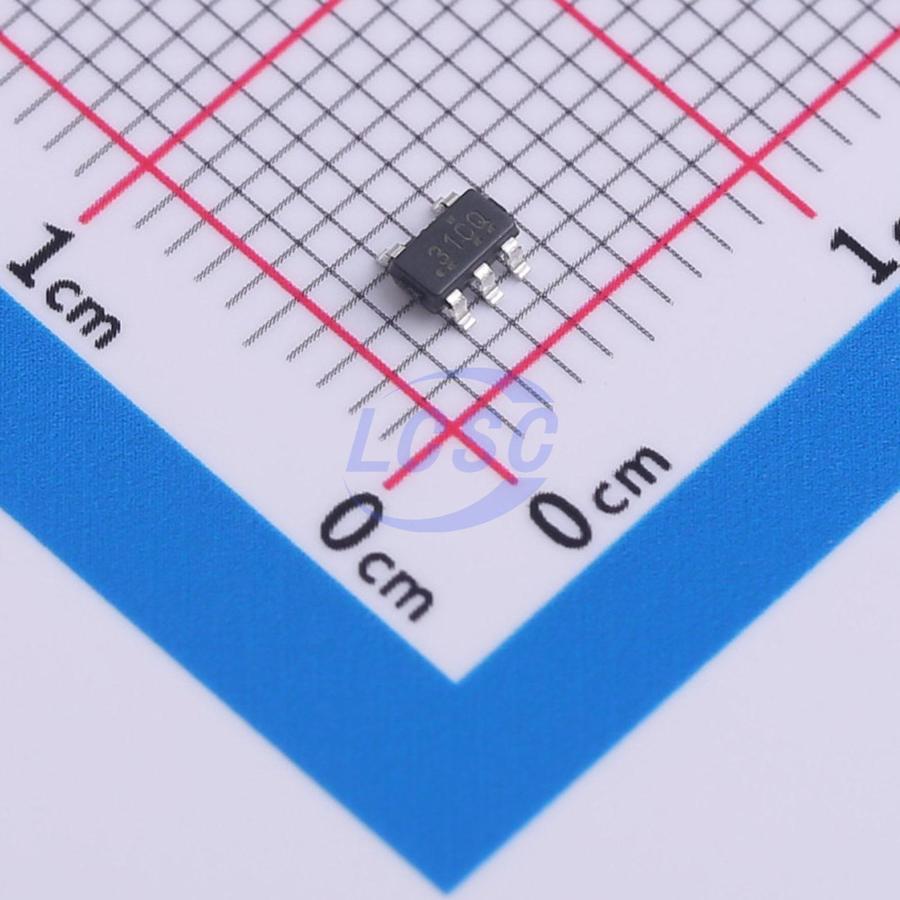

OPA186DBVR
20mA 1 1uV 0.35V/us 146dB 5pA 750kHz 90uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
OPAx186 Precision, Rail-to-Rail Input/Output, 24-V, Zero-Drift Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OPA186DBVR
- Store part #
- C20345565
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,638 in stock
#C20345565
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.11 | ₹156.11 |
| 10+ | ₹138.12 | ₹1,381.20 |
| 30+ | ₹120.99 | ₹3,629.70 |
| 100+ | ₹108.42 | ₹10,842.00 |
| 500+ | ₹103.21 | ₹51,605.00 |
| 1,000+ | ₹100.61 | ₹1,00,610.00 |
1 × ₹156.11
₹156.11
excl. GST
₹184.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA186DBVR
₹156.11 for 1 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 0.35V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 146dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Gain Bandwidth Product
- 750kHz
- Quiescent Current
- 90uA
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;Reverse-phase input protection;ESD protection
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -12V~-2.25V;2.25V~12V
- Single Supply
- 4.5V~24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The OPA186, OPA2186, and OPA4186 (OPAx186) are low-power, 24-V, rail-to-rail input and output, zerodrift operational amplifiers (op amps). These op amps feature only 10 μv of offset voltage (maximum) and 0.04 μV/°C of offset voltage drift over temperature (maximum). These devices are a great choice for precision instrumentation, signal measurement, and active-filtering applications. The low quiescent current consumption of 90 μA makes the OPAx186 an excellent option for powersensitive applications, such as battery-powered instrumentation and portable systems.
Applications
- PC PSU and game console unit
- Merchant DC/DC
- Flow transmitter
- Pressure transmitter
- Merchant battery charger
- Electricity meter
Key features
- High precision
- Offset drift: 0.01 μV/°C
- Low offset voltage: 1 μV
- Low quiescent current: 90 μA
- Excellent dynamic performance
- Gain bandwidth: 750 kHz
- Slew rate: 0.35 V/μs
- Robust design
- RFI/EMI filtered inputs
- Rail-to-rail input/output
- Supply range: 4.5 V to 24 V
- Temperature: -40°C to +125°C
