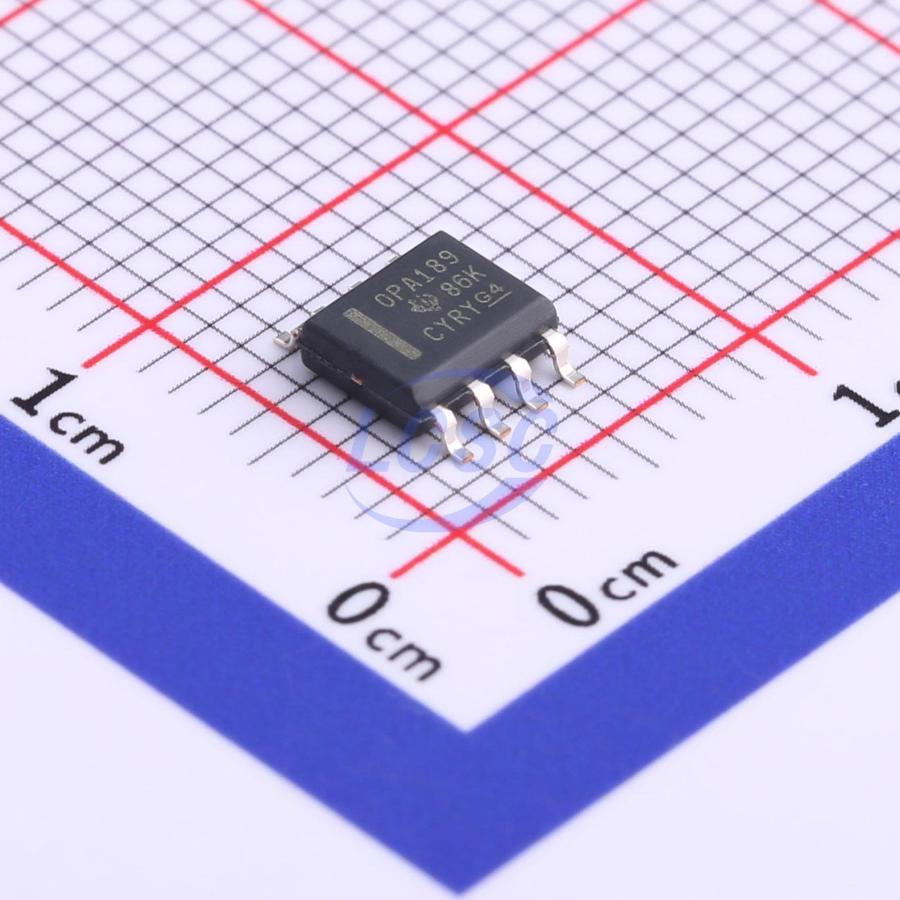

OPA189IDR

65mA 1 3uV 20V/us 168dB 70pA 1.7mA 14MHz Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS3 CompliantActive

High-precision, ultra-low noise, rail-to-rail output operational amplifier

Manufacturer: TI
Manufacturer part #: OPA189IDR
Store part #: C781811
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,146 in stock

#C781811

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹181.78	₹181.78
10+	₹149.34	₹1,493.40
30+	₹131.49	₹3,944.70
100+	₹111.46	₹11,146.00
500+	₹102.53	₹51,265.00
1,000+	₹98.40	₹98,400.00

Quantity (min 1)

1 × ₹181.78

₹181.78

excl. GST

₹214.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA189IDR

₹181.78 for 1 + GST

Specifications

Output Current: 65mA
Number of Channels: 1
Vos - Input Offset Voltage: 3uV
Slew Rate: 20V/us
Input Offset Current(Ios): 140pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 168dB
Ib - Input Bias Current: 70pA
Input Offset Voltage Drift(Vos TC): 5nV/℃
Quiescent Current: 1.7mA
Gain Bandwidth Product: 14MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression;Reverse-phase input protection;ESD protection
Input Voltage Noise Density: 5.2nV/√Hz@1kHz
Dual Supply: -18V~-2.25V;2.25V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The OPAx189 (OPA189 and OPA2189) series high-precision op amps feature ultra-low noise, fast settling time, and zero temperature drift, with rail-to-rail output operation, a unique MUX-friendly architecture, and a controlled turn-on system. These characteristics, combined with excellent AC performance, an offset voltage of only 0.4μV, and a temperature drift of 0.005μV/°C, make the OPAx189 ideal for high-precision instrumentation, signal measurement, and active filter applications. Additionally, the MUX-friendly input architecture prevents surge current when large differential input voltages are applied, improving settling time performance in multiplexed systems while providing robust ESD protection during shipping, handling, and assembly. All device versions are rated for an operating temperature range of -40°C to +125°C.

Applications

High-precision multichannel systems
Bridge amplifiers
Strain gauges
Temperature measurement RTDs

Key features

Ultra-high precision:
Zero temperature drift: 0.005μV/°C
Ultra-low offset voltage: 3μV (maximum)
Excellent DC accuracy:
CMRR: 168dB
Open-loop gain: 170dB
Low noise:
θn at 1kHz: 5.2 nV/√Hz
0.1Hz to 10Hz noise: 0.1μVPP
Excellent dynamic performance:
Gain bandwidth: 14MHz
Slew rate: 20V/μs
Fast settling time: 10V step, to 0.01% within 1.1μs
Robust design:
MUX-friendly inputs
RFI/EMI filtered inputs
OPAx189 maintains R-C settling time performance in switching or multiplexing applications
