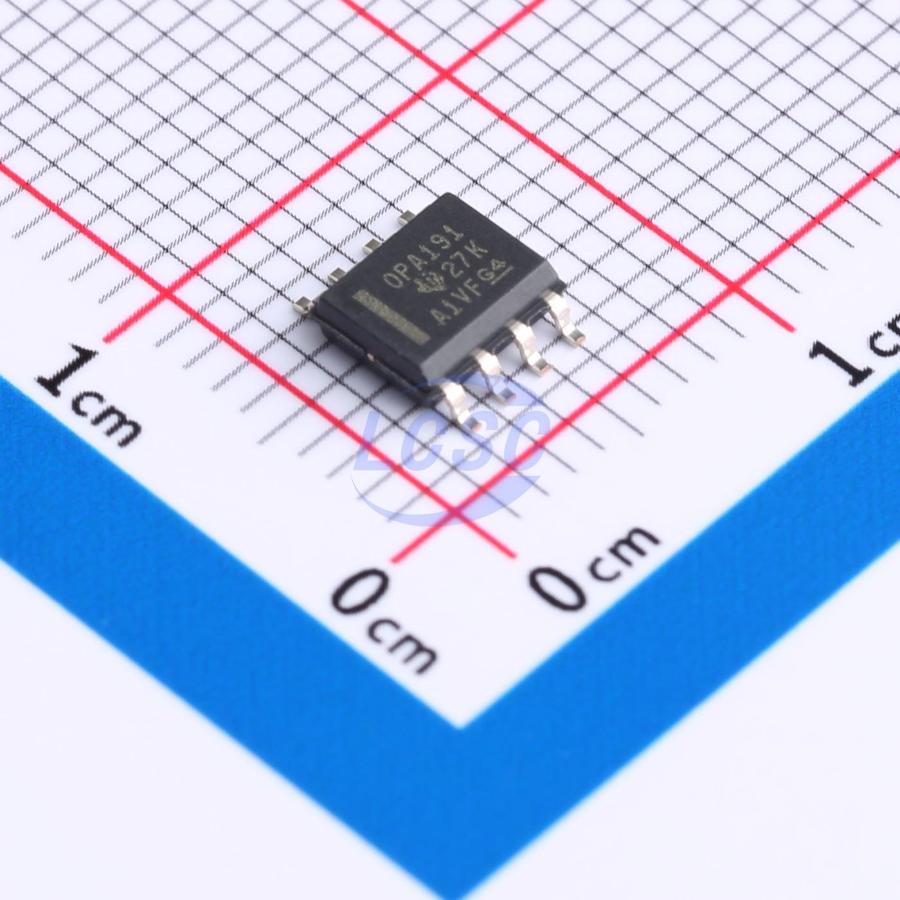

OPA191IDR

The OPAx191 series (OPA191, OPA2191, and OPA4191) is a new generation of 36V e-trim™ operational amplifiers. These devices feature excellent DC accuracy and AC performance, including rail-to-rail input/output, low offset voltage (typical: ±5μV), low offset drift (typical: ±0.2μV/°C), and a 2MHz bandwidth. The OPAx191 has unique features such as a differential input voltage range up to the supply rails, high output current (±65mA), high capacitive load drive up to 1nF, and a high slew rate (5V/μs). It is a stable and reliable high-performance operational amplifier suitable for various high-voltage industrial applications. The OPAx191 series operational amplifiers are available in standard packages and operate over a rated temperature range of -40°C to +125°C.

Applications

• Analog input modules
• Mixed modules (AI, AO, DI, DO)
• Data acquisition (DAQ)
• Source measure units (SMU)
• Pressure transmitters
• Train control and management systems
• Laboratory and field instrumentation
• High-voltage multiplexed data acquisition systems

Key features

• Low offset voltage: ±5μV
• Low offset voltage drift: ±0.1μV/°C
• Low noise: 15nV/√Hz at 1kHz
• High common-mode rejection: 140 dB
• Low bias current: ±5pA
• Rail-to-rail input and output
• Wide bandwidth: 2.5MHz GBW
• High slew rate: 5 V/μs
• Low quiescent current: 140μA per amplifier
• Wide supply voltage: ±2.25V to ±18V, 4.5V to 36V
• EMI/RFI filtered inputs
• Differential input voltage range up to supply rails
• High capacitive load drive capability: 1nF
• Industry-standard packages:
• Single: SOIC-8, SOT-5, and VSSOP-8
• Dual: SOIC-8 and VSSOP-8
• Quad: SOIC-14, TSSOP-14, and WQFN-16
