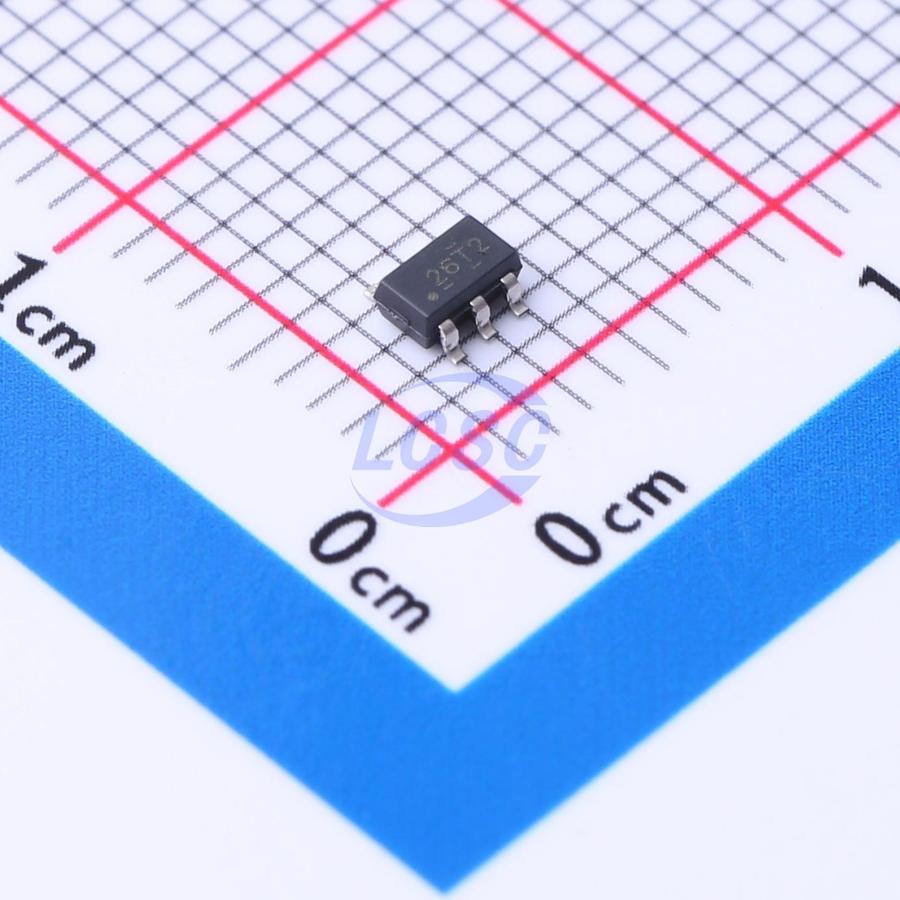

OPA210IDBVR

65mA 1 5uV 6.4V/us 300pA 132dB 2.5mA 18MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

OPAx210 2.2nV/√Hz Precision Low-Power 36V Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA210IDBVR
Store part #: C4367208
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

38 in stock

#C4367208

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹790.25	₹790.25
10+	₹689.11	₹6,891.10
30+	₹627.47	₹18,824.10
100+	₹570.38	₹57,038.00

Quantity (min 1)

1 × ₹790.25

₹790.25

excl. GST

₹932.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA210IDBVR

₹790.25 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 65mA
Number of Channels: 1
Vos - Input Offset Voltage: 5uV
Slew Rate: 6.4V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 300pA
Common Mode Rejection Ratio(CMRR): 132dB
Input Offset Voltage Drift(Vos TC): 100nV/℃
Quiescent Current: 2.5mA
Gain Bandwidth Product: 18MHz
Features: Reverse-phase input protection;ESD protection
Input Voltage Noise Density: 2.2nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Dual Supply: -18V~-2.25V;2.25V~18V
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.092 g
