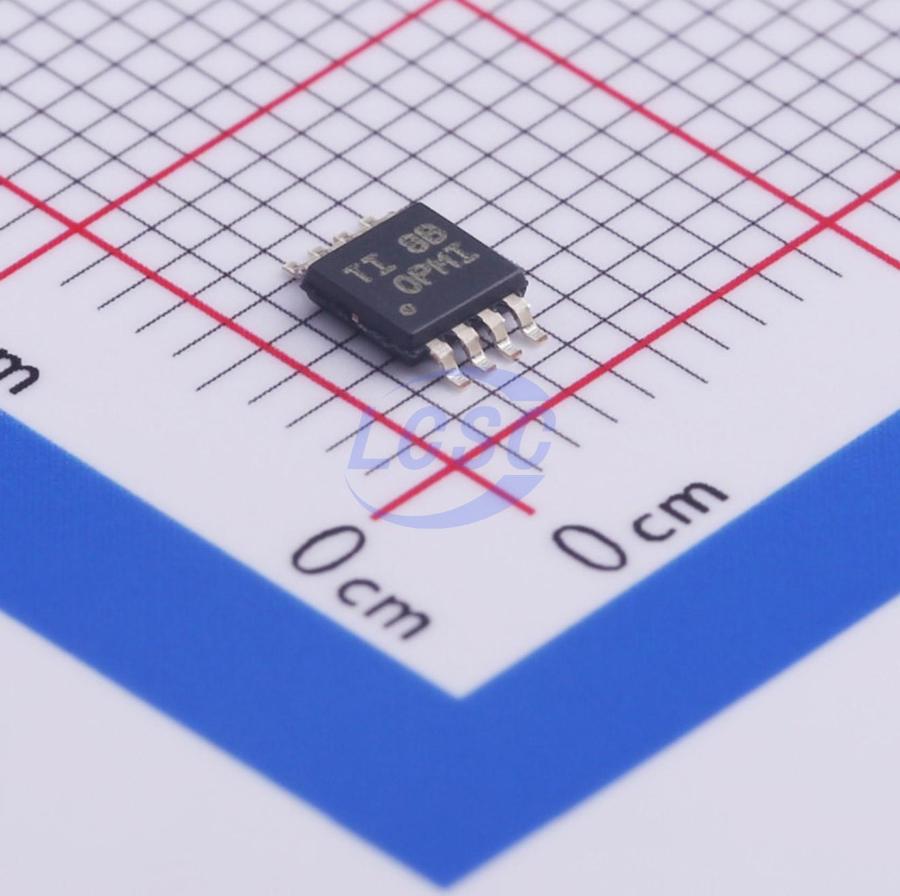

OPA2171AIDGKR

The OPA171, OPA2171, and OPA4171 (OPAx171) are a family of 36-V, single-supply, low-noise operational amplifiers with the ability to operate on supplies ranging from 2.7 V (±1.35 V) to 36 V (±18 V). These devices are available in micro-packages and offer low offset, drift, and bandwidth with low quiescent current. The single, dual, and quad versions all have identical specifications for maximum design flexibility. Unlike most operational amplifiers, which are specified at only one supply voltage, the OPAx171 family is specified from 2.7 to 36 V. Input signals beyond the supply rails do not cause phase reversal. The OPAx171 family is stable with capacitive loads up to 300 pF. The input can operate 100 mV below the negative rail and within 2 V of the top rail during normal operation. These devices can operate with full rail-to-rail input 100 mV beyond the top rail, but with reduced performance within 2 V of the top rail. The OPAx171 series of operational amplifiers are specified from -40°C to +125°C.

Applications

• Tracking Amplifier in Power Modules
• Merchant Power Supplies
• Transducer Amplifiers
• Bridge Amplifiers
• Temperature Measurements
• Strain Gauge Amplifiers
• Precision Integrators
• Battery-Powered Instruments
• Test Equipment

Key features

• Supply Range: 2.7 to 36 V, ±1.35 V to ±18 V
• Low Noise: 14 nV/√Hz
• Low Offset Drift: ±0.3 μV/°C (Typical)
• RFI Filtered Inputs
• Input Range Includes The Negative Supply Input Range Operates To Positive Supply
• Rail-to-Rail Output
• Gain Bandwidth: 3 MHz
• Low Quiescent Current: 475 μA per Amplifier
• High Common-Mode Rejection: 120 dB (Typical)
• Low-Input Bias Current: 8 pA
• Industry-Standard Packages: 8-Pin SOIC, 8-Pin MSOP, 14-Pin TSSOP
• microPackages: Single in SOT-553, Dual in VSSOP-8
