TIDatasheet (PDF)

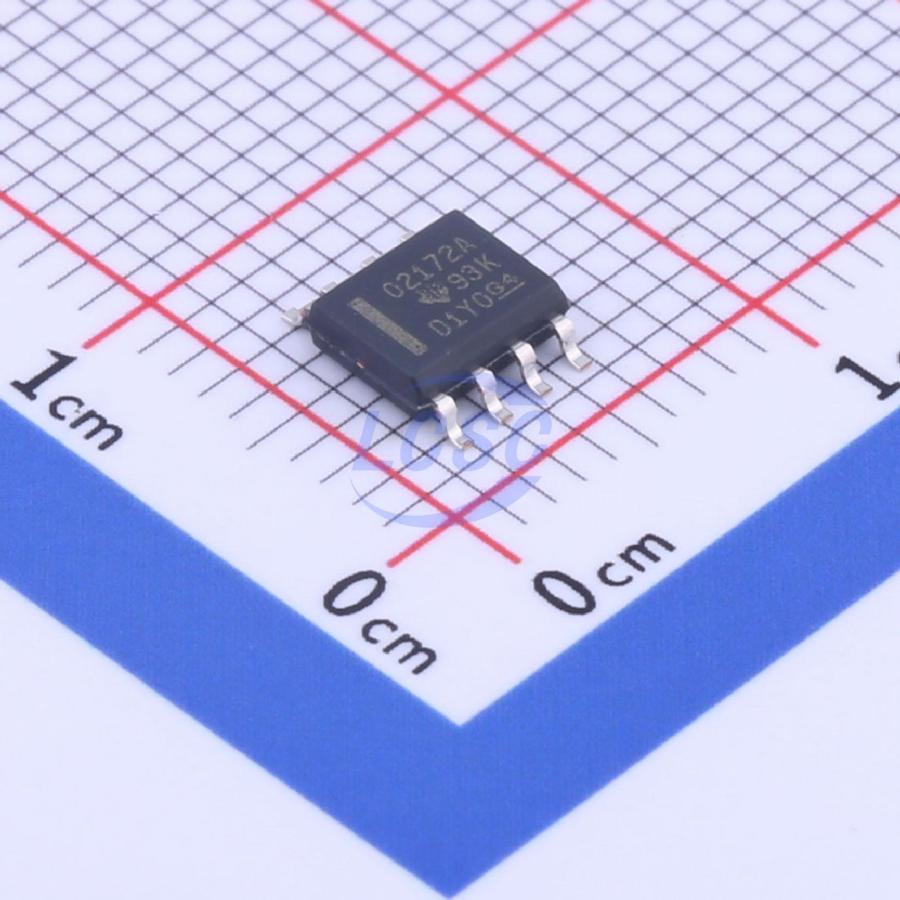

OPA2172IDR
75mA 2 200uV 10V/us 120dB 8pA 1.6mA 10MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
OPAx172 36V Single-Supply Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA2172IDR
- Store part #
- C545167
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,445 in stock
#C545167
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹309.75 | ₹309.75 |
| 10+ | ₹261.09 | ₹2,610.90 |
| 30+ | ₹234.38 | ₹7,031.40 |
| 100+ | ₹204.19 | ₹20,419.00 |
| 500+ | ₹190.72 | ₹95,360.00 |
| 1,000+ | ₹184.64 | ₹1,84,640.00 |
1 × ₹309.75
₹309.75
excl. GST
₹365.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2172IDR
₹309.75 for 1 + GST
Specifications
- Output Current
- 75mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 8pA
- Input Offset Voltage Drift(Vos TC)
- 300nV/℃
- Quiescent Current
- 1.6mA
- Gain Bandwidth Product
- 10MHz
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 7nV/√Hz@1kHz
- Dual Supply
- -18V~-2.25V;2.25V~18V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4.5V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
Overview
The OPA172, OPA2172, and OPA4172 (OPAx172) belong to a family of 36V, single-supply, low-noise operational amplifiers that can operate from +4.5V (±2.25V) to +36V. These CMOS operational amplifiers, when paired with the OPAx171 and OPAx170, offer users a wide range of bandwidth, noise, and power options to meet the needs of various applications. The OPAx172 comes in a miniature package and provides low offset, drift, and quiescent current. These devices also offer wide bandwidth, fast slew rate, and high output current drive capability. The single-channel, dual-channel, and quad-channel versions all have the same technical specifications to maximize design flexibility. Unlike most operational amplifiers that are rated to operate at only one supply voltage, the OPAx172 family is rated to operate over a voltage range of +4.5V to +36V. Input signals that exceed the supply rails do not cause phase reversal. The inputs can operate normally 100mV below the negative supply rail and within 2V of the positive supply rail. Note that these devices can operate with full rail-to-rail inputs up to 100mV above the positive supply rail, but performance is affected when operating within 2V of the positive supply rail. The OPAx172 family of operational amplifiers is rated for an operating temperature range of -40°C to +125°C.
Applications
- Tracking amplifiers in power supply modules
- Commercial power sensor amplifiers
- Bridge amplifier temperature measurement
- Strain gauge amplifiers
- Precision integrator test equipment
Key features
- Wide supply range: +4.5V to +36V, ±2.25V to ±18V
- Low offset voltage: ±0.2mV
- Low offset drift: ±0.3μV/°C
- Gain bandwidth: 10MHz
- Low input bias current: ±8pA
- Low quiescent current: 1.6mA per amplifier
- Low noise: 7nV/√Hz
- EMI and RFI filtered inputs; input range includes negative supply
- Input range operates to positive supply
- Rail-to-rail output
- High common-mode rejection: 120dB
- Industry-standard packages: SOIC-8, VSSOP-8, SOIC-14, TSSOP-14
- Miniature packages: SC70 and SOT-23 for single-supply versions; WSON-8 for dual-supply versions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA2172ID#C1347736TI · SOIC-8 | TI | SOIC-8 | 35 | ₹443.18 · 35 in stock | View |
 | RS8452XK#C2762307RUNIC · SOP-8 | RUNIC | SOP-8 | 1,620 | ₹56.16 · 1,620 in stock | View |
 | HT5534ARZ#C2928794HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 1,185 | ₹36.05 · 1,185 in stock | View |
 | COS2172SRA#C7434393COSINE · SOP-8 | COSINE | SOP-8 | 413 | ₹71.15 · 413 in stock | View |
 | COS2172SRB#C7434394COSINE · SOP-8 | COSINE | SOP-8 | 1,380 | ₹39.48 · 1,380 in stock | View |
