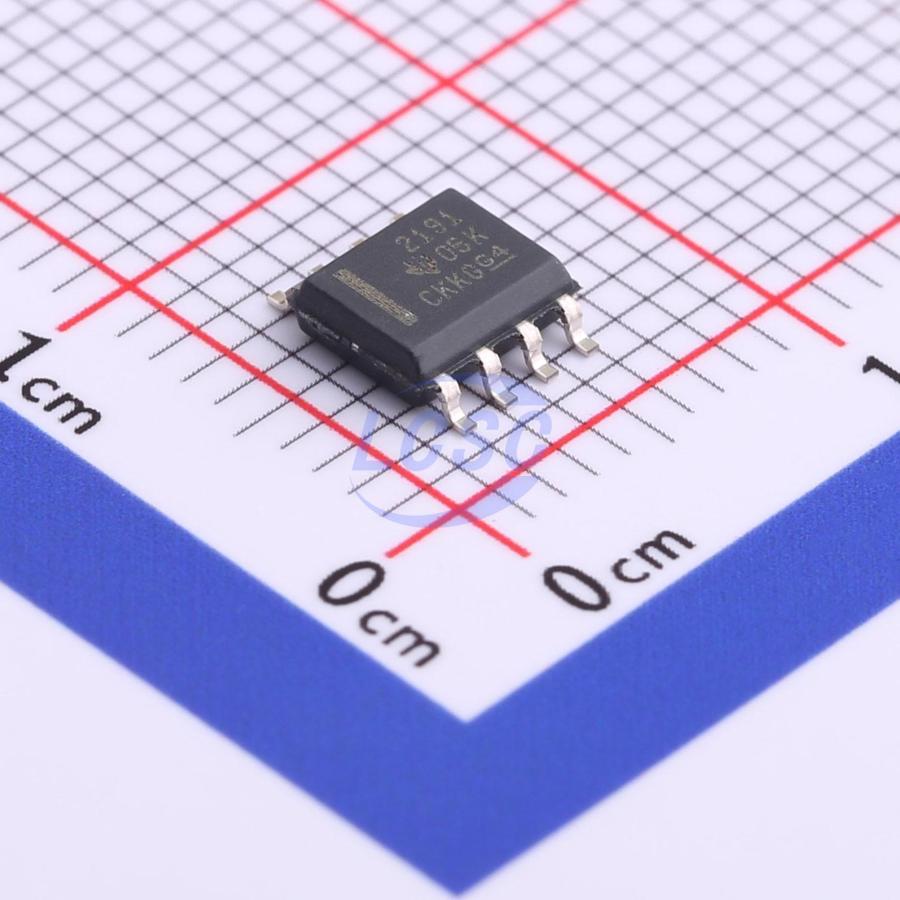

OPA2191IDR

65mA 2 5uV 5V/us 5pA 140dB 2.5MHz 140uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

OPAx191 36V Low-Power, CMOS, Rail-to-Rail Input/Output, Low Offset Voltage, Low Input Bias Current Precision Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA2191IDR
Store part #: C543015
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,053 in stock

#C543015

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹434.38	₹434.38
10+	₹382.89	₹3,828.90
30+	₹350.50	₹10,515.00
100+	₹317.48	₹31,748.00
500+	₹302.70	₹1,51,350.00
1,000+	₹296.18	₹2,96,180.00

Quantity (min 1)

1 × ₹434.38

₹434.38

excl. GST

₹512.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2191IDR

₹434.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 65mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 5V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 5pA
Common Mode Rejection Ratio(CMRR): 140dB
Input Offset Voltage Drift(Vos TC): 100nV/℃
Gain Bandwidth Product: 2.5MHz
Quiescent Current: 140uA
Features: EMI filtering/RF suppression;Reverse-phase input protection
Input Voltage Noise Density: 15nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -18V~-2.25V;2.25V~18V
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.67 g

Overview

The OPAx191 series (OPA191, OPA2191, and OPA4191) is a new generation of 36V e-trim™ operational amplifiers. These devices feature excellent DC accuracy and AC performance, including rail-to-rail input/output, low offset voltage (typical: ±5μV), low offset drift (typical: ±0.2μV/°C), and a 2MHz bandwidth. The OPAx191 has unique features such as a differential input voltage range up to the supply rails, high output current (±65mA), high capacitive load drive up to 1nF, and a high slew rate (5V/μs). It is a stable and reliable high-performance operational amplifier suitable for various high-voltage industrial applications. The OPAx191 series operational amplifiers are available in standard packages and operate over a rated temperature range of -40°C to +125°C.

Applications

Analog input modules
Mixed modules (AI, AO, DI, DO)
Data acquisition (DAQ)
Source measure units (SMU)
Pressure transmitters
Train control and management systems
Laboratory and field instrumentation
High-voltage multiplexed data acquisition systems

Key features

Low offset voltage: ±5μV
Low offset voltage drift: ±0.1μV/°C
Low noise: 15nV/√Hz at 1kHz
High common-mode rejection: 140 dB
Low bias current: ±5pA
Rail-to-rail input and output
Wide bandwidth: 2.5MHz GBW
High slew rate: 5 V/μs
Low quiescent current: 140μA per amplifier
Wide supply voltage: ±2.25V to ±18V, 4.5V to 36V
EMI/RFI filtered inputs
Differential input voltage range up to supply rails
High capacitive load drive capability: 1nF
Industry-standard packages:
Single: SOIC-8, SOT-5, and VSSOP-8
Dual: SOIC-8 and VSSOP-8
Quad: SOIC-14, TSSOP-14, and WQFN-16
