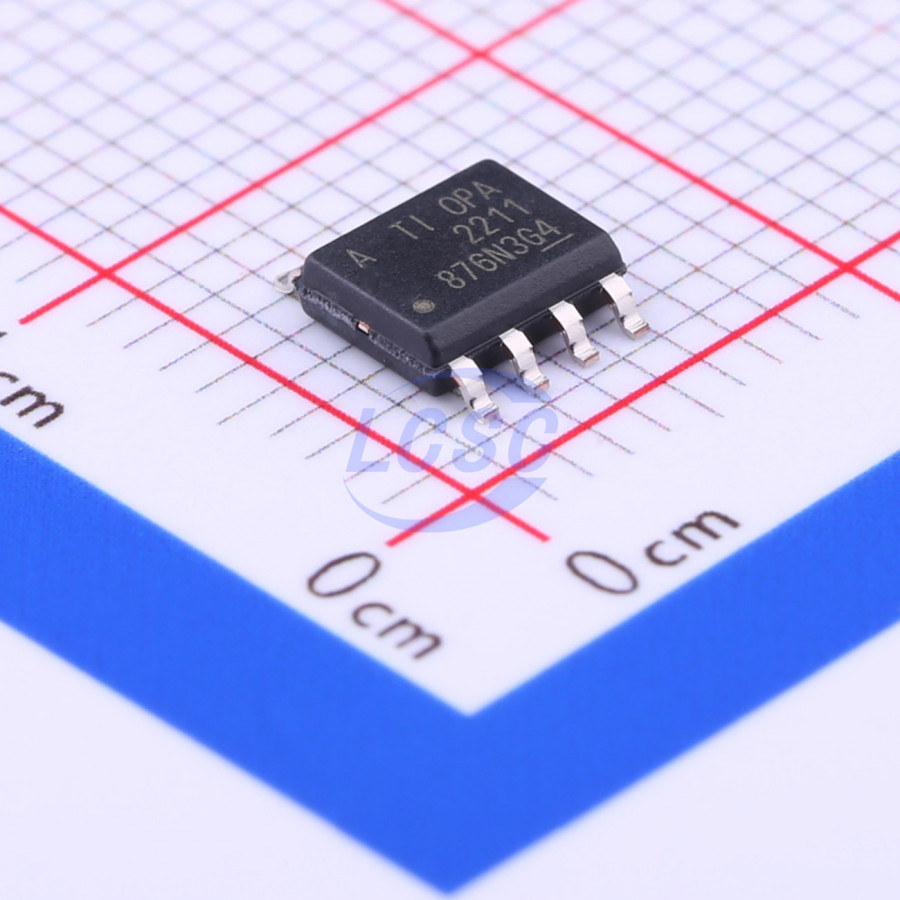

OPA2211AIDDAR

30mA 2 150uV 27V/us 114dB 60nA 3.6mA 45MHz Rail-to-rail output SOIC-8-EP Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8-EPROHS3 CompliantActive

1.1nV/√Hz Noise, Low Power, Precision Operational Amplifier in Small DFN-8 Package

Manufacturer: TI
Manufacturer part #: OPA2211AIDDAR
Store part #: C35707
Package / case: SOIC-8-EP
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,435 in stock

#C35707

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,109.85	₹1,109.85
10+	₹952.60	₹9,526.00
30+	₹856.81	₹25,704.30
100+	₹776.68	₹77,668.00

Quantity (min 1)

1 × ₹1,109.85

₹1,109.85

excl. GST

₹1,309.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2211AIDDAR

₹1,109.85 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 150uV
Slew Rate: 27V/us
Input Offset Current(Ios): 25nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 114dB
Ib - Input Bias Current: 60nA
Input Offset Voltage Drift(Vos TC): 350nV/℃
Quiescent Current: 3.6mA
Gain Bandwidth Product: 45MHz
Features: Built-in compensation
Input Voltage Noise Density: 1.1nV/√Hz@1kHz
Dual Supply: -18V~-2.25V;2.25V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The OPA211 series of precision operational amplifiers achieves very low 1.1nV/√Hz noise density with a supply current of only 3.6mA. This series also offers rail-to-rail output swing, which maximizes dynamic range. The extremely low voltage and low current noise, high speed, and wide output swing of the OPA211 series make these devices an excellent choice as a loop filter amplifier in PLL applications. In precision data acquisition applications, the OPA211 series of op amps provides 700ns settling time to 16-bit accuracy throughout 10V output swings. This ac performance, combined with only 125μV of offset and 0.35μV/°C of drift over temperature, makes the OPA211 ideal for driving high-precision 16-bit analog-to-digital converters (ADCs) or buffering the output of high-resolution digital-to-analog converters (DACs). The OPA211 series is specified over a wide dual-power supply range of ±2.25V to ±18V, or for single-supply operation from +4.5V to +36V. The OPA211 is available in the small DFN-8 (3mm×3mm), MSOP-8, and SO-8 packages. A dual version, the OPA2211, is available in the DFN-8 (3mm×3mm) or an SO-8 PowerPAD package. This series of op amps is specified from TA = -40°C to +125°C.
