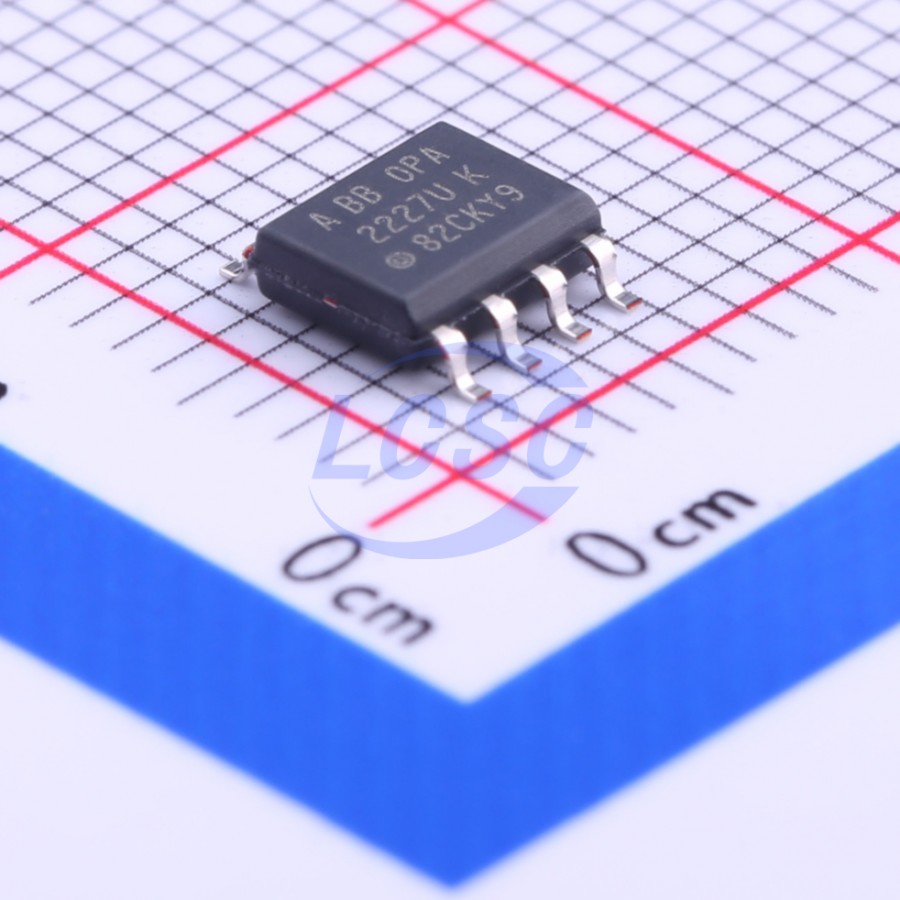

OPA2227UA/2K5

45mA 2 5uV 2.3V/us 120dB 2.5nA 3.7mA 8MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

High Precision, Low Noise OPERATIONAL AMPLIFIERS

Manufacturer: TI
Manufacturer part #: OPA2227UA/2K5
Store part #: C19308
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,078 in stock

#C19308

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹249.35	₹249.35
10+	₹210.67	₹2,106.70
30+	₹186.36	₹5,590.80
100+	₹161.59	₹16,159.00
500+	₹150.52	₹75,260.00
1,000+	₹145.53	₹1,45,530.00

Quantity (min 1)

1 × ₹249.35

₹249.35

excl. GST

₹294.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2227UA/2K5

₹249.35 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 45mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 2.3V/us
Input Offset Current(Ios): 2.5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 120dB
Ib - Input Bias Current: 2.5nA
Input Offset Voltage Drift(Vos TC): 100nV/℃
Quiescent Current: 3.7mA
Gain Bandwidth Product: 8MHz
Features: Built-in compensation
Input Voltage Noise Density: 3nV/√Hz@1kHz
Dual Supply: -18V~-2.5V;2.5V~18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The OPA227 and OPA228 series op amps combine low noise and wide bandwidth with high precision to make them the ideal choice for applications requiring both ac and precision dc performance. The OPA227 is unity-gain stable and features high slew rate (2.3V/µs) and wide bandwidth (8MHz). The OPA228 is optimized for closed-loop gains of 5 or greater, and offers higher speed with a slew rate of 10V/µs and a bandwidth of 33MHz. The OPA227 and OPA228 series op amps are ideal for professional audio equipment. In addition, low quiescent current and low cost make them ideal for portable applications requiring high precision. The OPA227 and OPA228 series op amps are pin-for-pin replacements for the industry standard OP-27 and OP-37 with substantial improvements across the board. The dual and quad versions are available for space savings and perchannel cost reduction. The OPA227, OPA228, OPA2227, and OPA2228 are available in DIP-8 and SO-8 packages. The OPA4227 and OPA4228 are available in DIP-14 and SO-14 packages with standard pin configurations. Operation is specified from -40°C to +85°C.
