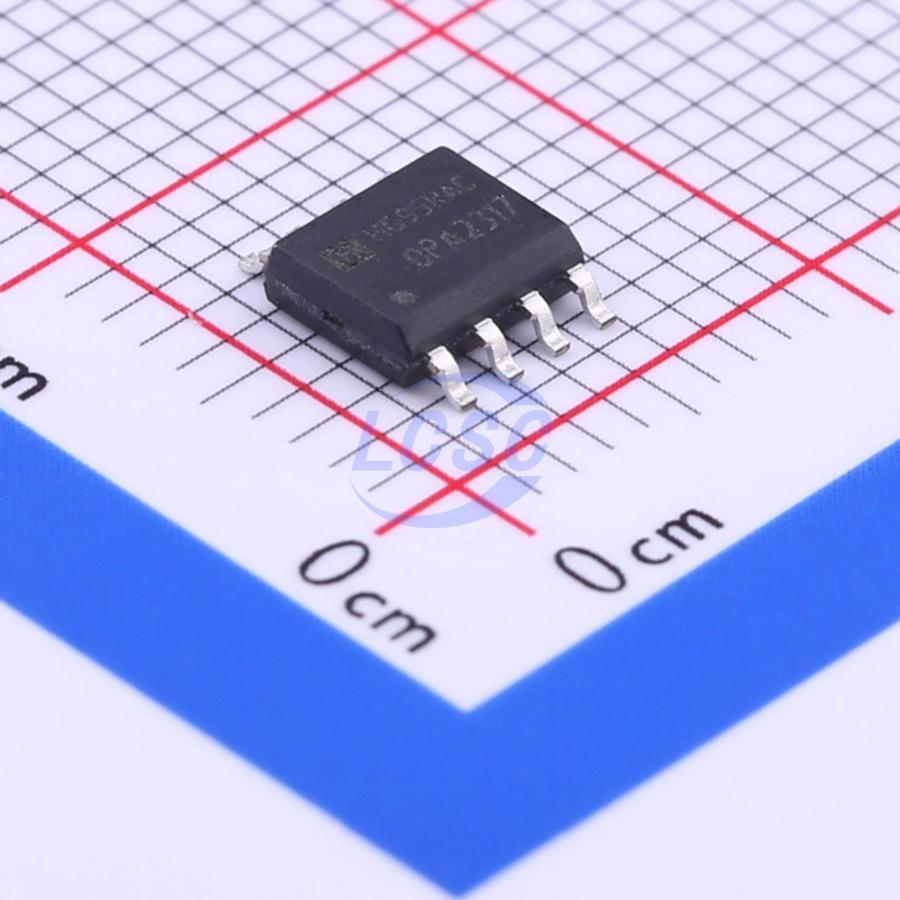

OPA2317M/TR

30mA 10uV 0.2V/us 20pA 110dB 25uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Zero-Drift CMOS Rail-to-Rail I/O Opamp

Manufacturer: HGSEMI
Manufacturer part #: OPA2317M/TR
Store part #: C398147
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,705 in stock

#C398147

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
1+	₹98.97	₹98.97
10+	₹79.18	₹791.80
30+	₹69.39	₹2,081.70
100+	₹59.61	₹5,961.00
500+	₹53.74	₹26,870.00
1,000+	₹50.68	₹50,680.00

Quantity (min 1)

1 × ₹98.97

₹98.97

excl. GST

₹116.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2317M/TR

₹98.97 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Vos - Input Offset Voltage: 10uV
Slew Rate: 0.2V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 50nV/℃
Quiescent Current: 25uA
Gain Bandwidth Product: 350kHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.401 g
