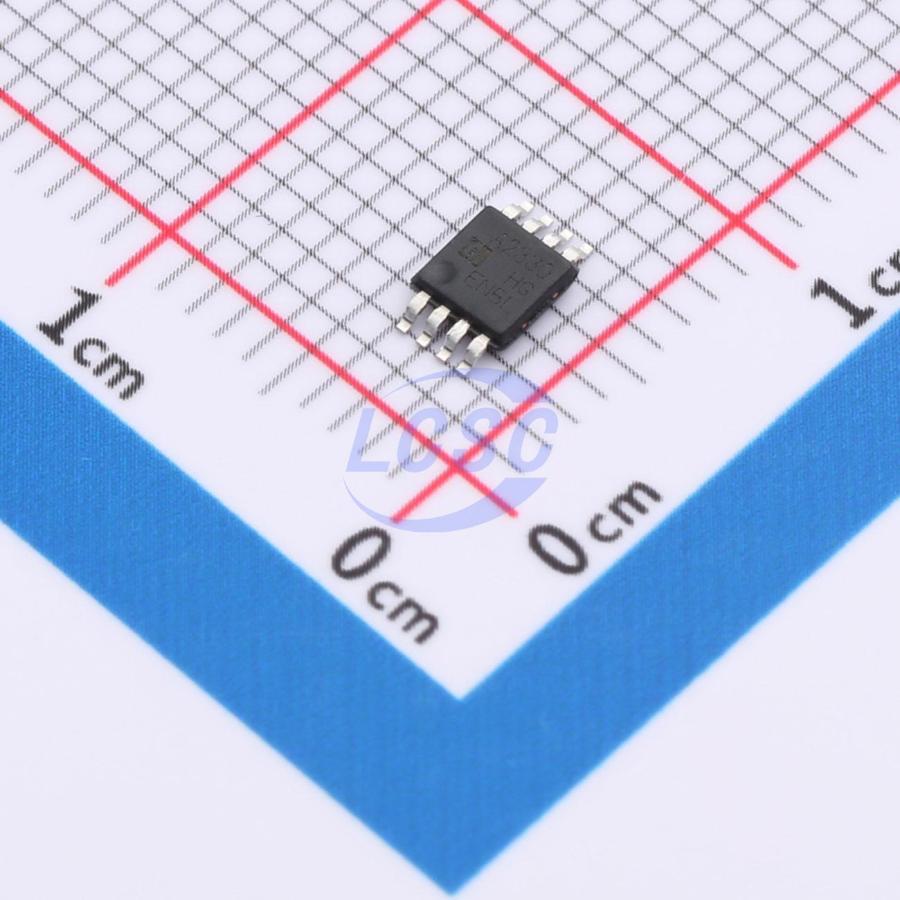

OPA2330MM/TR

30mA 10uV 0.2V/us 110dB 20pA 25uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: OPA2330MM/TR
Store part #: C3007902
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,972 in stock

#C3007902

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
1+	₹46.21	₹46.21
10+	₹40.63	₹406.30
30+	₹38.26	₹1,147.80
100+	₹35.26	₹3,526.00
500+	₹32.24	₹16,120.00
1,000+	₹31.38	₹31,380.00

Quantity (min 1)

1 × ₹46.21

₹46.21

excl. GST

₹54.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA2330MM/TR

₹46.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Vos - Input Offset Voltage: 10uV
Slew Rate: 0.2V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 20pA
Input Offset Voltage Drift(Vos TC): 50nV/℃
Quiescent Current: 25uA
Gain Bandwidth Product: 350kHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 70nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.15 g
