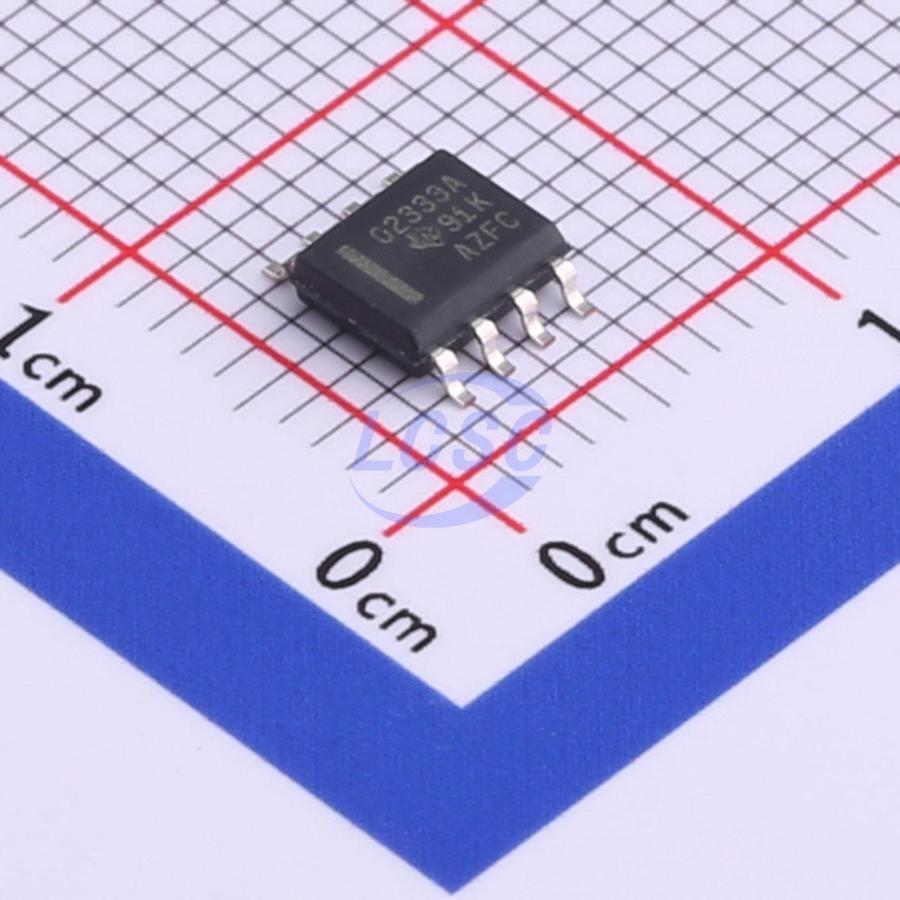

OPA2333AIDR

The OPA333 series of CMOS operational amplifiers use a proprietary auto-calibration technique to simultaneously provide very low offset voltage (10 μV, max) and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers offer high-impedance inputs that have a common-mode range 100 mV beyond the rails, and rail-to-rail output that swings within 50 mV of the rails. Single or dual supplies as low as +1.8 V (±0.9 V) and up to +5.5 V (±2.75 V) can be used. These devices are optimized for low-voltage, single-supply operation. The OPA333 family offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity. The OPA333 (single version) is available in the SC70-5, SOT23-5, and SO-8 packages. The OPA2333 (dual version) is offered in DFN-8 (3 mm × 3 mm), MSOP-8, and SO-8 packages. All versions are specified for operation from -40°C to +125°C.

Applications

• Transducers
• Temperature Measurements
• Electronic Scales
• Medical Instrumentation
• Battery-Powered Instruments
• Handheld Test Equipment

Key features

• Low Offset Voltage: 10 μV (max)
• Zero Drift: 0.05 μV/°C (max)
• 0.01-Hz to 10-Hz Noise: 1.1 μVPP
• Quiescent Current: 17 μA
• Single-Supply Operation
• Supply Voltage: 1.8 V to 5.5 V
• Rail-to-Rail Input/Output
• microSize Packages: SC70 and SOT23
