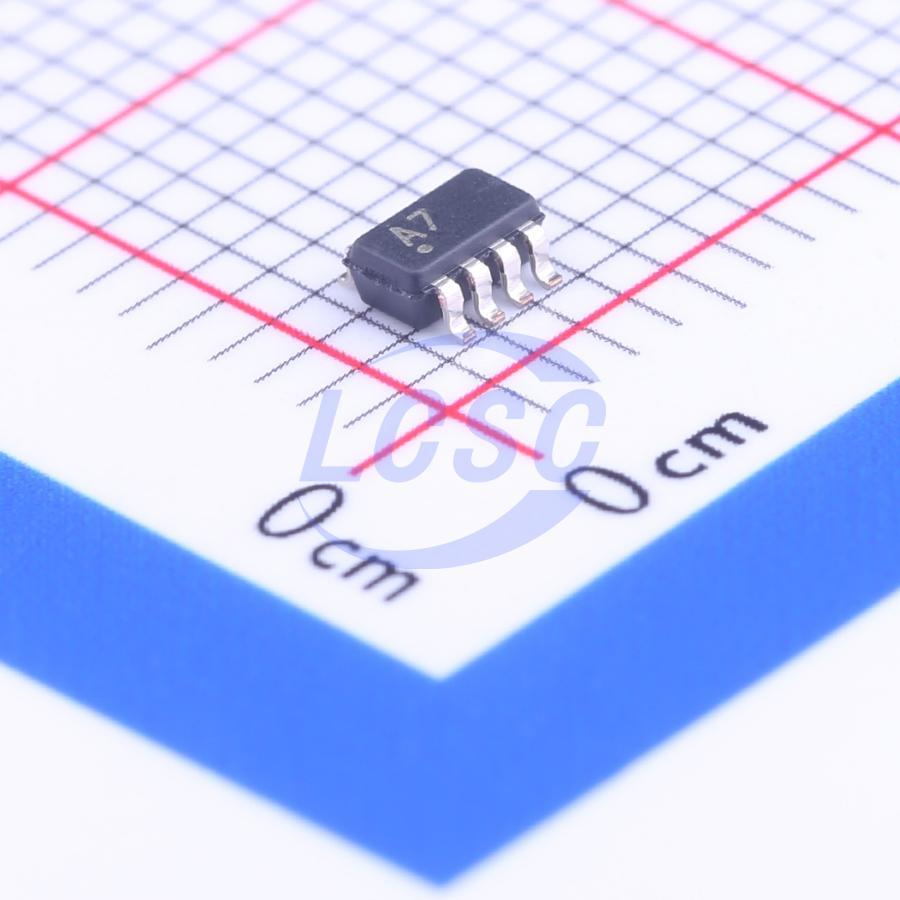

OPA2337EA/3K

9mA 2 500uV 1.2V/us 74dB 0.2pA 525uA 3MHz Rail-to-rail output SOT-23-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-8ROHS3 CompliantActive

MicroSIZE, Single-Supply CMOS Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA2337EA/3K
Store part #: C128398
Package / case: SOT-23-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,851 in stock

#C128398

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹114.05	₹114.05
10+	₹91.14	₹911.40
30+	₹79.59	₹2,387.70
100+	₹68.21	₹6,821.00
500+	₹61.36	₹30,680.00
1,000+	₹57.93	₹57,930.00

Quantity (min 1)

1 × ₹114.05

₹114.05

excl. GST

₹134.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA2337EA/3K

₹114.05 for 1 + GST

Specifications

Output Current: 9mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 1.2V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 74dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 525uA
Gain Bandwidth Product: 3MHz
Features: Built-in compensation;Reverse-phase input protection
Input Voltage Noise Density: 26nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

The OPA337 and OPA338 series rail-to-rail output CMOS operational amplifiers are designed for low cost and miniature applications. Packaged in the SOT23-8, the OPA2337EA and OPA2338EA are the smallest dual op amps. At 1/4 the size of a conventional SO-8 surface-mount, they are ideal for space-sensitive applications. Utilizing advanced CMOS technology, the OPA337 and OPA338 op amps provide low bias current, high-speed operation, high open-loop gain, and rail-to-rail output swing. They operate on a single supply with operation as low as 2.5V while drawing only 525μA quiescent current. In addition, the input common-mode voltage range includes ground—ideal for single-supply operation. The OPA337 series is unity-gain stable. The OPA338 series is optimized for gains greater than or equal to 5. They are easy-to-use and free from phase inversion and overload problems found in some other op amps. Excellent performance is maintained as the amplifiers swing to their specified limits. The dual versions feature completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.
