MSKSEMIDatasheet (PDF)

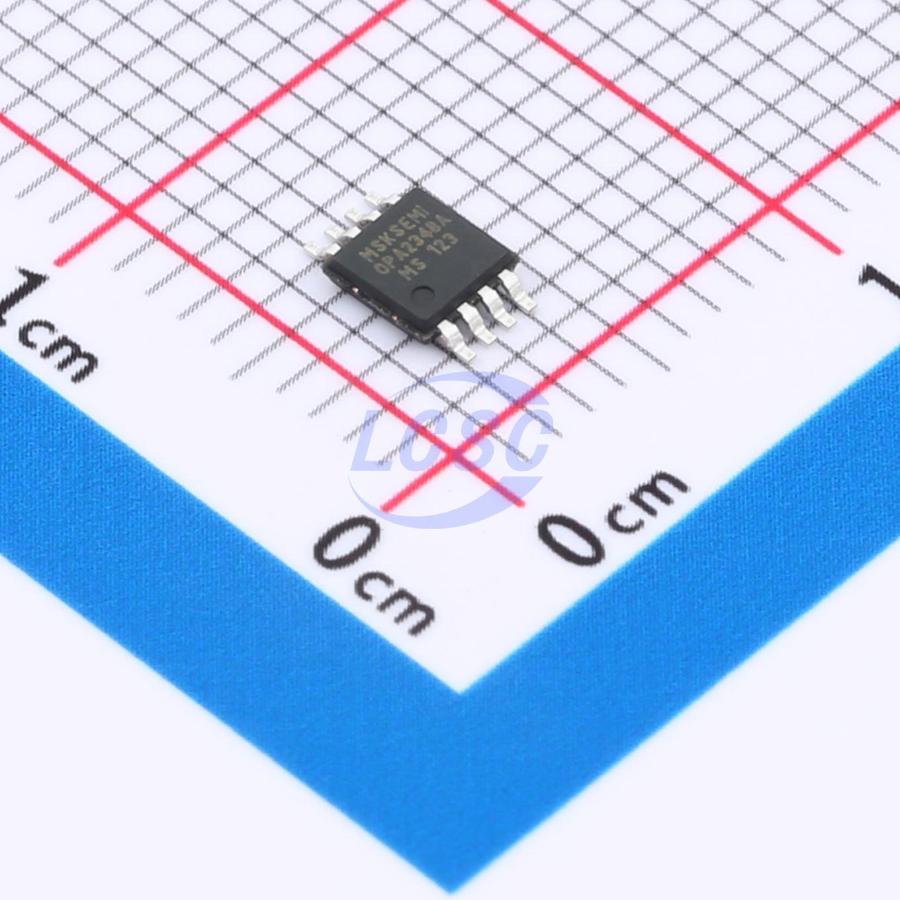

OPA2348AIDGKR-MS
2 500uV 1.2V/us 95dB 2pA 50uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps
VSSOP-8RoHSActive
Dual CMOS Operational Amplifiers: Low Offset Voltage, Near-Zero Drift, High Precision
- Manufacturer
- MSKSEMI
- Manufacturer part #
- OPA2348AIDGKR-MS
- Store part #
- C30200452
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,414 in stock
#C30200452
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.58 | ₹86.58 |
| 10+ | ₹76.87 | ₹768.70 |
| 30+ | ₹71.89 | ₹2,156.70 |
| 100+ | ₹67.14 | ₹6,714.00 |
| 500+ | ₹64.13 | ₹32,065.00 |
| 1,000+ | ₹62.62 | ₹62,620.00 |
1 × ₹86.58
₹86.58
excl. GST
₹102.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2348AIDGKR-MS
₹86.58 for 1 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 650nV/℃
- Quiescent Current
- 50uA
- Gain Bandwidth Product
- 1.5MHz
- Features
- Zero drift / auto-zero;Built-in compensation
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.154 g
