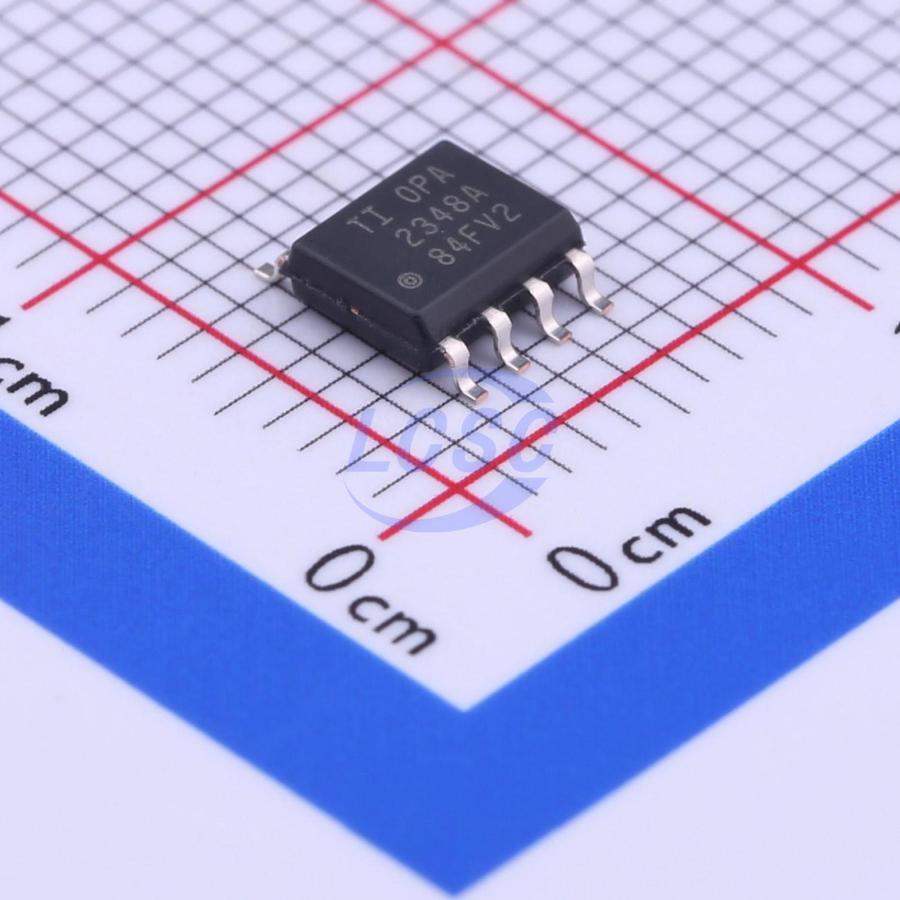

OPA2348AIDR

10mA 2 60uV 500V/ms 82dB 0.5pA 45uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

1MHz, 45uA, CMOS, Rail-to-Rail Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA2348AIDR
Store part #: C39740
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19,848 in stock

#C39740

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹83.96	₹83.96
10+	₹70.04	₹700.40
30+	₹63.95	₹1,918.50
100+	₹56.56	₹5,656.00
500+	₹50.25	₹25,125.00
1,000+	₹48.08	₹48,080.00

Quantity (min 1)

1 × ₹83.96

₹83.96

excl. GST

₹99.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2348AIDR

₹83.96 for 1 + GST

Specifications

Output Current: 10mA
Number of Channels: 2
Vos - Input Offset Voltage: 60uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 0.5pA
Input Offset Voltage Drift(Vos TC): 134uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The OPA348 series amplifiers are single supply, low power, CMOS op amps in micro packaging. Featuring an extended bandwidth of 1MHz, and a supply current of 45µA, the OPA348 series is useful for low power applications on single supplies of 2.1V to 5.5V. Low supply current of 45µA, and an input bias current of 0.5pA, make the OPA348 series an optimal candidate for low-power, high-impedance applications such as smoke detectors and other sensors. The OPA348 is available in the miniature SC70 - 5, SOT23 - 5 and SO - 8 packages. The OPA2348 is available in SOT23 - 8 and SO - 8 packages, and the OPA4348 is offered in space - saving TSSOP - 14 and SO - 14 packages. The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.

Applications

PORTABLE EQUIPMENT
BATTERY - POWERED EQUIPMENT
SMOKE ALARMS
CO DETECTORS
MEDICAL INSTRUMENTATION

Key features

LOW l₀: 45µA Typical
LOW COST
RAIL - TO - RAIL INPUT AND OUTPUT
SINGLE SUPPLY: +2.1V to +5.5V
INPUT BIAS CURRENT: 0.5pA
MicroSIZE PACKAGES: SC70 - 5, SOT23 - 8 and TSSOP - 14
HIGH SPEED: POWER WITH BANDWIDTH: 1MHz

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
HT2358ARZ#C2834451HTCSEMI · SOP-8	HTCSEMI	SOP-8	425	₹14.94 · 425 in stock	View
COS2348SR#C7588179COSINE · SOP-8	COSINE	SOP-8	2,225	₹17.48 · 2,225 in stock	View
OPA2348AID(UMW)#C21713887UMW · SOP-8	UMW	SOP-8	1,425	₹22.35 · 1,425 in stock	View
OPA2348M/TR#C444393HGSEMI · SOP-8	HGSEMI	SOP-8	2,630	₹28.47 · 2,630 in stock	View
OPA2348AQDRQ1#C2058120TI · SOIC-8	TI	SOIC-8	192	₹74.59 · 192 in stock	View
