OPA2357AIDGSR

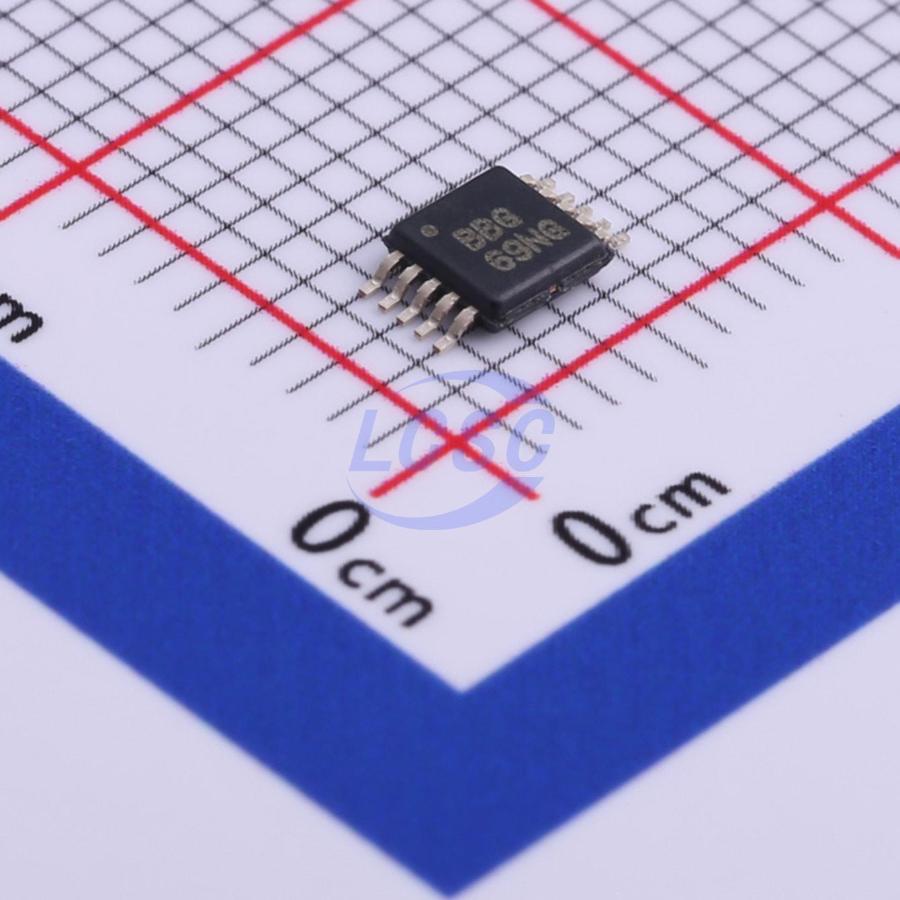

The OPA357 series of high-speed voltage-feedback CMOS operational amplifiers are designed for video applications and other applications requiring wide bandwidth. These devices are unity-gain stable and can drive large output currents. The differential gain is 0.02%, while the differential phase is 0.09°. The quiescent current is only 4.9 mA per channel. The OPA357 series of operational amplifiers are optimized for operation with single or dual supplies ranging from as low as 2.5 V (±1.25 V) to as high as 5.5 V (±2.75 V). The common-mode input range extends beyond the supply voltage range. The output swing is within 100 mV of the supply rails, supporting a wide dynamic range. The single-channel version (OPA357) comes in a small SOT23-6 package. The dual-channel version (OPA2357) is available in a VSSOP-10 package. The dual-channel version features fully independent circuits to minimize crosstalk and completely eliminate mutual interference. Both versions are rated for an extended operating temperature range of -40°C to +125°C.

Applications

• Video processing
• Ultrasound
• Optical networks, tunable lasers
• Photodiode transimpedance amplifiers
• Active filters
• High-speed integrators
• ADC input buffers
• DAC output amplifiers
• Barcode scanners
• Communications

Key features

• Unity-gain bandwidth: 250MHz
• Bandwidth: 100MHz GBW
• High slew rate: 150V/μs
• Low noise: 6.5nV/√Hz
• Rail-to-rail I/O
• High output current: >100mA
• Excellent video performance: differential gain: 0.02%, differential phase: 0.09°
• 0.1dB gain flatness: 40MHz
• Low input bias current: 3pA
• Quiescent current: 4.9mA
• Thermal shutdown
• Supply voltage range: 2.5V to 5.5V
• Shutdown IQ<6μA
• Miniature package
• Use OPA357 with WEBENCH Power Designer to create custom designs
