TokmasDatasheet (PDF)

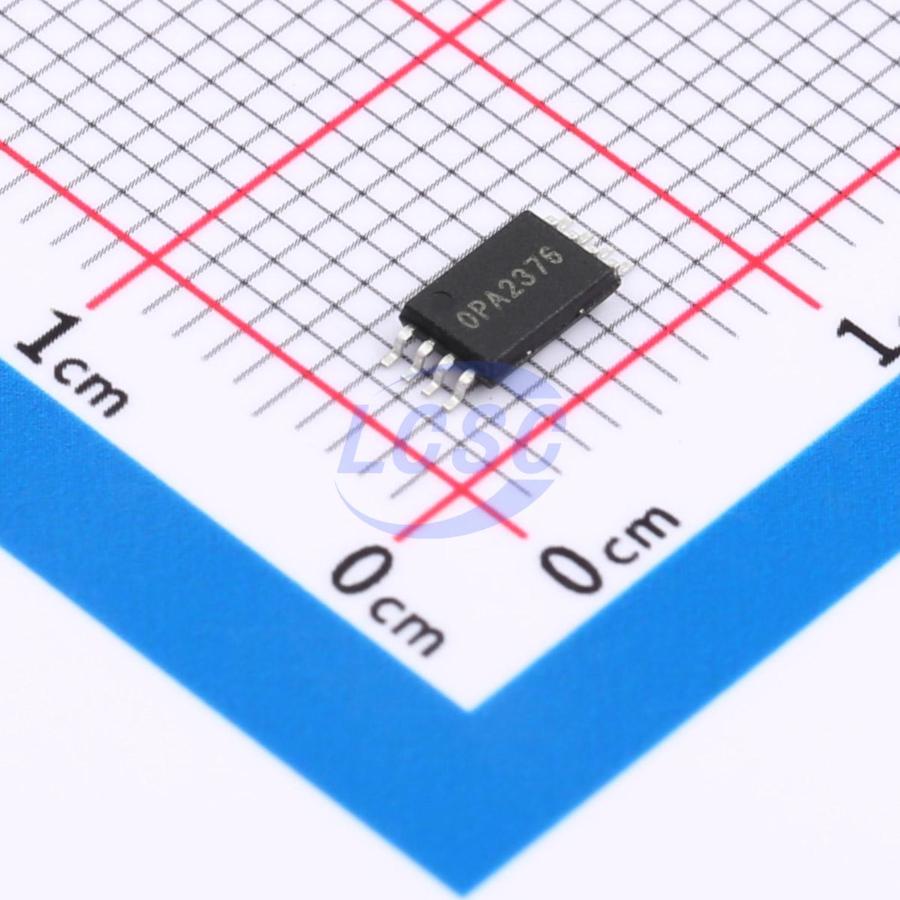

OPA2376
55mA 2 3.5mV 9V/us 1pA 65dB 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-8ROHS CompliantActive
11MHz CMOS Rail-to-Rail IO Opamps
- Manufacturer
- Tokmas
- Manufacturer part #
- OPA2376
- Store part #
- C7470935
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,175 in stock
#C7470935
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.56 | ₹112.80 |
| 50+ | ₹19.58 | ₹979.00 |
| 150+ | ₹18.31 | ₹2,746.50 |
| 500+ | ₹16.99 | ₹8,495.00 |
| 2,500+ | ₹16.27 | ₹40,675.00 |
| 4,000+ | ₹15.85 | ₹63,400.00 |
5 × ₹22.56
₹112.80
excl. GST
₹133.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OPA2376
₹112.80 for 5 + GST
Specifications
- Output Current
- 55mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 1.1mA
- Gain Bandwidth Product
- 11MHz
- Input Voltage Noise Density
- 8nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.112 g
Overview
Applications
- Sensors
- Active Filters
- Cellular and Cordless Phones
- Laptops and PDAs
- Audio
- Handheld Test Equipment
- Battery-Powered Instrumentation A/D Converters
Key features
- Single-Supply Operation from +2.1V~+5.5V
- Rail-to-Rail Input / Output
- Gain-Bandwidth Product: 11MHz (Typ)
- Low Input Bias Current: 1pA (Typ)
- Low Offset Voltage: 3.5mV (Max)
- High Slew Rate: 9V/μs
- Settling Time to 0.1% with 2V Step: 0.3μs
- Low Noise: 8nV/√Hz @10kHz
- Quiescent Current: 1.1mA per Amplifier (Typ)
- Operating Temperature: -40°C~+125°C
