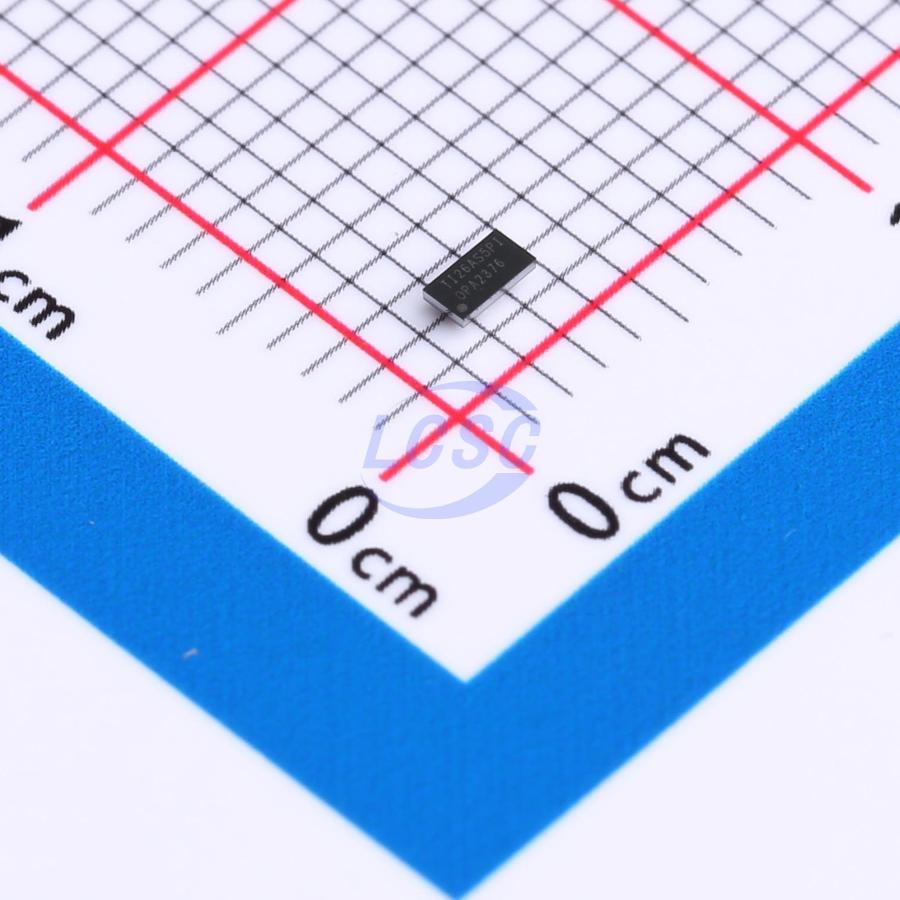

OPA2376AIYZDR

30mA 2 5uV 2V/us 90dB 0.2pA 760uA 5.5MHz Rail-to-Rail Input, Rail-to-Rail Output DSBGA-8 Instrumentation, Op Amps, Buffer Amps RoHS

DSBGA-8ROHS3 CompliantActive

OPAx376 Low-Noise, Low Quiescent Current, Precision Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA2376AIYZDR
Store part #: C2057799
Package / case: DSBGA-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,698 in stock

#C2057799

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹393.30	₹393.30
10+	₹339.10	₹3,391.00
30+	₹305.28	₹9,158.40
100+	₹270.59	₹27,059.00
500+	₹254.76	₹1,27,380.00
1,000+	₹248.04	₹2,48,040.00

Quantity (min 1)

1 × ₹393.30

₹393.30

excl. GST

₹464.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA2376AIYZDR

₹393.30 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 2V/us
Input Offset Current(Ios): 0.2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 260nV/℃
Quiescent Current: 760uA
Gain Bandwidth Product: 5.5MHz
Features: ESD protection;Reverse-phase input protection
Input Voltage Noise Density: 7.5nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The OPA376 family represents a new generation of low-noise operational amplifiers with e-trim™, offering outstanding dc precision and ac performance. Rail-to-rail input and output, low offset (25 μV, maximum), low noise (7.5 nV/√Hz), quiescent current of 950 μA (maximum), and a 5.5-MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range with excellent PSRR, making it attractive for applications that run directly from batteries without regulation. The OPA376 (single version) is available in MicroSIZE SC70-5, SOT-23-5, and SOIC-8 packages. The OPA2376 (dual) is offered in the DSBGA-8, VSSOP-8, and SOIC-8 packages. The OPA4376 (quad) is offered in a TSSOP-14 package. All versions are specified for operation from -40°C to +125°C.
