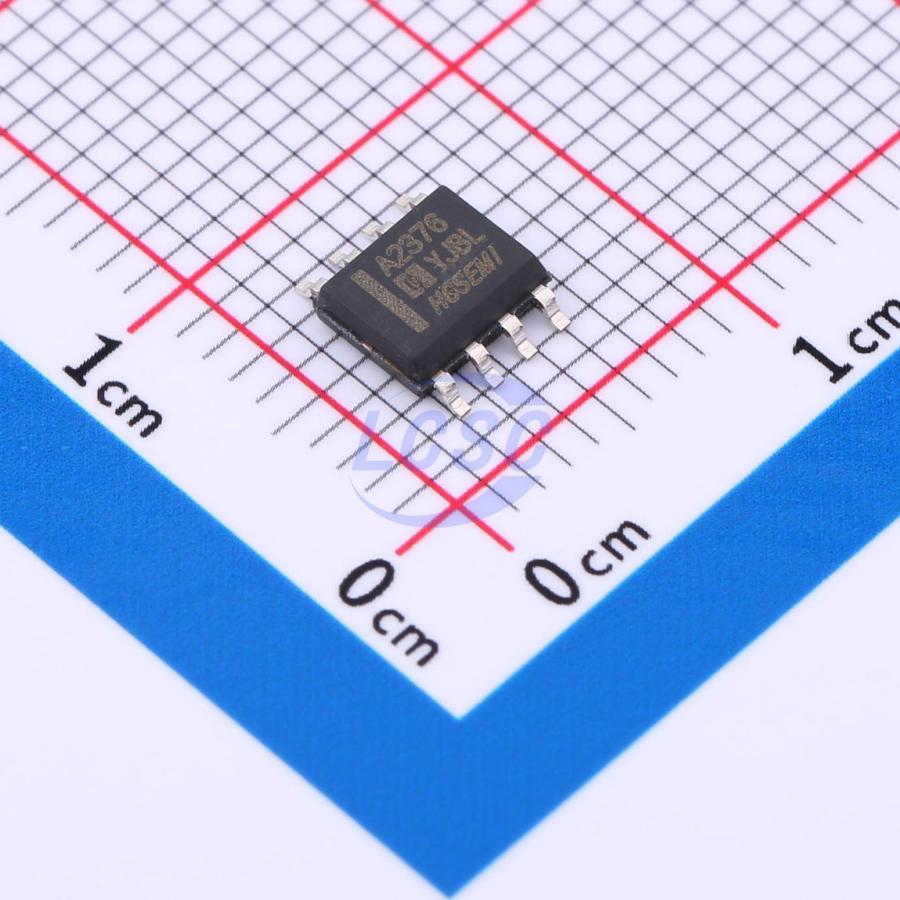

OPA2376M/TR

30mA 30uV 2.5V/us 20pA 110dB 550uA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8L Instrumentation, Op Amps, Buffer Amps

SOP-8LRoHSActive

OPAx376 series of single-supply operation, low bias current and zero-drift CMOS operational amplifiers

Manufacturer: HGSEMI
Manufacturer part #: OPA2376M/TR
Store part #: C2902513
Package / case: SOP-8L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,519 in stock

#C2902513

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
1+	₹68.89	₹68.89
10+	₹54.11	₹541.10
30+	₹47.81	₹1,434.30
100+	₹39.99	₹3,999.00
500+	₹36.51	₹18,255.00
1,000+	₹34.35	₹34,350.00

Quantity (min 1)

1 × ₹68.89

₹68.89

excl. GST

₹81.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2376M/TR

₹68.89 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Vos - Input Offset Voltage: 30uV
Slew Rate: 2.5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 550uA
Gain Bandwidth Product: 4.5MHz
Features: EMI filtering/RF suppression;Zero drift / auto-zero
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.225 g
