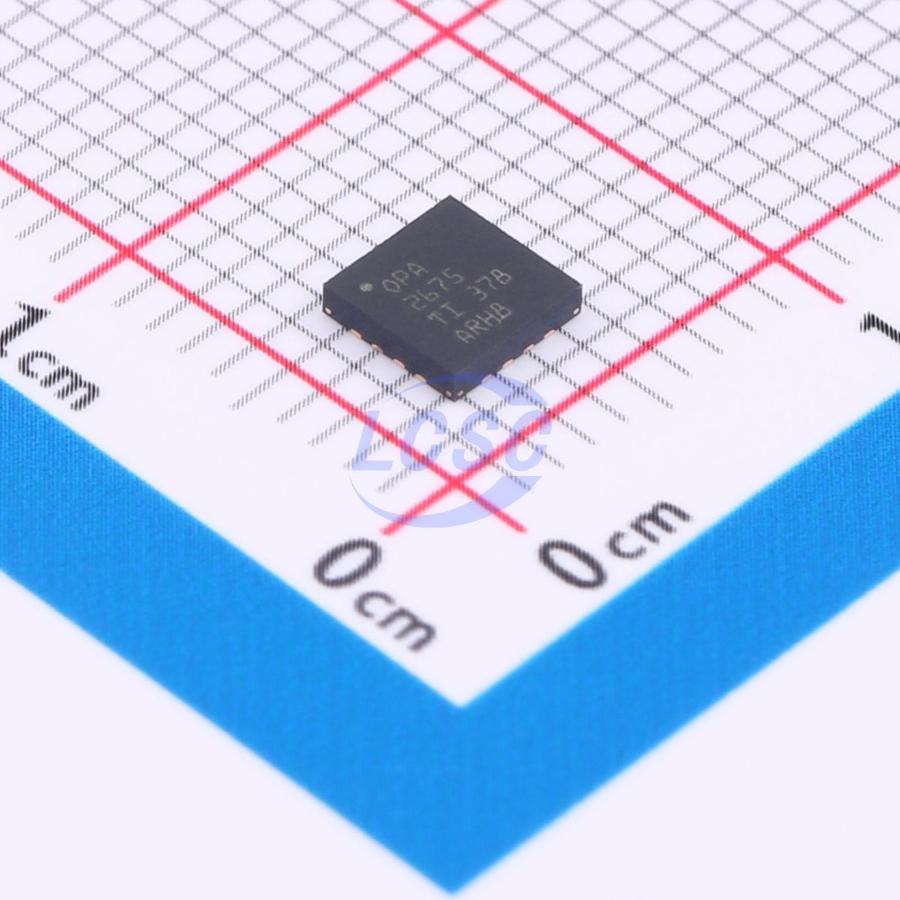

OPA2675RGVR

The OPA2675 provides the high output current and low distortion required for power line modem drivers and test and measurement applications. The OPA2675 operates from a 4.5 V to 13 V supply voltage, drawing a low quiescent current of 16.5 mA per channel to deliver a very high 1000 mA output current. The OPA2675 supports the most demanding power line modem requirements with a specified minimum output current drive of 850 mA (at 25°C). The device includes power control features to minimize system power consumption. Two logic control lines enable four quiescent power settings: full power, 75% bias power, 50% bias power, and an off mode with active off-line control that provides high impedance at the output pins even when a large signal is present. The two channels of the OPA2675 can be used independently as single op amps or configured as a differential input-to-differential output high-current line driver.

Applications

• Power line modem-matched I/Q channel amplifier
• Wideband video line driver
• ARB line driver
• High-capacitive load driver
• Ultrasonic piezoelectric driver

Key features

• Wideband operation: 340 MHz (G = 4 V/V)
• Unity-gain stable: 730 MHz (G = 1 V/V)
• High output current: ±1000 mA
• Active off mode during TDMA events
• Adjustable power dissipation modes:
• Full bias mode: 16.5 mA/channel
• 75% bias mode: 12.5 mA/channel
• 50% bias mode: 8.5 mA/channel
• Off mode: 2.4 mA/channel
• Dual supply voltage range: ±2.5 V to ±6.5 V
• Single supply voltage range: 4.5 V to 13 V
• High slew rate: 3500 V/µs
• Thermal protection circuit
• Output current limiting (±1.3 A)
