TIDatasheet (PDF)

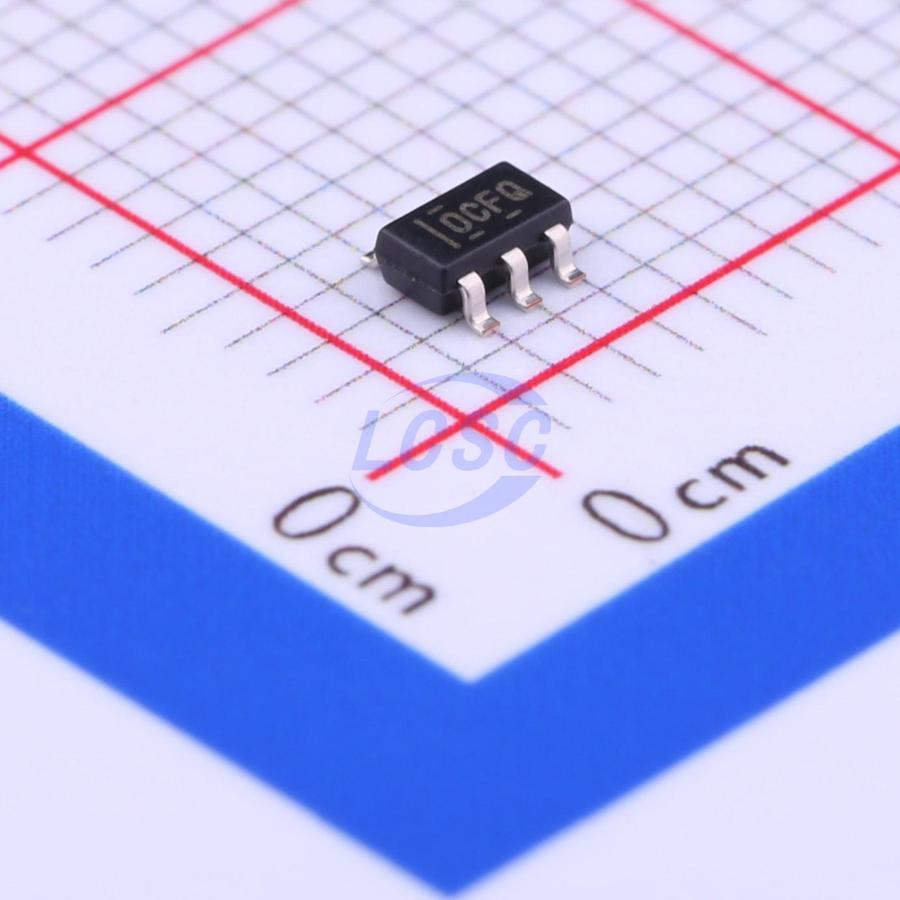

OPA330AIDBVR
5mA 1 8uV 0.16V/us 115dB 200pA 21uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
CMOS OPERATIONAL AMPLIFIERS Zero-Drift Series
- Manufacturer
- TI
- Manufacturer part #
- OPA330AIDBVR
- Store part #
- C38649
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,444 in stock
#C38649
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.05 | ₹132.05 |
| 10+ | ₹113.18 | ₹1,131.80 |
| 30+ | ₹103.86 | ₹3,115.80 |
| 100+ | ₹94.54 | ₹9,454.00 |
| 500+ | ₹88.91 | ₹44,455.00 |
| 1,000+ | ₹86.09 | ₹86,090.00 |
1 × ₹132.05
₹132.05
excl. GST
₹155.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA330AIDBVR
₹132.05 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 8uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Ib - Input Bias Current
- 200pA
- Input Offset Voltage Drift(Vos TC)
- 250nV/℃
- Quiescent Current
- 21uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The OPA330 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the Zerø-Drift family of amplifiers which use a proprietary auto-calibration technique to simultaneously provide low offset voltage (50μV max) and near-zero drift over time and temperature at only 35μA (max) of quiescent current. The OPA330 family features rail-to-rail input and output in addition to near flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. These devices are optimized for low-voltage operation as low as +1.8V (±0.9V) and up to +5.5V (±2.75V).
Applications
- BATTERY-POWERED INSTRUMENTS
- TEMPERATURE MEASUREMENTS
- TRANSDUCER APPLICATIONS
- ELECTRONIC SCALES
- MEDICAL INSTRUMENTATION
- HANDHELD TEST EQUIPMENT
- CURRENT SENSE
Key features
- UNMATCHED PRICE PERFORMANCE
- LOW OFFSET VOLTAGE: 50μV (max)
- ZERO DRIFT: ±0.25μV/°C (max)
- LOW NOISE: 1.1μVPP , 0.1Hz to 10Hz
- QUIESCENT CURRENT: 35μA (max)
- SUPPLY VOLTAGE: 1.8V to 5.5V
- RAIL-TO-RAIL INPUT/OUTPUT
- INTERNAL EMI FILTERING
- microSIZE PACKAGES: WCSP, SC70, QFN
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCS21871SN2T1G#C892877onsemi · TSOP-5-1.5mm | onsemi | TSOP-5-1.5mm | 90 | ₹143.76 · 90 in stock | View |
| OPA330AIDBVT#C2057564TI · SOT-23-5 | TI | SOT-23-5 | 13 | ₹134.67 · 13 in stock | View | |
 | HGV333M5/TR#C507202HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 15 | ₹53.42 · 15 in stock | View |
 | TLV333IDBVT#C75209TI · SOT-23-5 | TI | SOT-23-5 | 19 | ₹66.14 · 19 in stock | View |
 | OPA333AIM5/TR#C565345HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,055 | ₹55.51 · 2,055 in stock | View |
