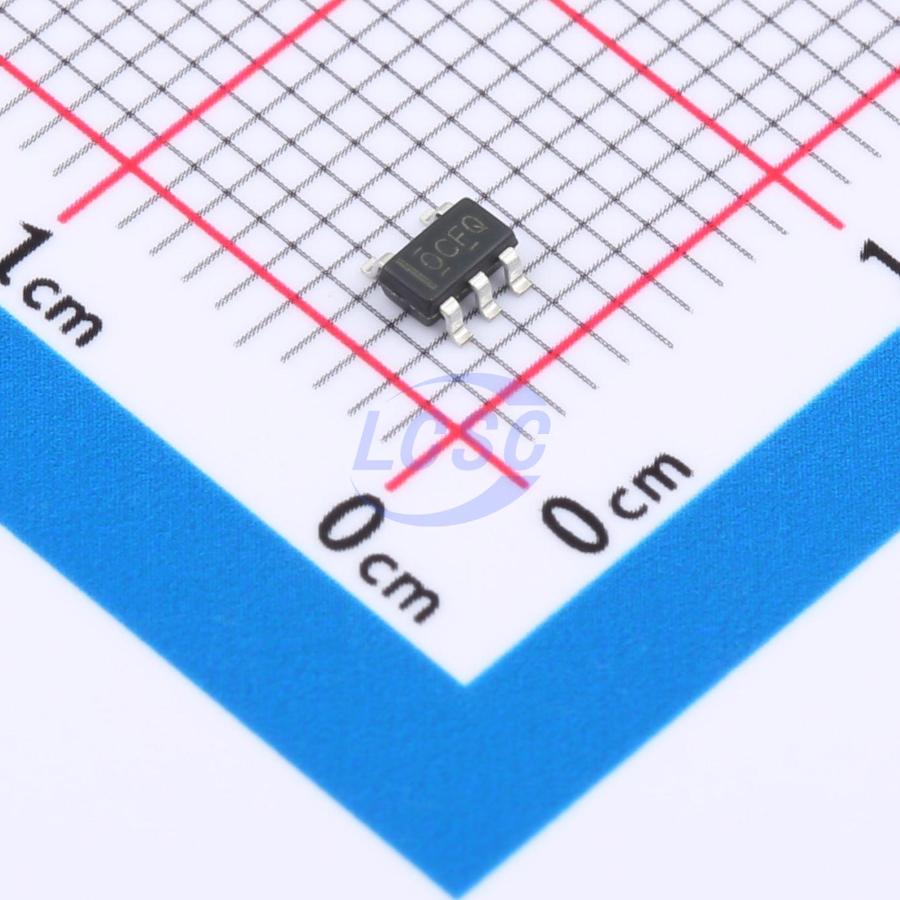

OPA330AIDBVR-MS

21mA 1 1uV 0.1V/us 1pA 135dB 13.5uA 550kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: OPA330AIDBVR-MS
Store part #: C22462560
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,379 in stock

#C22462560

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹42.38	₹42.38
10+	₹36.73	₹367.30
30+	₹34.56	₹1,036.80
100+	₹31.51	₹3,151.00
500+	₹30.20	₹15,100.00
1,000+	₹29.56	₹29,560.00

Quantity (min 1)

1 × ₹42.38

₹42.38

excl. GST

₹50.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA330AIDBVR-MS

₹42.38 for 1 + GST

Specifications

Output Current: 21mA
Number of Channels: 1
Vos - Input Offset Voltage: 1uV
Slew Rate: 0.1V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -25℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 135dB
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 13.5uA
Gain Bandwidth Product: 550kHz
Features: Zero drift / auto-zero;Reverse-phase input protection
Input Voltage Noise Density: 79.4nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.041 g

Overview

The OPAx330 series of CMOS operational amplifiers use a proprietary auto - calibration technique to simultaneously provide very low offset voltage (±4μV, maximum) and near - zero drift over time and temperature. These miniature, high - precision, low quiescent current (13.5uA) amplifiers offer high impedance inputs that have a common - mode range 100mV beyond the rails, and rail - to - rail output that swings within 50mV of the rails. Single or dual supplies as low as 1.8V (±0.9V) and up to 5.5V (+2.75V) can be used. These devices are optimized for low voltage, single - supply operation. The OPA330AIDBVR - MS (single version) is available in the 5 - pin SOT23, while the OPA2330AIDR - MS (dual version) is available in the 8 - pin SOIC and packages. All versions are specified for operation from - 25°C to 125°C.

Applications

Temperature Sensors
Active Filtering
Transducers
Electronic Scales
Temperature Measurements
Medical Instrumentation
Battery - Powered Instruments
Handheld Test Equipment

Key features

Input Offset Voltage: ±1μV (Typ)
Zero Drift: 0.01μV/°C (Typ)
0.01Hz - 10Hz Noise: 1.5μVpp
Quiescent Current: 13.5μA
High Open - Loop Gain: 150dB
Single or Dual Supply Operation
Supply Voltage: 1.8V to 5.5V
