TIDatasheet (PDF)

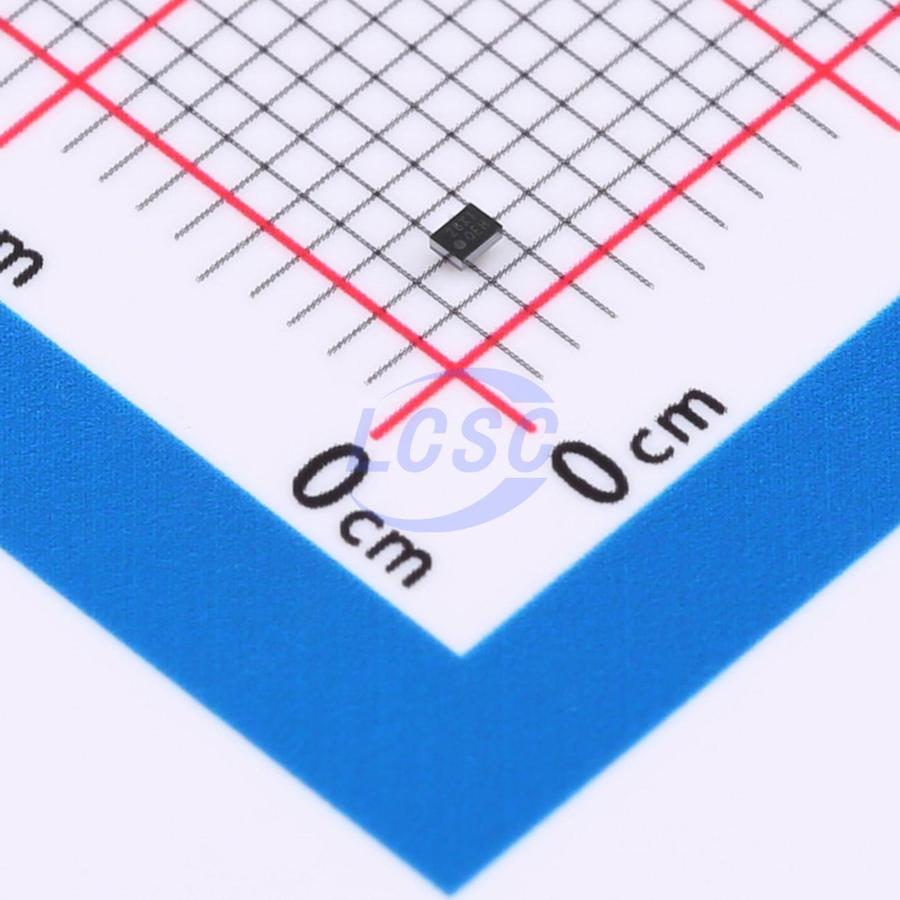

OPA330AIYFFR
5mA 1 8uV 0.16V/us 115dB 200pA 21uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output DSBGA-5 Instrumentation, Op Amps, Buffer Amps RoHS
DSBGA-5ROHS3 CompliantActive
OPAx330 CMOS Operational Amplifiers Zero-Drift Series
- Manufacturer
- TI
- Manufacturer part #
- OPA330AIYFFR
- Store part #
- C543010
- Package / case
- DSBGA-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,965 in stock
#C543010
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹127.50 | ₹127.50 |
| 10+ | ₹103.39 | ₹1,033.90 |
| 30+ | ₹91.45 | ₹2,743.50 |
| 100+ | ₹79.50 | ₹7,950.00 |
| 500+ | ₹72.33 | ₹36,165.00 |
| 1,000+ | ₹68.64 | ₹68,640.00 |
1 × ₹127.50
₹127.50
excl. GST
₹150.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA330AIYFFR
₹127.50 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 8uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 400pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Ib - Input Bias Current
- 200pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 21uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.013 g
Overview
The OPA330 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the Zero-Drift family of amplifiers which use a proprietary autocalibration technique to simultaneously provide low offset voltage (50-μV maximum) and near-zero drift over time and temperature at only 35 μA (maximum) of quiescent current. The OPA330 family features rail-to-rail input and output in addition to near-flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. These devices are optimized for low-voltage operation as low as 1.8 V (±0.9V) and up to 5.5 V (±2.75V).
Applications
- Battery-Powered Instruments
- Temperature Measurements
- Transducer Applications
- Electronic Scales
- Medical Instrumentation
- Handheld Test Equipment
- Current Sense
Key features
- Unmatched Price Performance
- Low Offset Voltage: 50 μV (Maximum)
- Zero Drift: 0.25 μV/°C (Maximum)
- Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
- Quiescent Current: 35 μA (Maximum)
- Supply Voltage: 1.8 V to 5.5 V
- Rail-to-Rail Input and Output
- Internal EMI Filtering
- microSize Packages: DSBGA, SC70, VQFN
