UMWDatasheet (PDF)

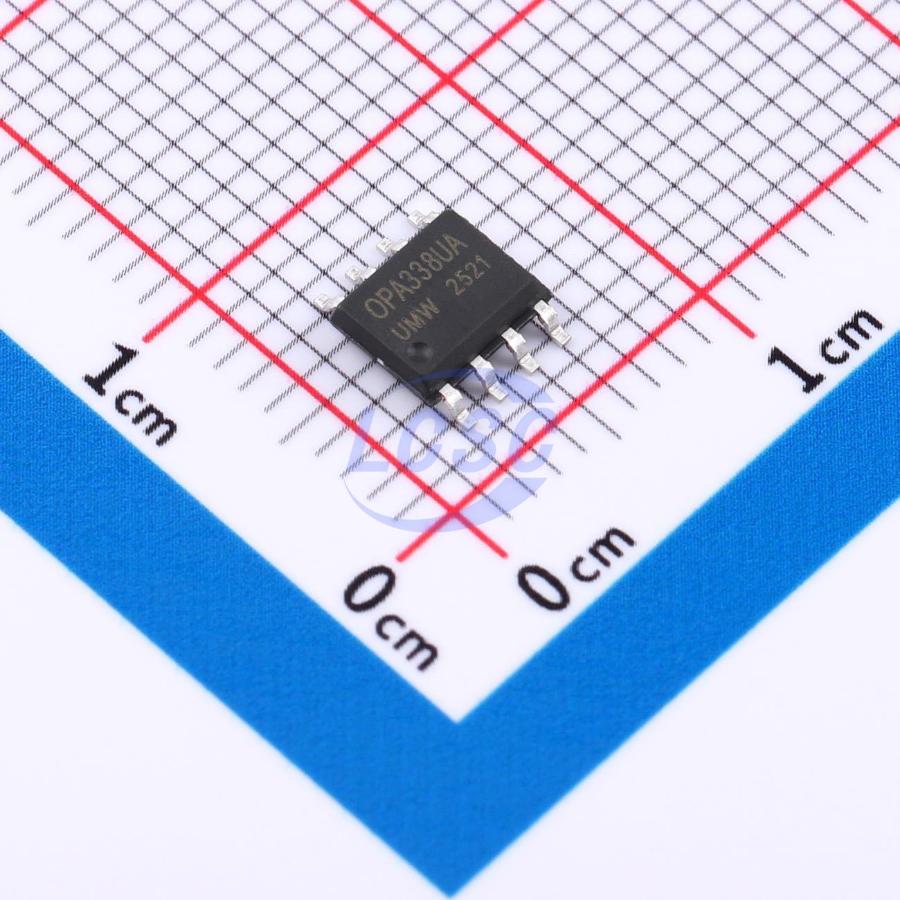

OPA338UA(UMW)
9mA 1 500uV 4.6V/us 90dB 0.2pA 12.5MHz 525uA Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Single-Supply CMOS Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- OPA338UA(UMW)
- Store part #
- C22365306
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,455 in stock
#C22365306
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.23 | ₹186.15 |
| 50+ | ₹29.25 | ₹1,462.50 |
| 150+ | ₹25.84 | ₹3,876.00 |
| 500+ | ₹21.56 | ₹10,780.00 |
| 2,500+ | ₹19.67 | ₹49,175.00 |
| 5,000+ | ₹18.54 | ₹92,700.00 |
5 × ₹37.23
₹186.15
excl. GST
₹219.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA338UA(UMW)
₹186.15 for 5 + GST
Specifications
- Output Current
- 9mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 4.6V/us
- Input Offset Current(Ios)
- 0.2pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 0.2pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 12.5MHz
- Quiescent Current
- 525uA
- Input Voltage Noise Density
- 26nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.186 g
Overview
The UMW OPA338 series rail-to-rail output CMOS op-amps are designed for low-cost and compact applications. This series offers low bias current, high-speed operation, high open-loop gain, and rail-to-rail output swing. They operate from a single supply as low as 2.5V with a quiescent current of only 525μA. In addition, the input common-mode voltage range includes ground, making them well-suited for single-supply operation. This series is optimized for gains of 5 or greater, easy to use, and free from the phase reversal and overload issues found in some other op-amps. Excellent performance is maintained even when the output swing reaches the specified limits. The dual-channel version features fully independent circuitry, ensuring minimal crosstalk and mutual interference even under overdrive or overload conditions.
Applications
- Battery-powered instruments
- Photodiode preamplifiers
- Medical instruments
- Test equipment
- Audio systems
- Consumer products
Key features
- Single-supply operation
- Rail-to-rail output swing
- FET input: max IB = 10 pA
- High speed: OPA337: 3 MHz, 1.2 V/μs (G = 1); OPA338: 12.5 MHz, 4.6 V/μs (G = 5)
- Operating voltage range: 2.5 V to 5.5 V
- High open-loop gain: 120 dB
- Low quiescent current: 525 μA/channel
- Available in single and dual versions
